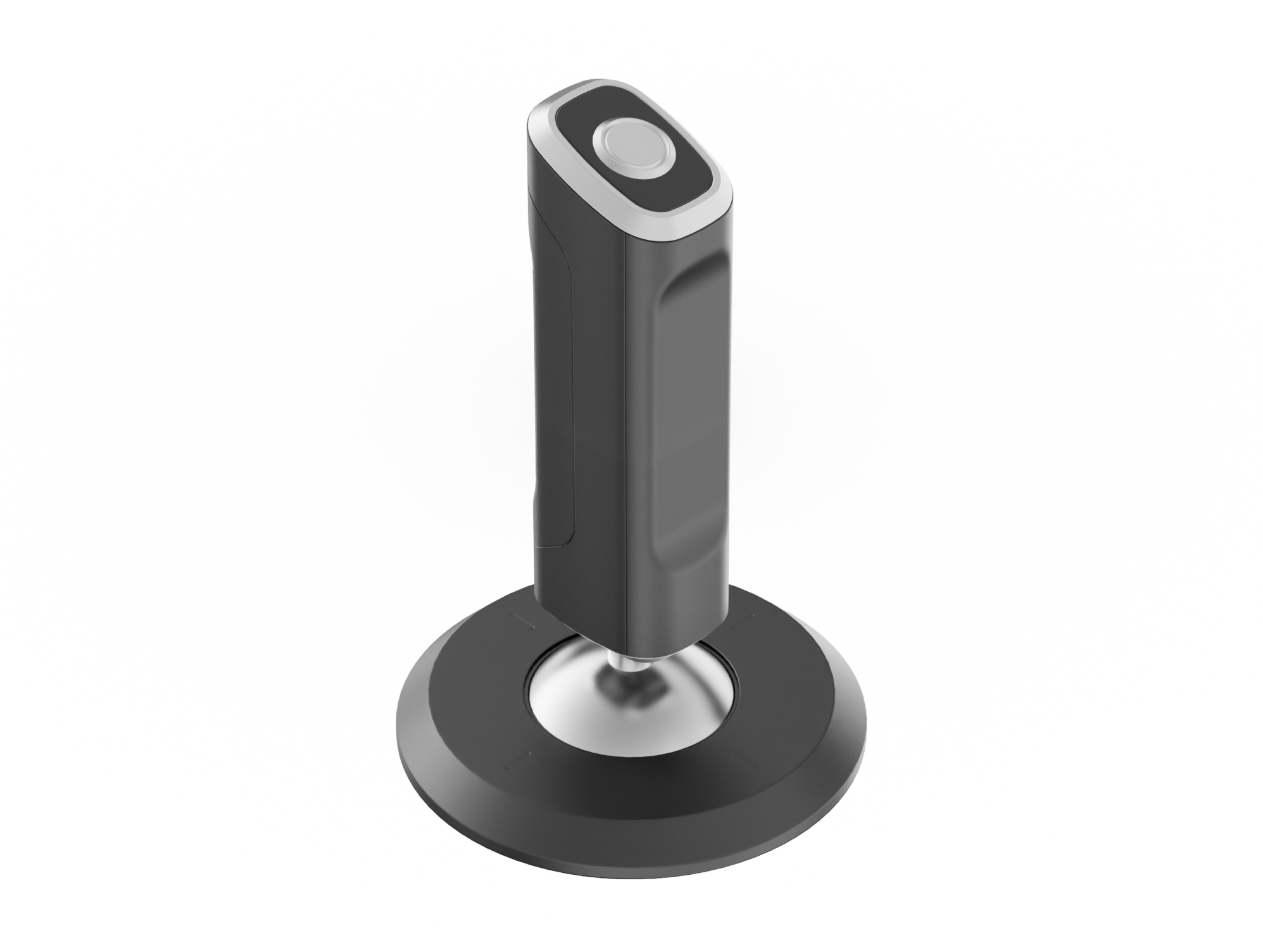

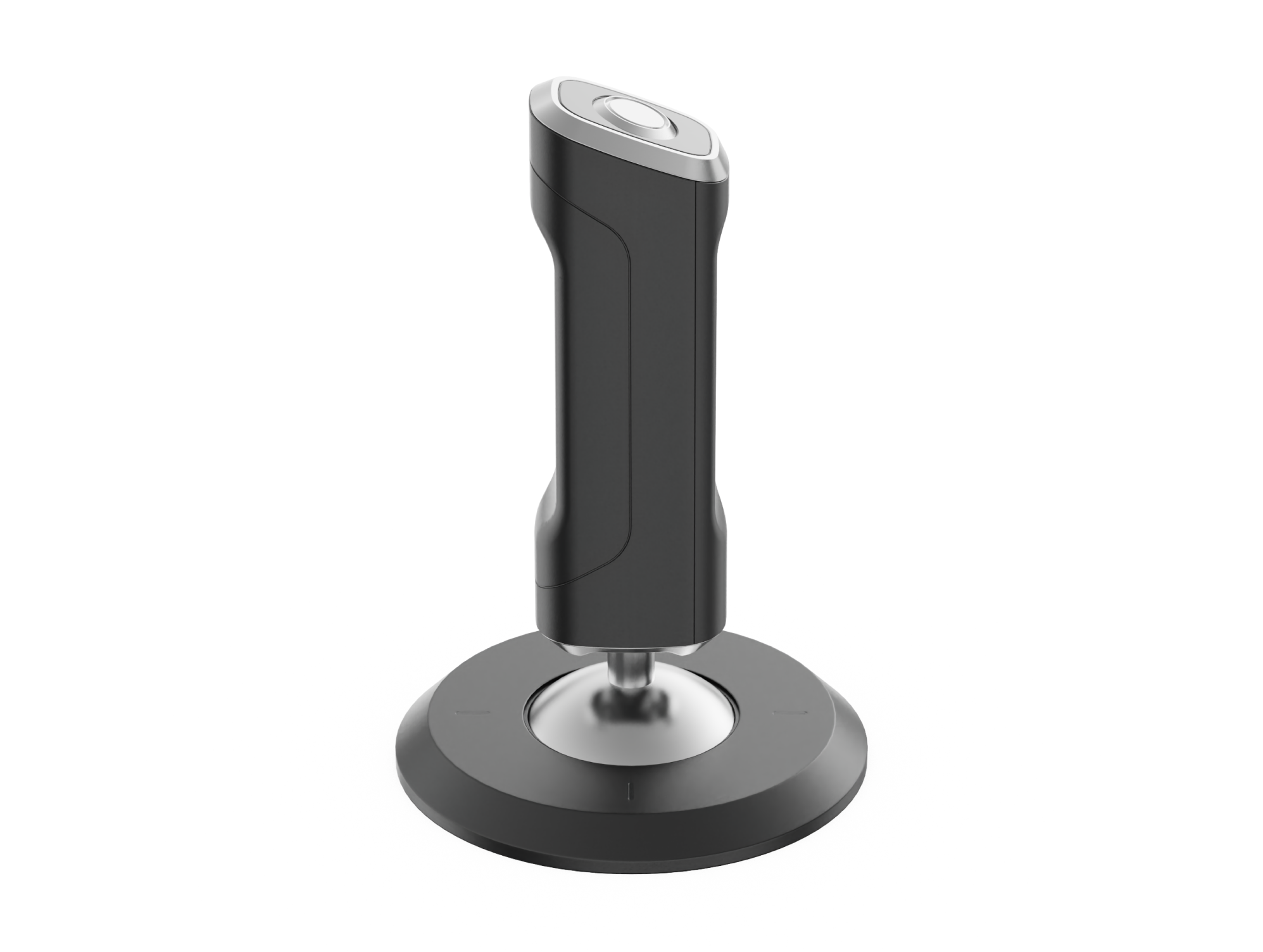

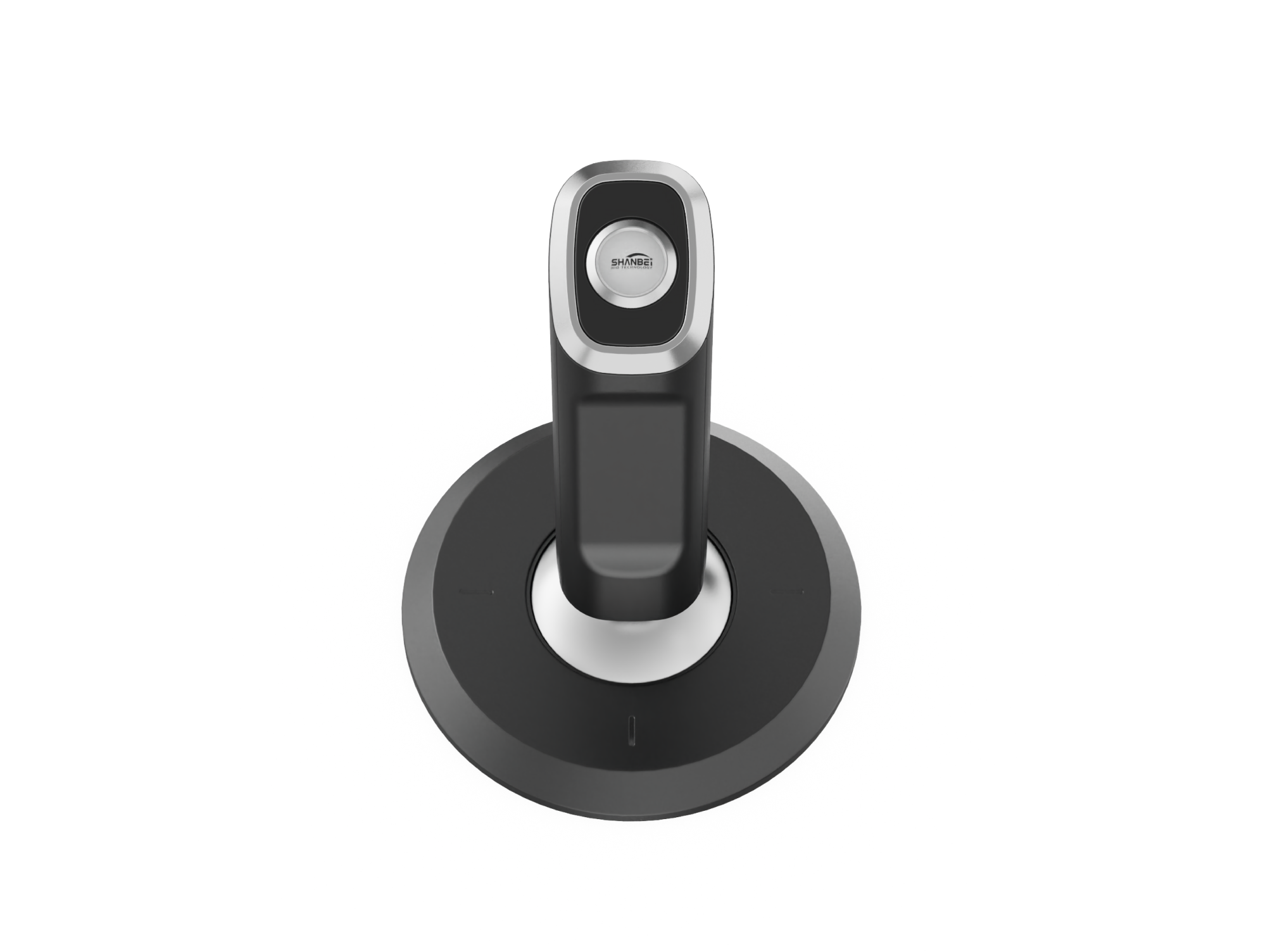

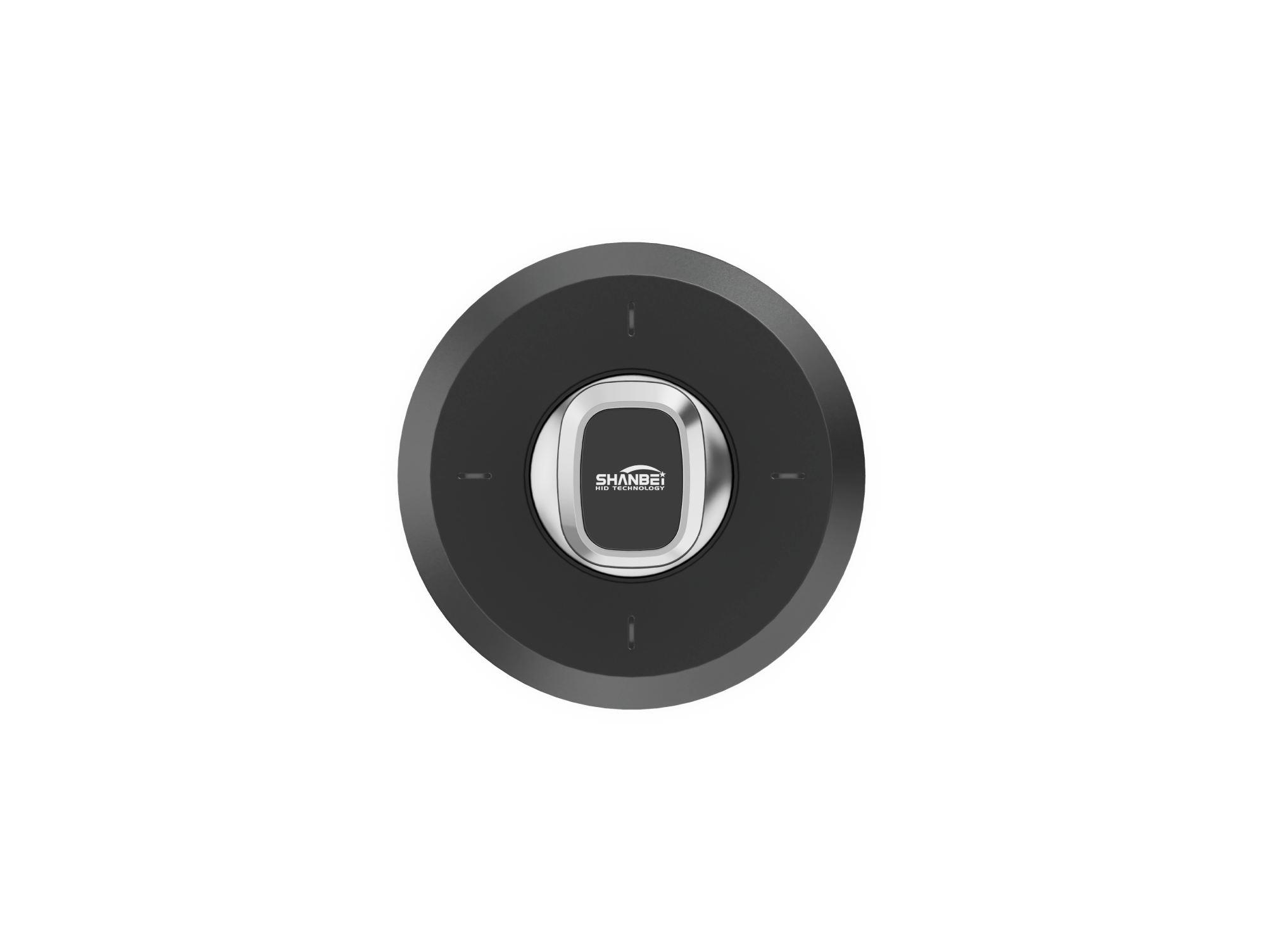

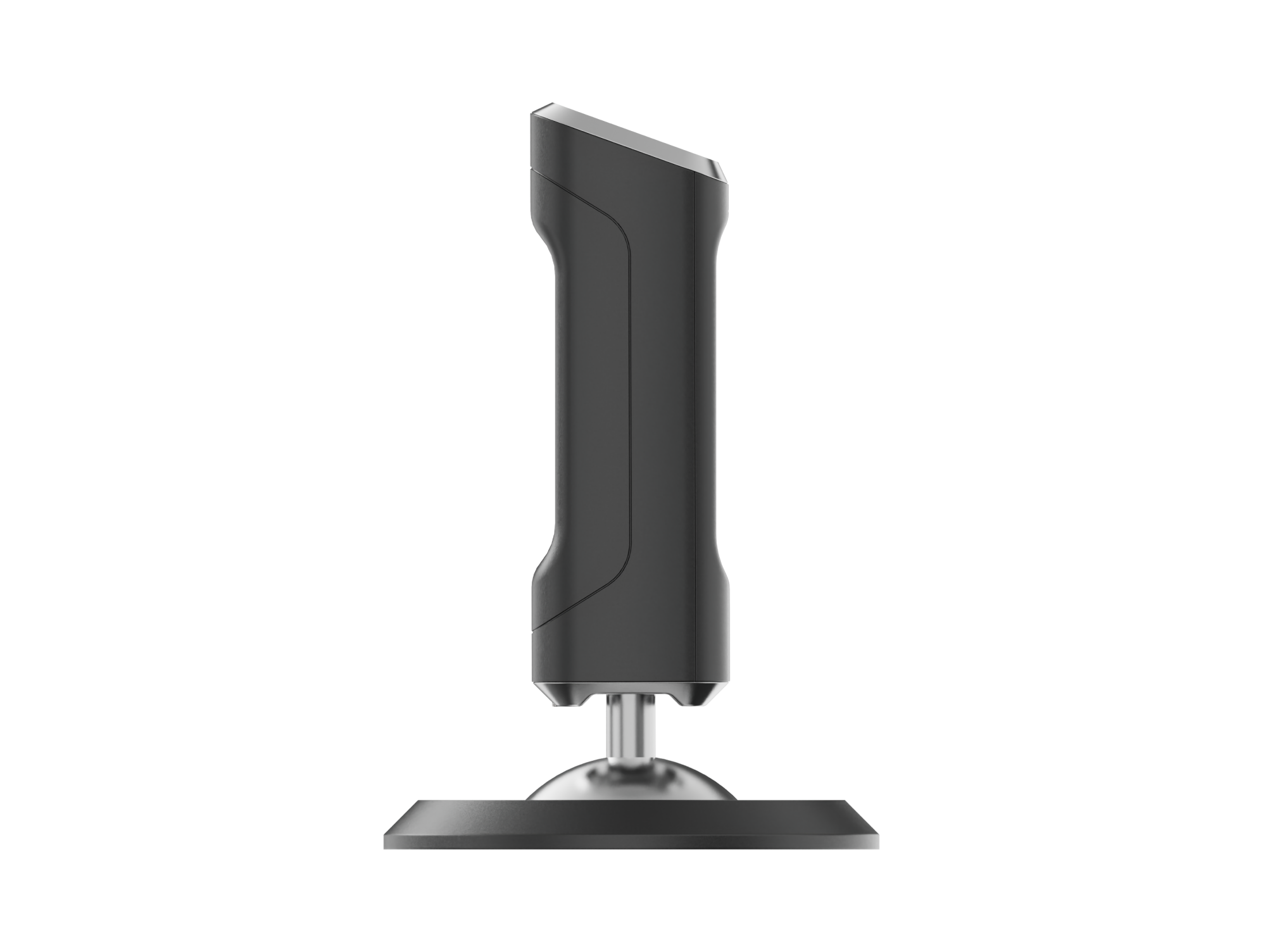

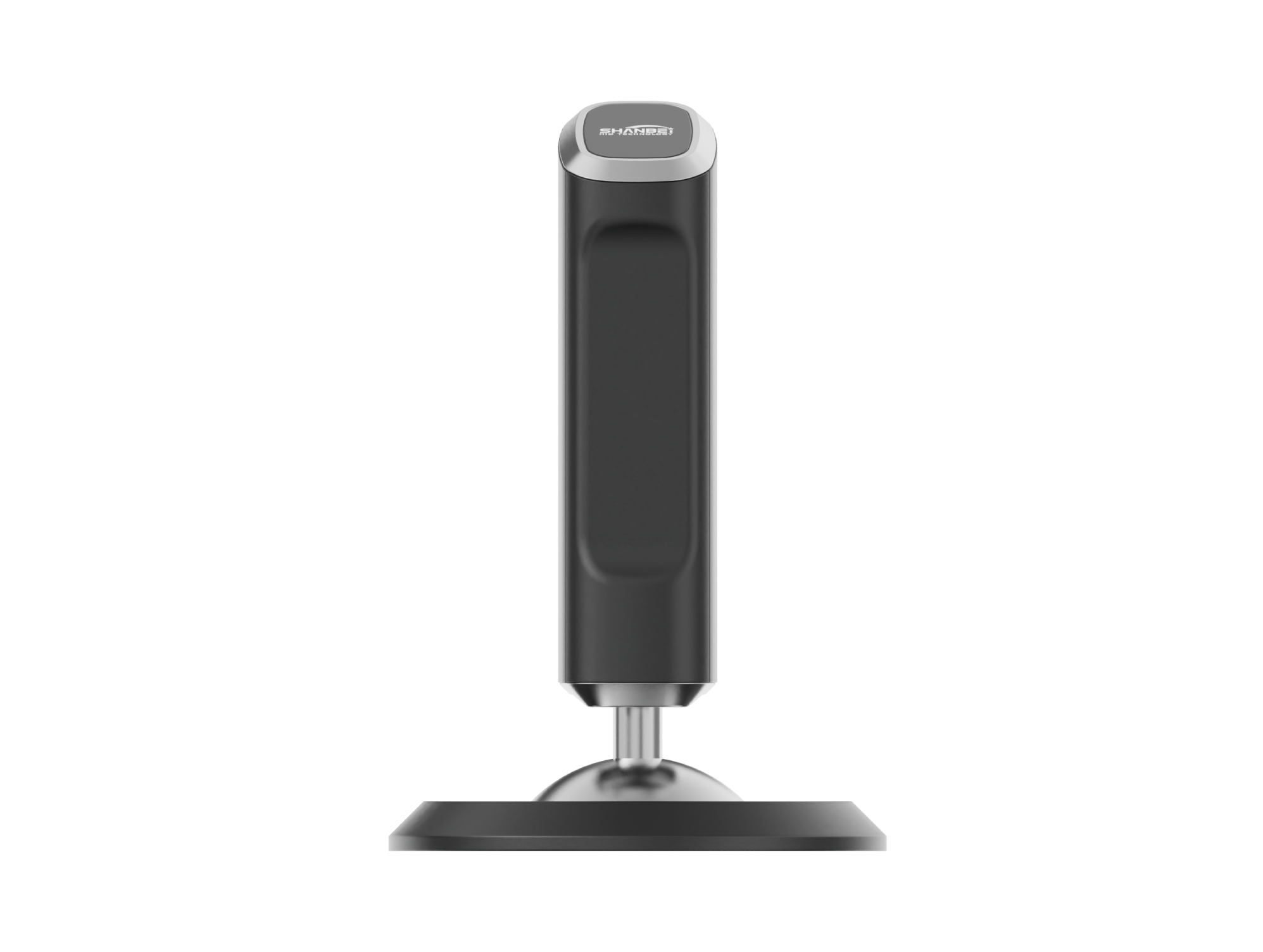

WLF-10H
Joystick
The WLF-10H is a newly designed multifunctional joystick that supports 1, 2, and 3-axis operations. The rotation ranges for the X-axis and Y-axis are 48 degrees each, while the Z-axis can rotate up to 180 degrees (without buttons).

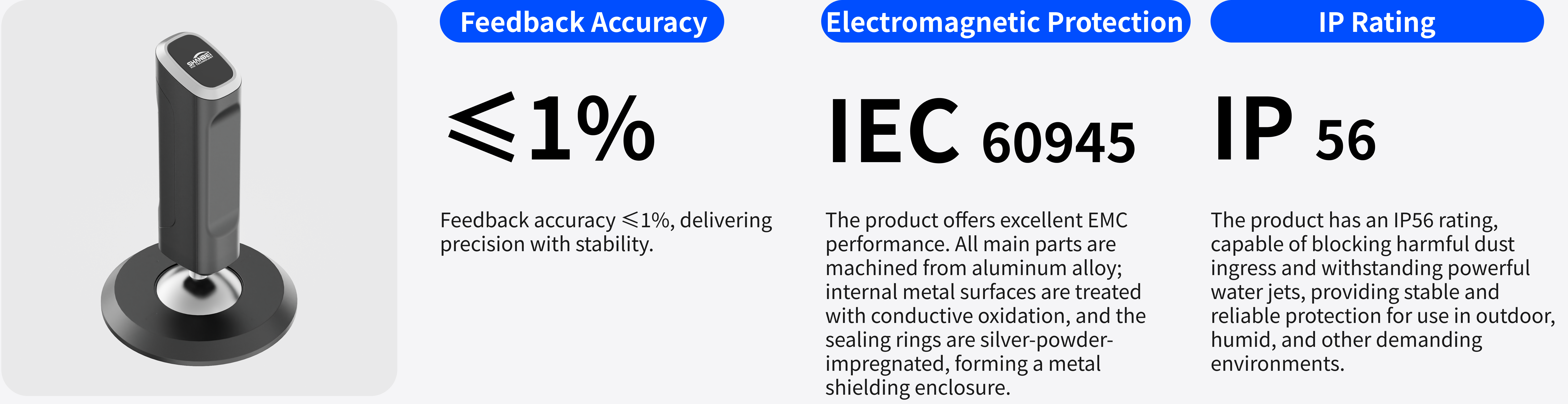

FEATURES
PARAMETER
-
Supply voltage24VDC
-
Operating Temperature-20~70℃
-
Feedback precision≤1%
-
Protection RatingIP56
OPTIONS
-
Direction of motionXYX+YX+Y+Z
-
Built-in switchNoYes
-
Automatic centeringNoYes
-
Button IntegrationNoYes
-

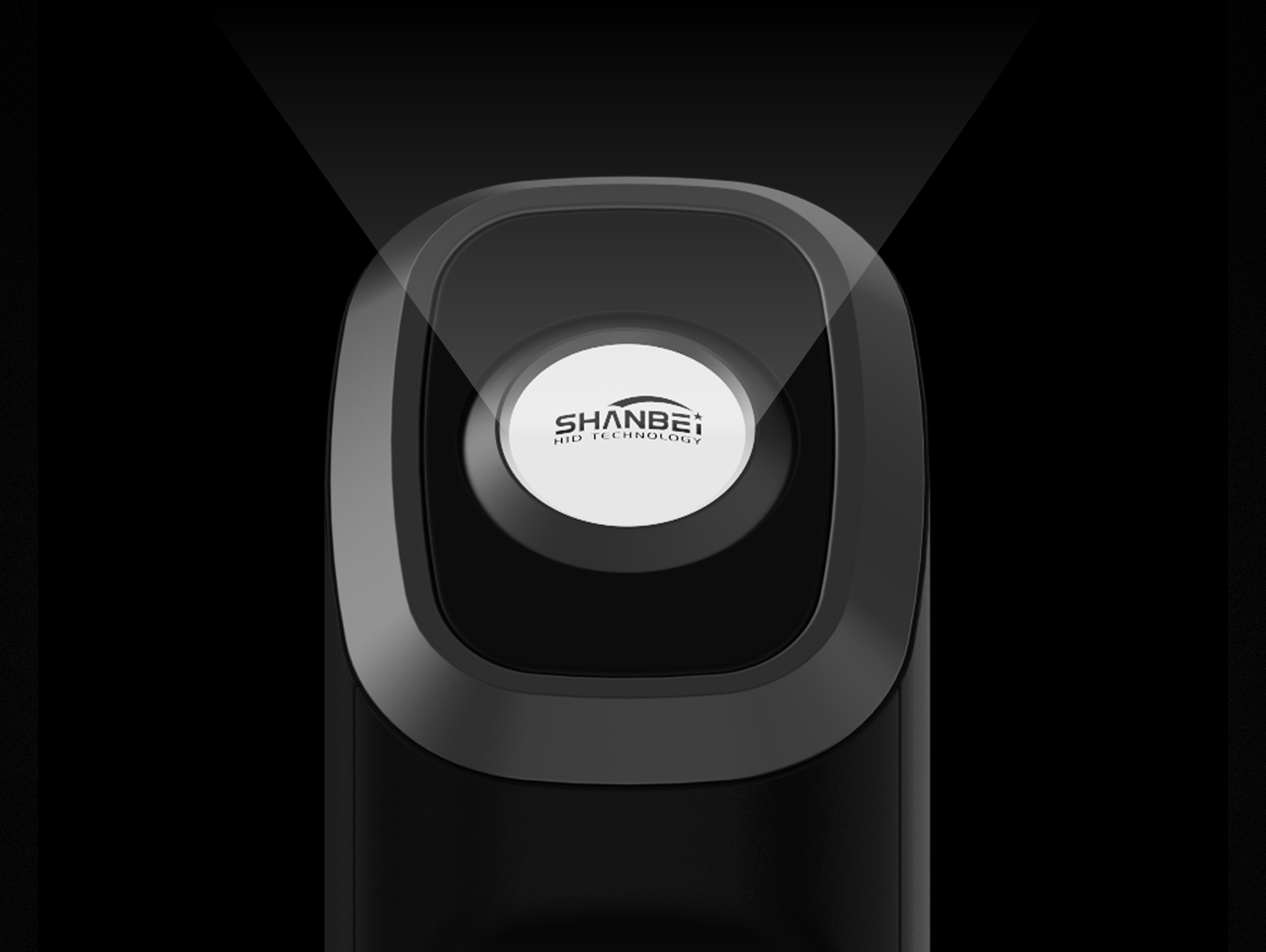

Backlit logo designNoYes
-
Output signalNon-contact Hall sensor
