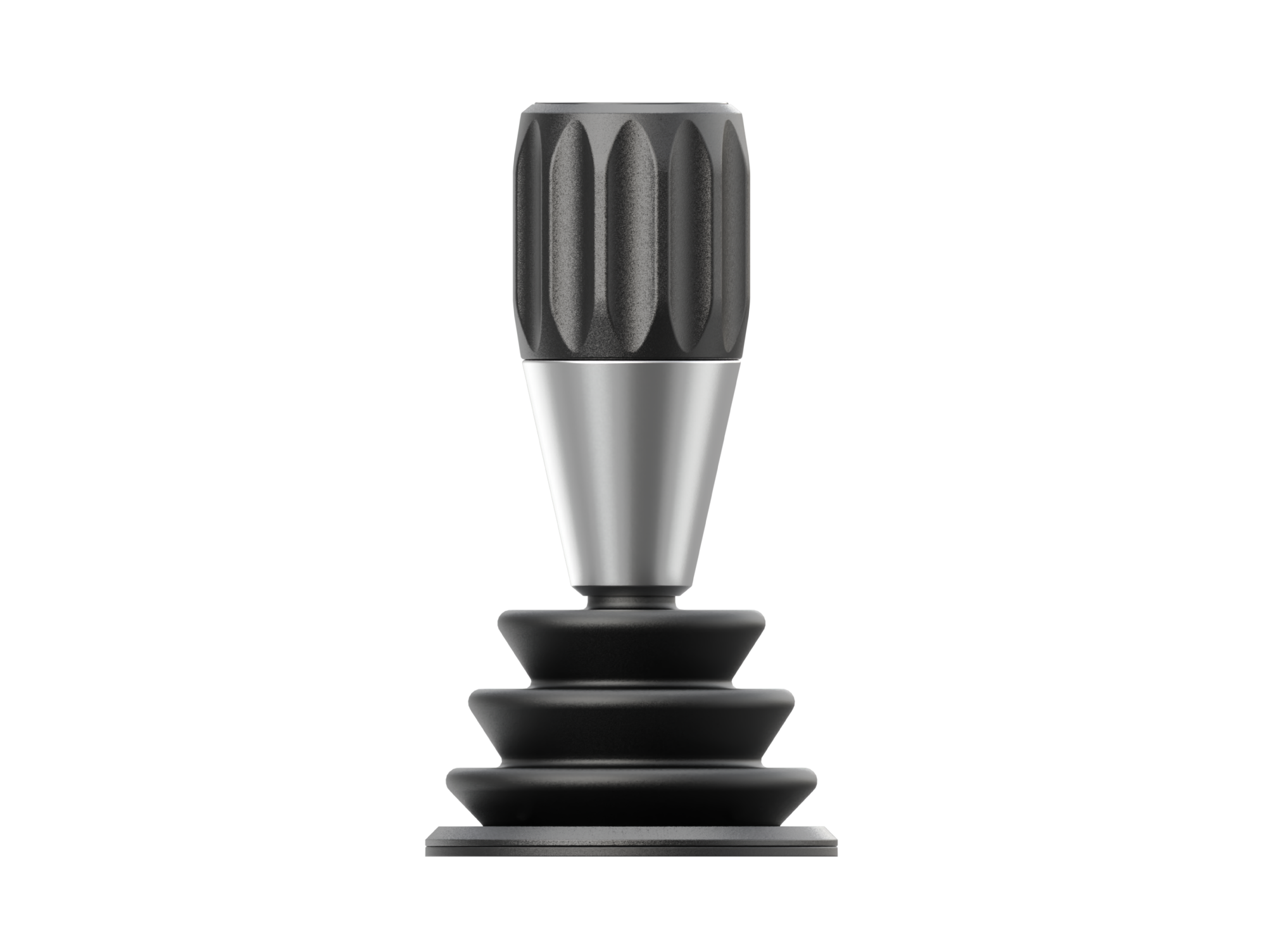

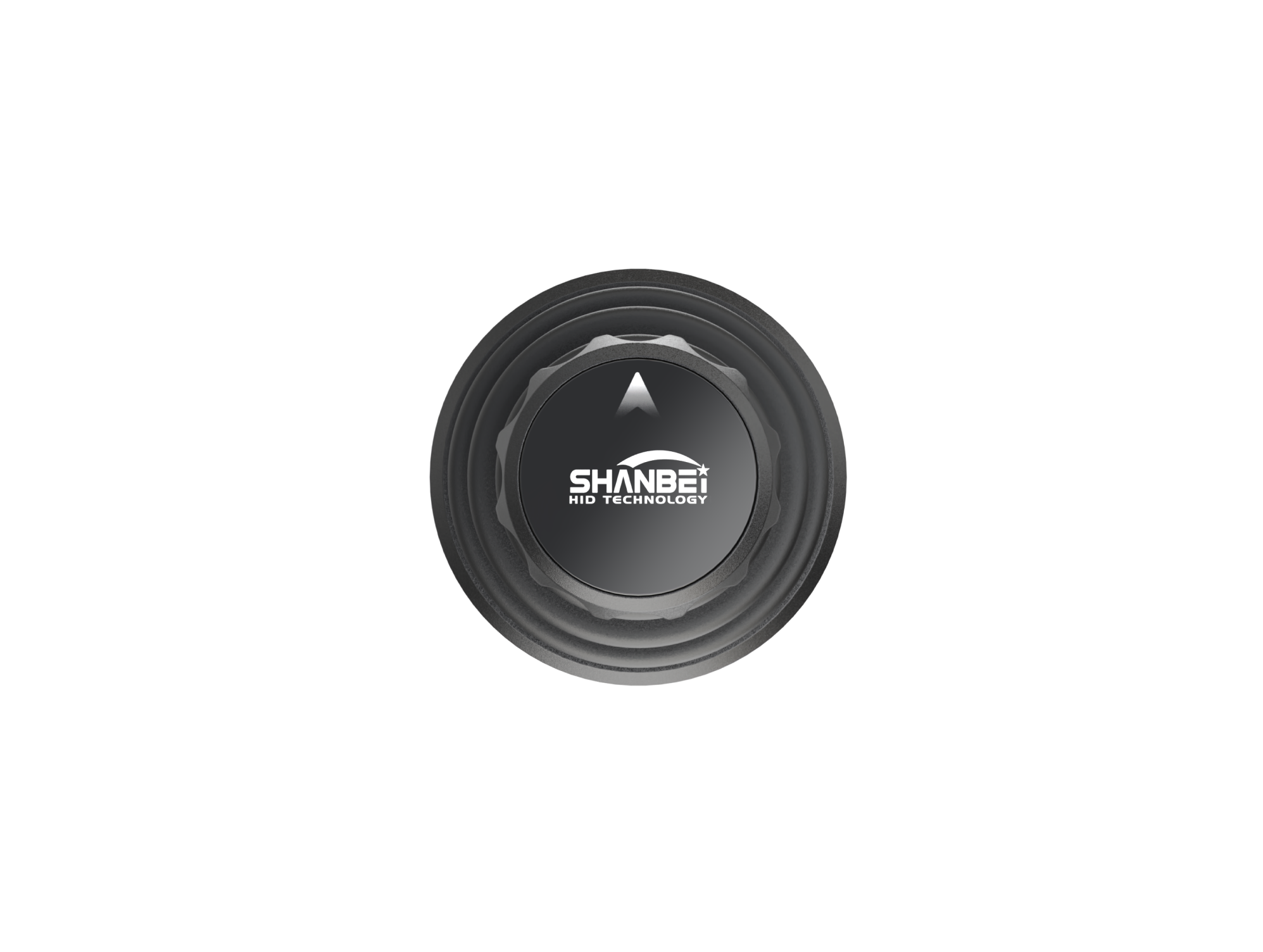

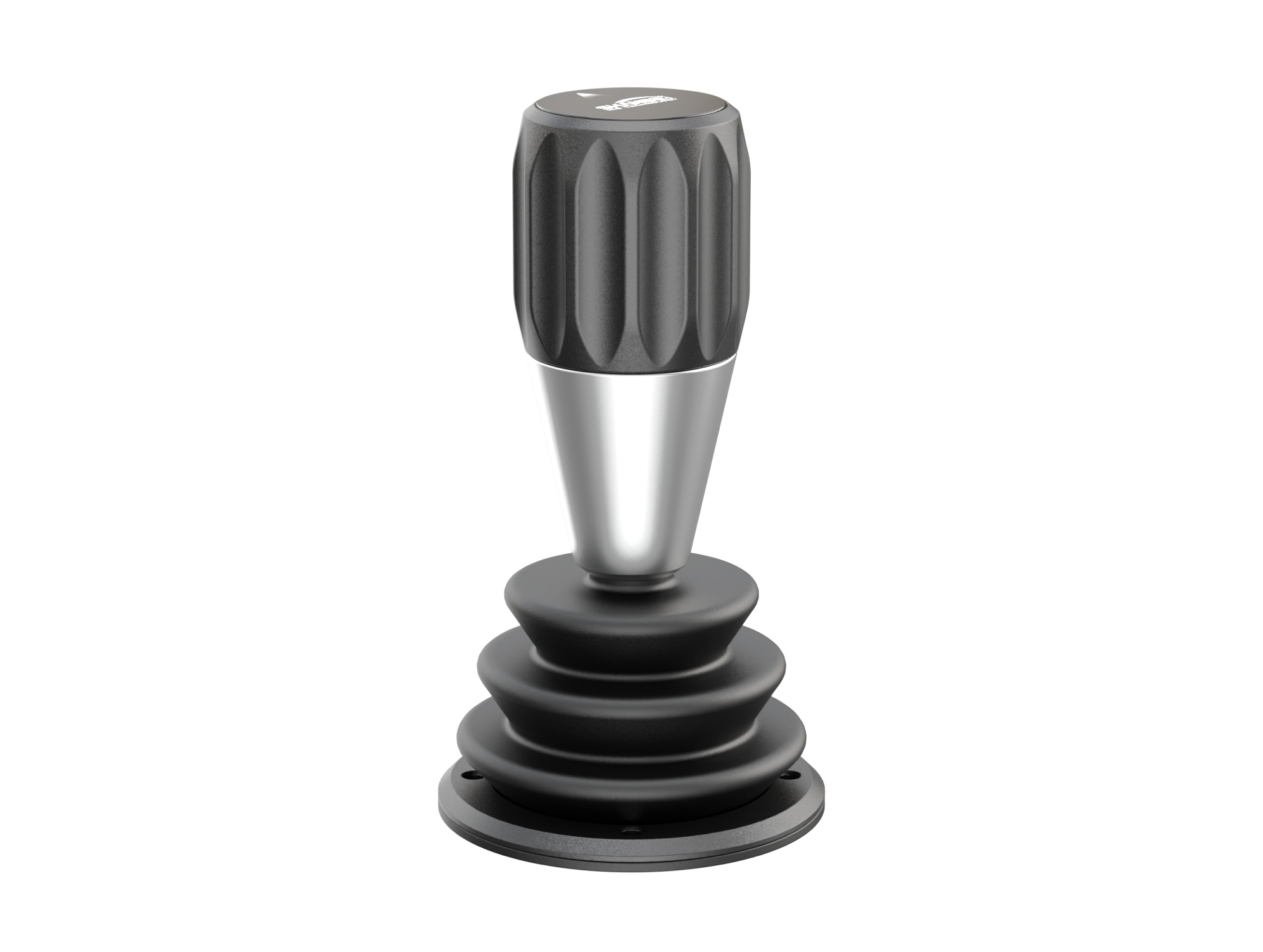

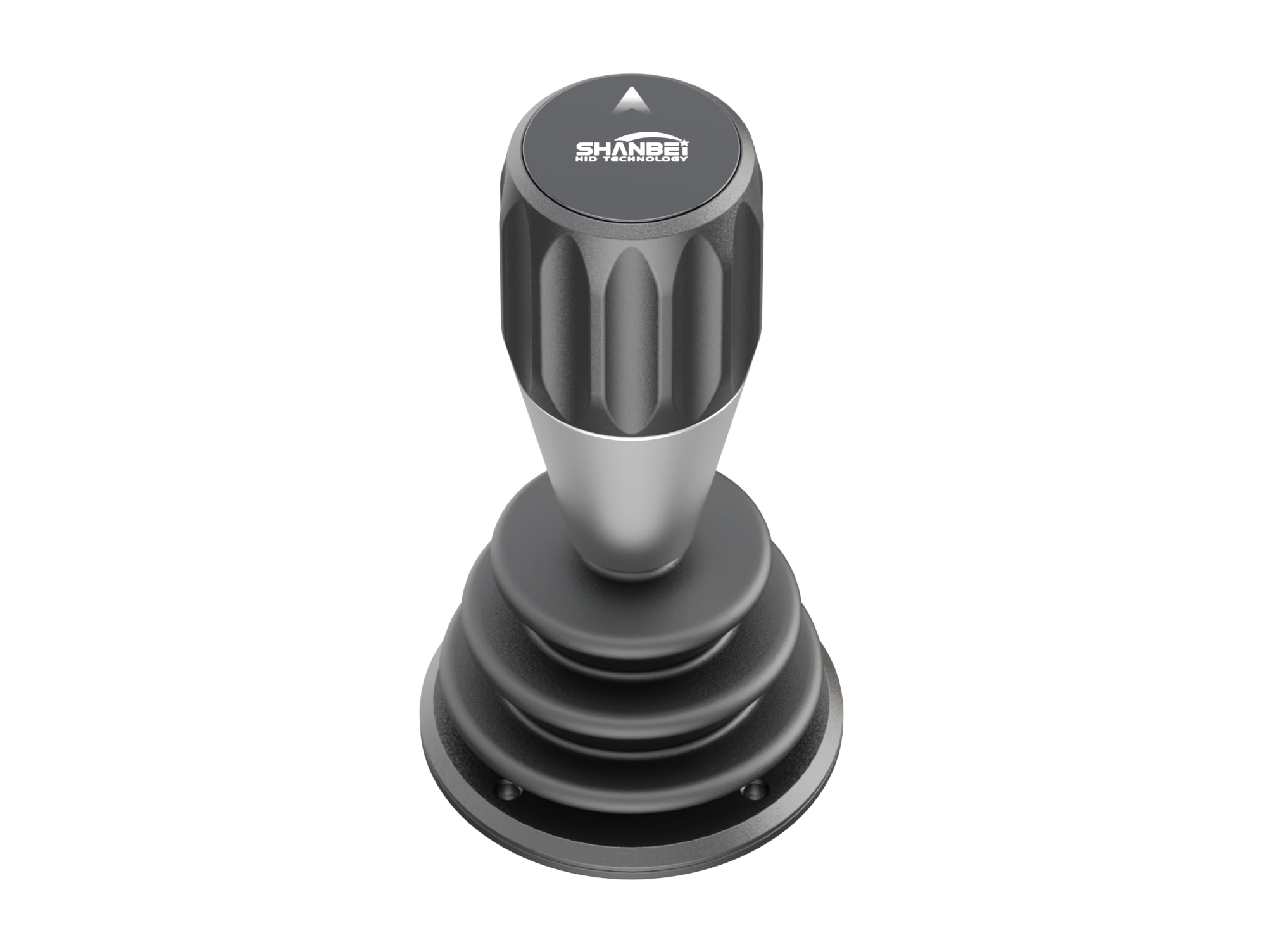

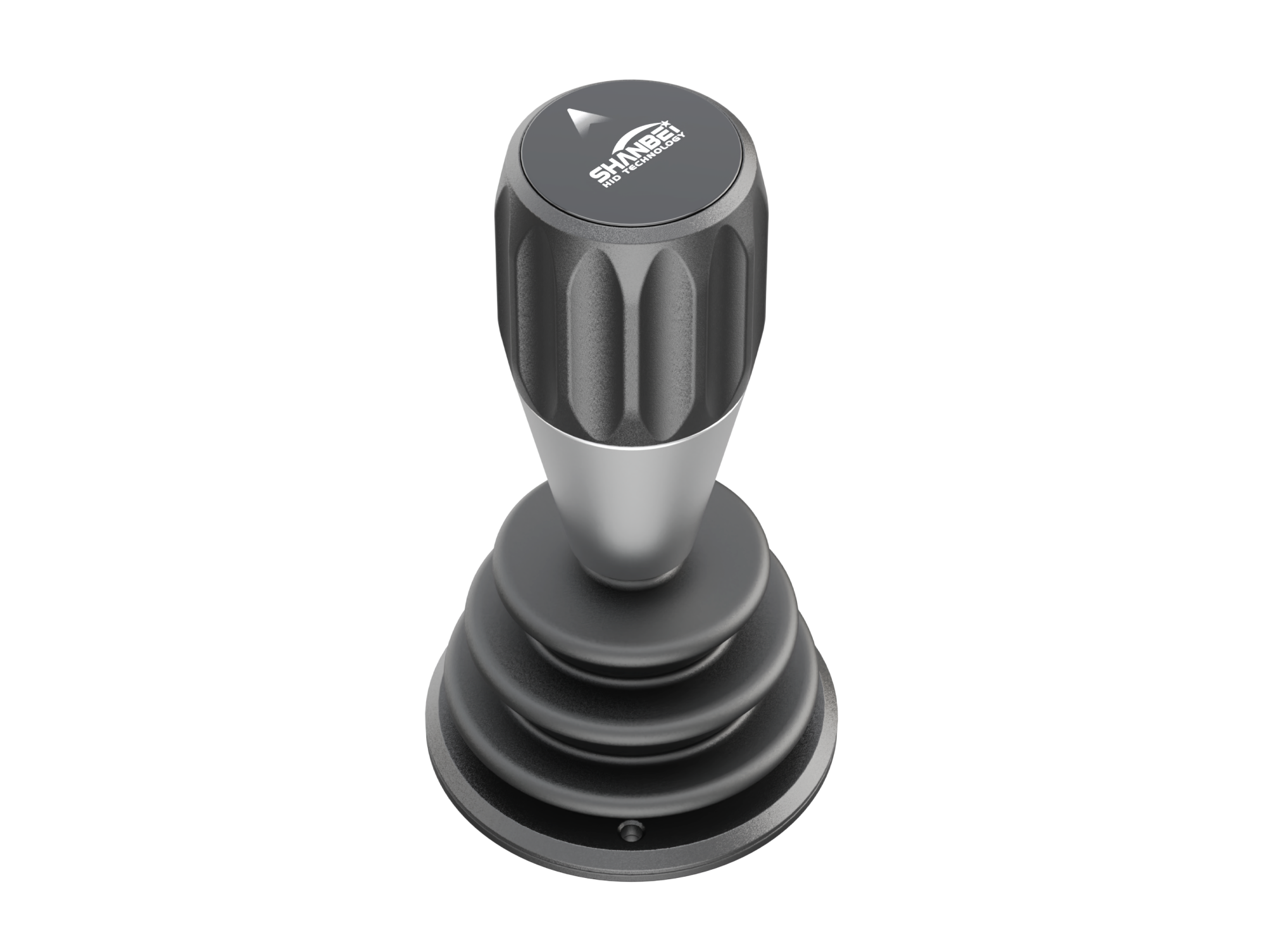

WLF-10P
Joystick
The WLF-10P is a multi-functional joystick supporting 1, 2, and 3-axis operations, with rotation ranges of 52 degrees for the X and Y axes, and 150 degrees for the Z axis.
FEATURES
PARAMETER
-
Supply voltage24VDC
-
Operating Temperature-20~70℃
-

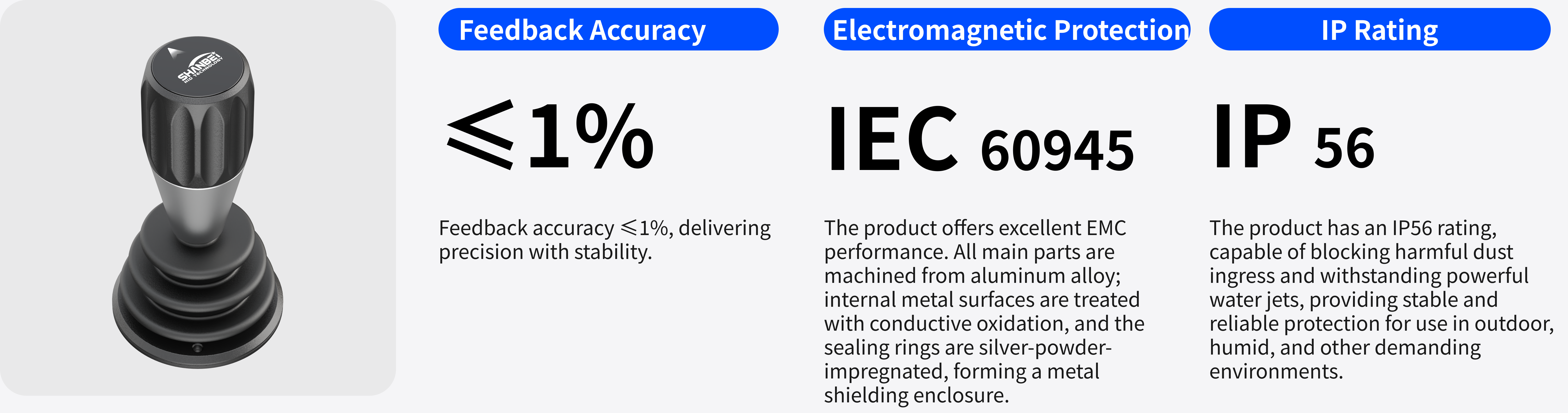

Feedback precision≤1%
-
Protection RatingIP56
OPTIONS
-
Direction of motionXYX+YX+Y+Z
-
Output signal5K Potentiometer
-
Built-in switchNoYes
-
Automatic centeringNoYes
