WLF-40
Rudder control

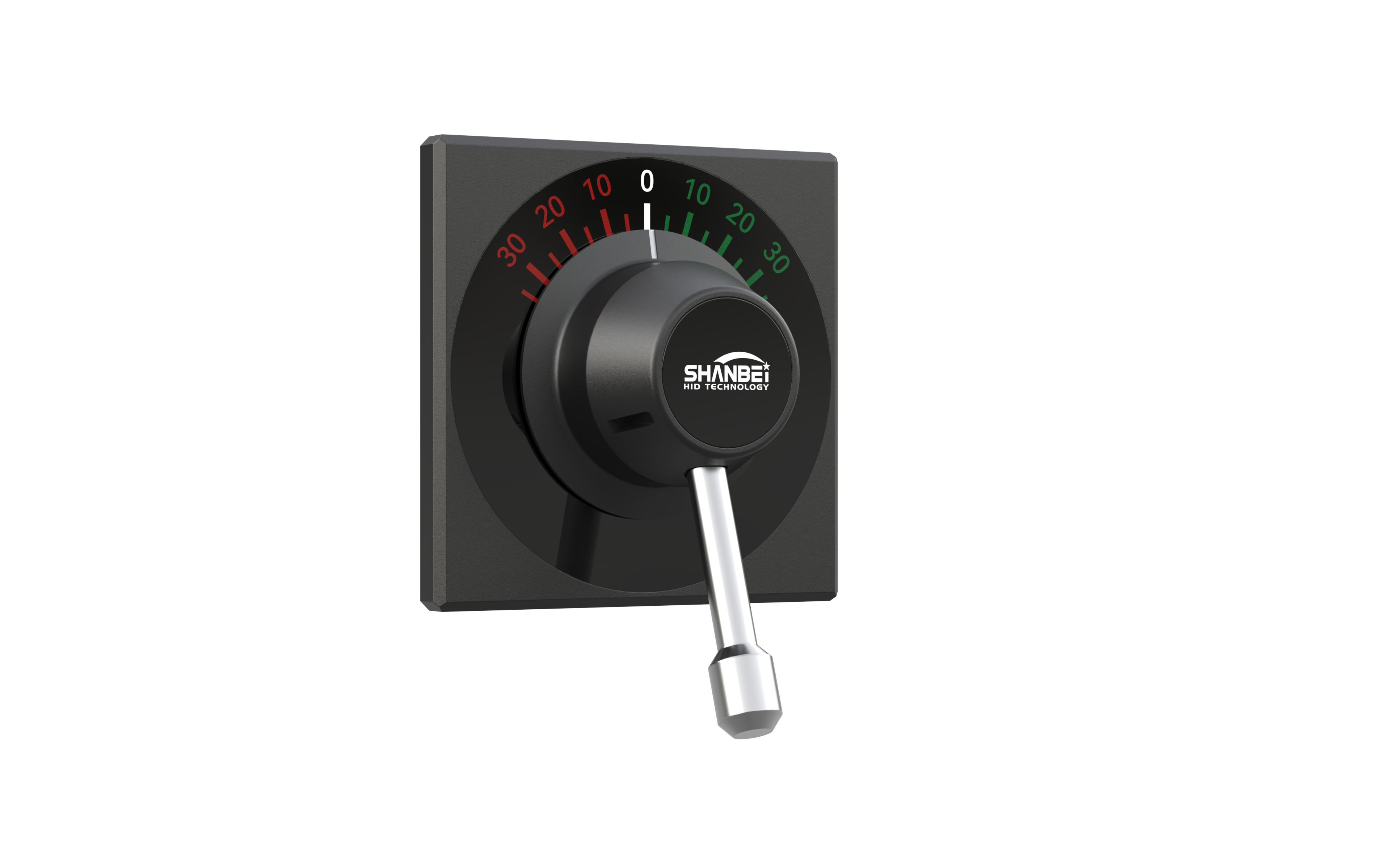

The WLF-40 mini rudder control lever is used for the servo control of the ship's steering system. It can send out rudder command values and is equipped with a potentiometer and a dial. Features include:
-Aluminum alloy housing, standard 5KΩ potentiom
FEATURES
PARAMETER
-
Supply voltage24VDC
-
Potentiometer5KΩ
-
Output accuracy≤1.0%
-
IP leverFront: IP56, Rear: IP20 (with protective cover IP44)
-
Weight0.8 to 1.5 kilograms (varies depending on configuration and type)
-
Test standardIEC60945
-
Operating temperature5℃~55℃
-

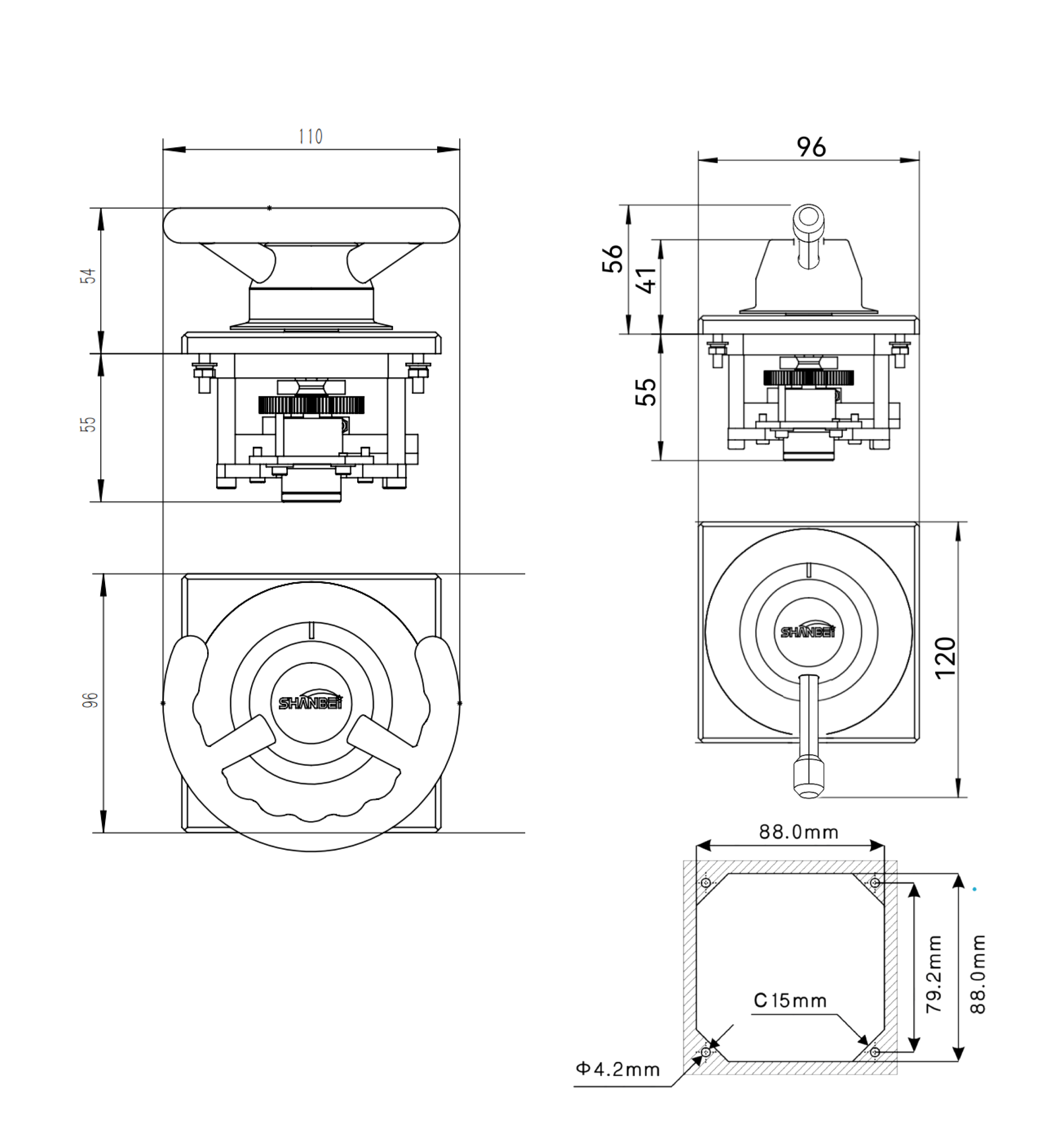

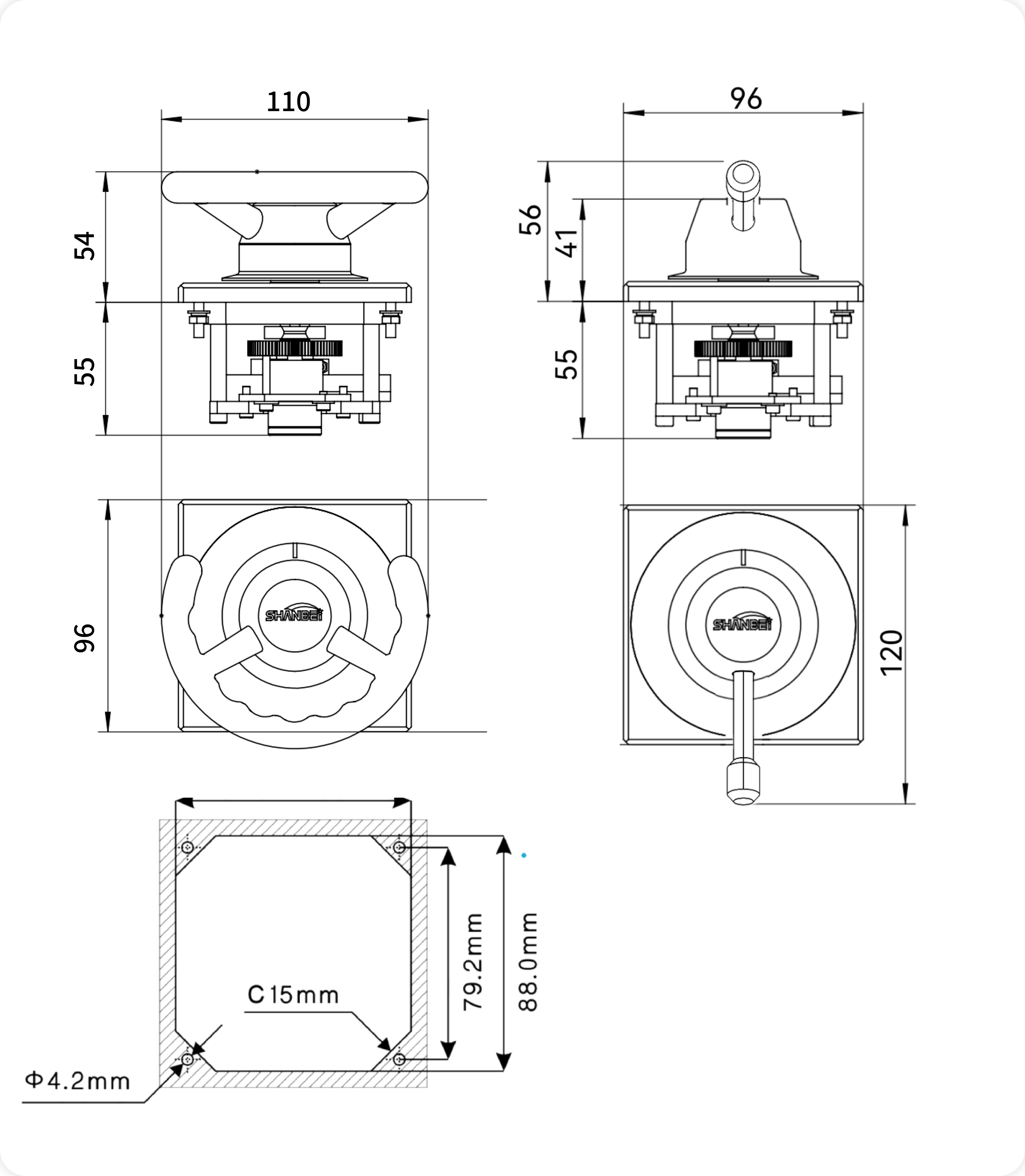

Install4×M4 stud, panel thickness < 10mm
-
Connection mode16-pin terminal connecto
OPTIONS
-

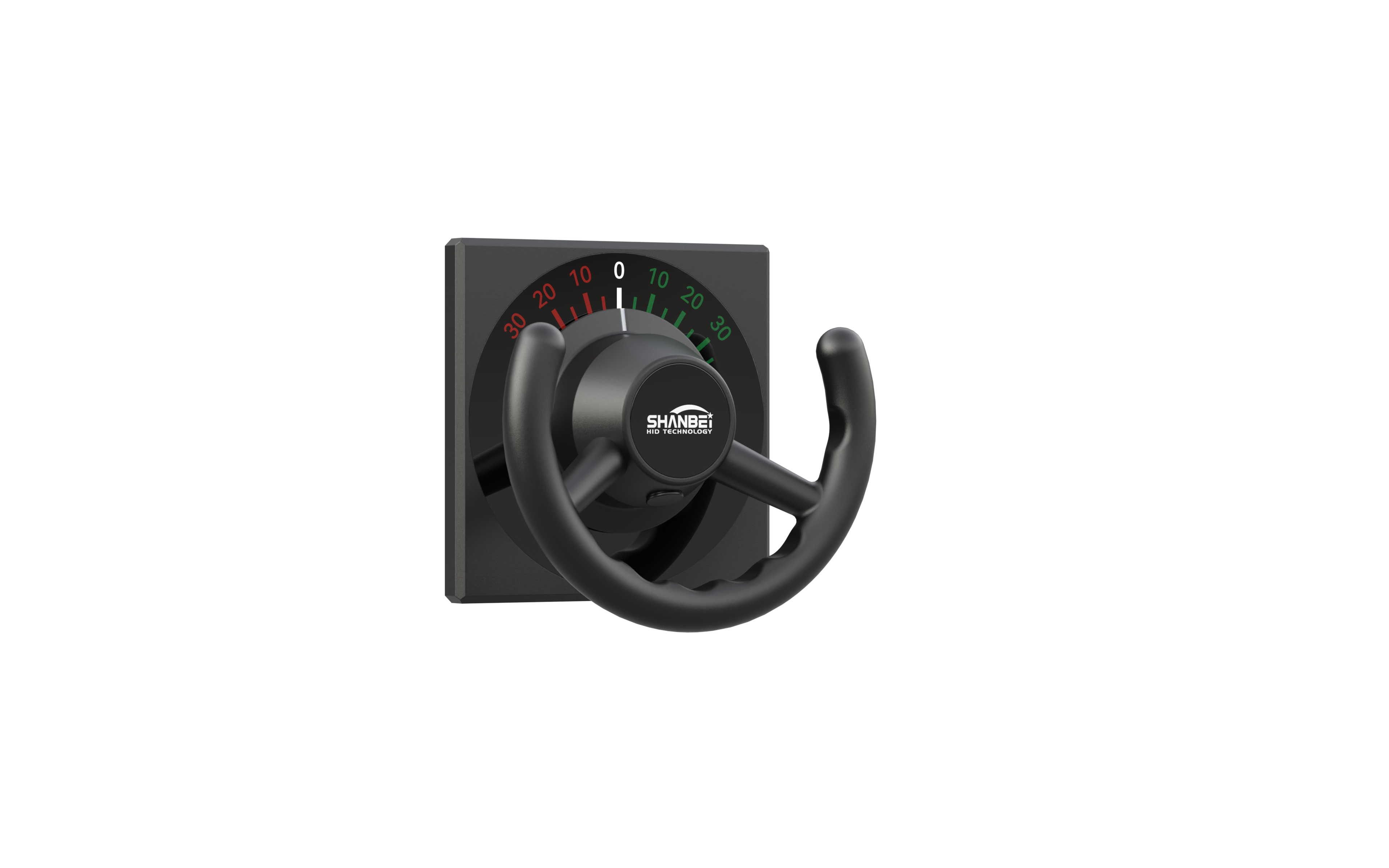

StyleSteering wheel - blackGrip - Stainless Steel
-
Film scale-35°~0~35°-45°~0~45°-50°~0~50° -100~0~100
-
Rotationrange-60°~0~60°，Detent at 0° position-90°~0~90°，Detent at 0° position -140°~0~140°，Detent at 0° position
-
Output signal5K potentiometer4~20mA
-
Motor shaft synchronizationNoYes
