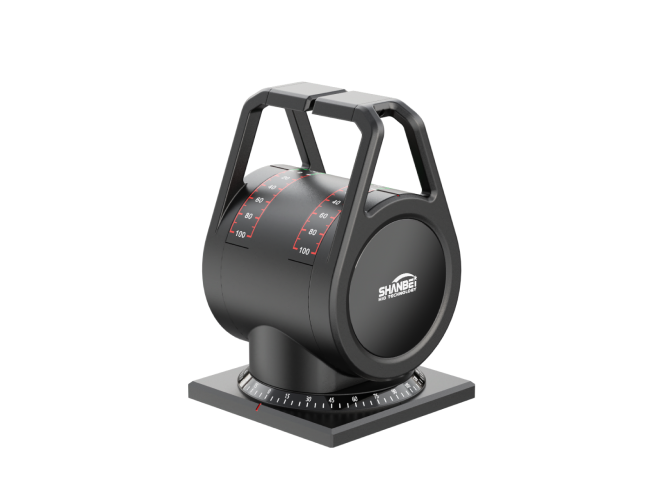

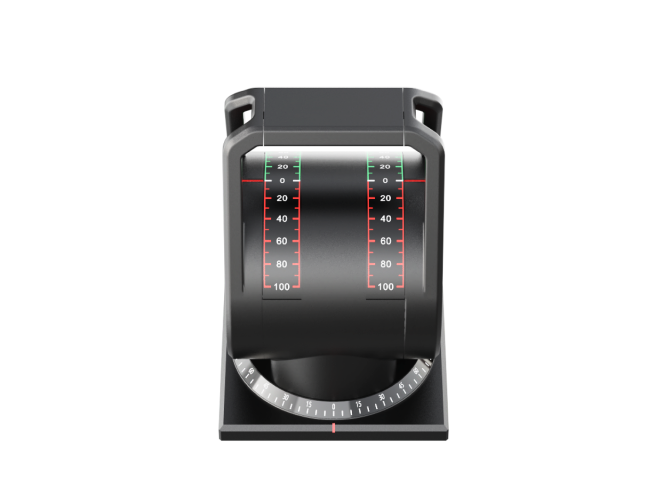

WLF-74
Azimuth control lever
The WLF-74 full-rotation control handle is used in various types of ships or test equipment where speed and orientation need to be adjusted simultaneously.
FEATURES
PARAMETER
-
Y-axis range±60° or 60° or -15~75°
-
Y-axis potentiometer5KΩ，linearity
-
Y-axis stuck0°
-
Body materialAluminum alloy black spray
-
Gear materialCopper alloy
-
BacklightCold light film
-
IP leverIP56
-

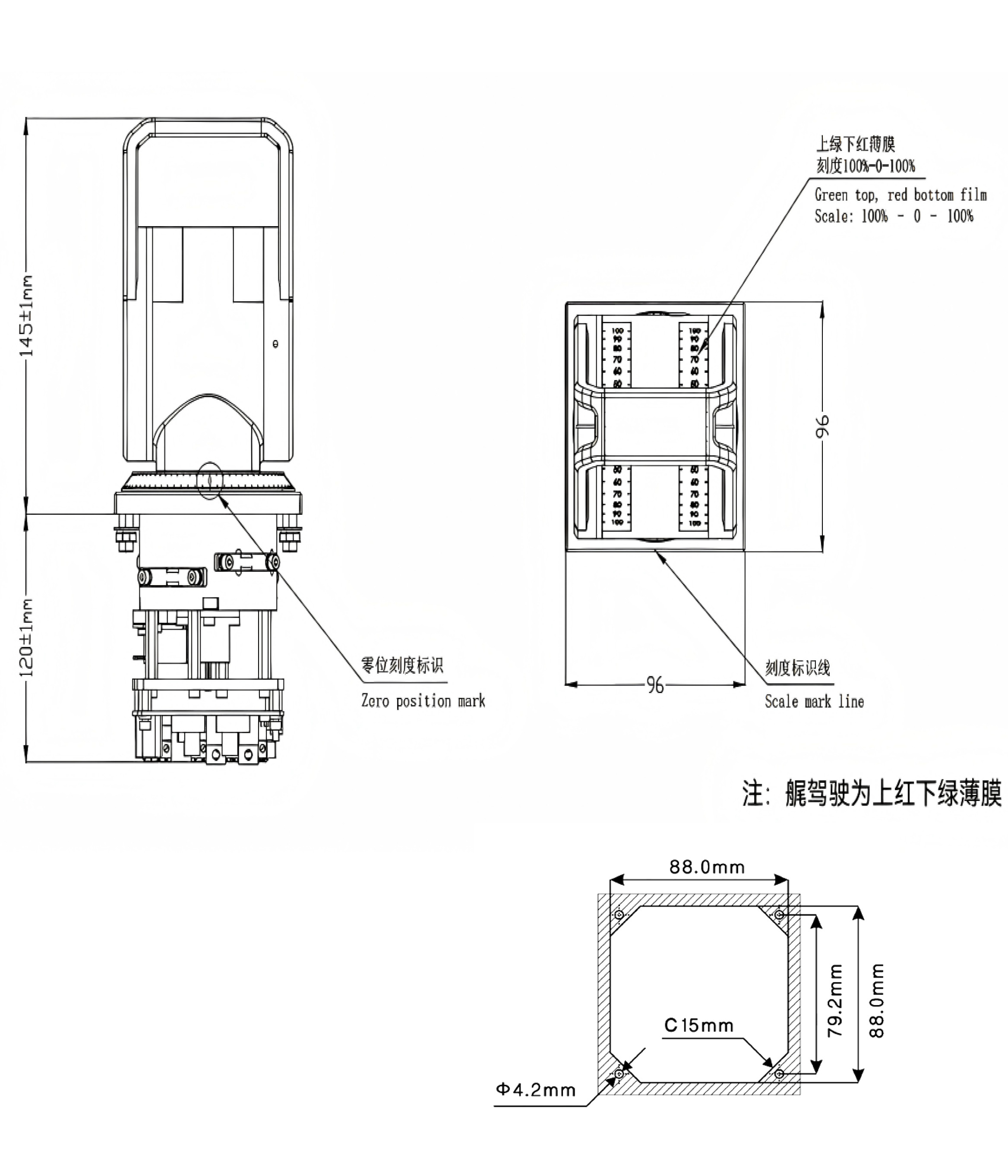

Install4XM4 stud, panel thickness 8mm
-
Z-axis range±180°
-
Z-axis potentiometer5KΩ
-
Z-axis stuck0°、±90°、180°
-
Spindle materialStainless steel
-
Transmission modeGear drive
-
Dimming mode0~24V external power supply dimming
-
Linear tolerance±1.0%
-
Wiring16 I/Oterminal blocks
OPTIONS
-
GripassemblyTwin-lever SYNCTwin-lever IND
-
RPM Rotation range±60°0~60°-15~60°
-
Bearing Rotation range±180°
-
Output signal5K sin/cos Propulsion/rotation:4~20mADry contact switch
-
Backlight adjustment0~24V
-
LocationFWDAFT
