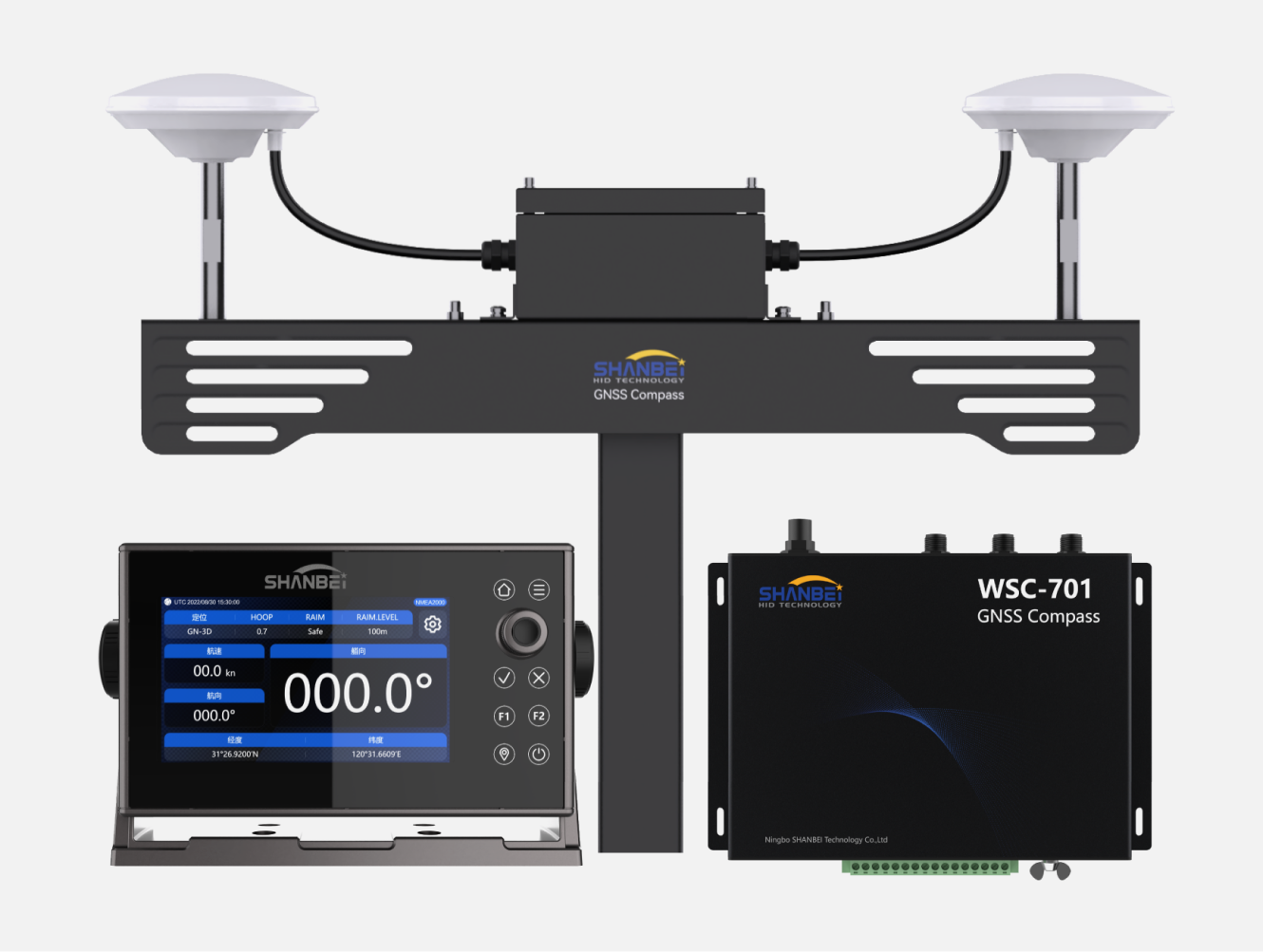

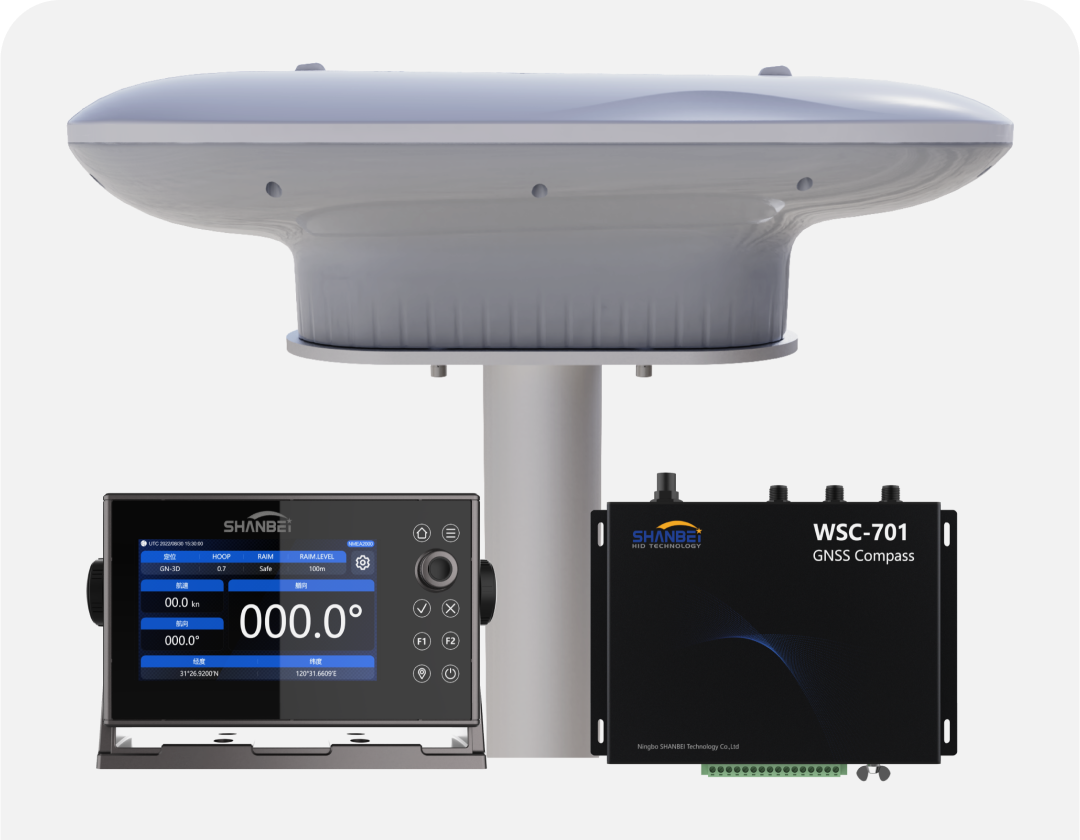

WSC-70

Satellite compass

The WSC-70 satellite compass adopts advanced satellite navigation technology, which can provide high-precision positioning and heading data for various navigation devices.
#Fishing vessel # Yacht # Bulk carrier # Unmanned boat
Contact Us +86 13186888051
Overview > Feature > Parameter > Customized > Cccessory > Download

FEATURES




PARAMETER

Satellite system
1408 chn,BDS/GPS/GLONASS/Galileo
Navigation system
BDS:B1I、B2I、B3I
GPS:L1C/A、L2C
GLONASS:L1、L2
Galileo:E1、E5b
Base length
60cm
Heading accuracy
0.2°RMS
Dynamic attitude accuracy
0.1°RMS
Attitude angle range
±60°
Positioning accuracy
1.5m
Speed accuracy
Under 3D position：0.05m/s
Cold start positioning time
<30s
Hot start positioning time
<5s
Weight
7KG
Material
Stainless steel

OPTIONS

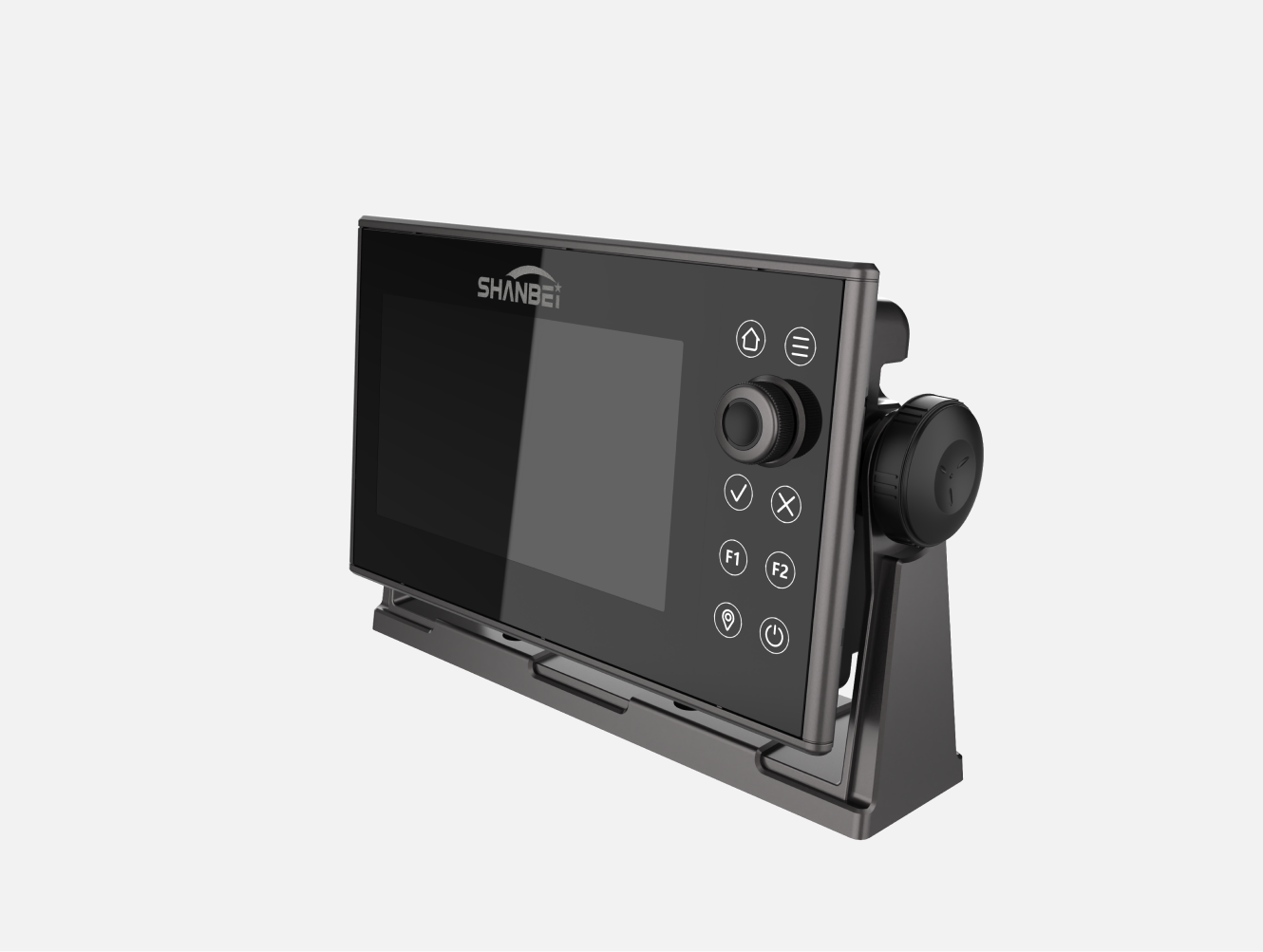

Display
IncludeNot inculde
Type

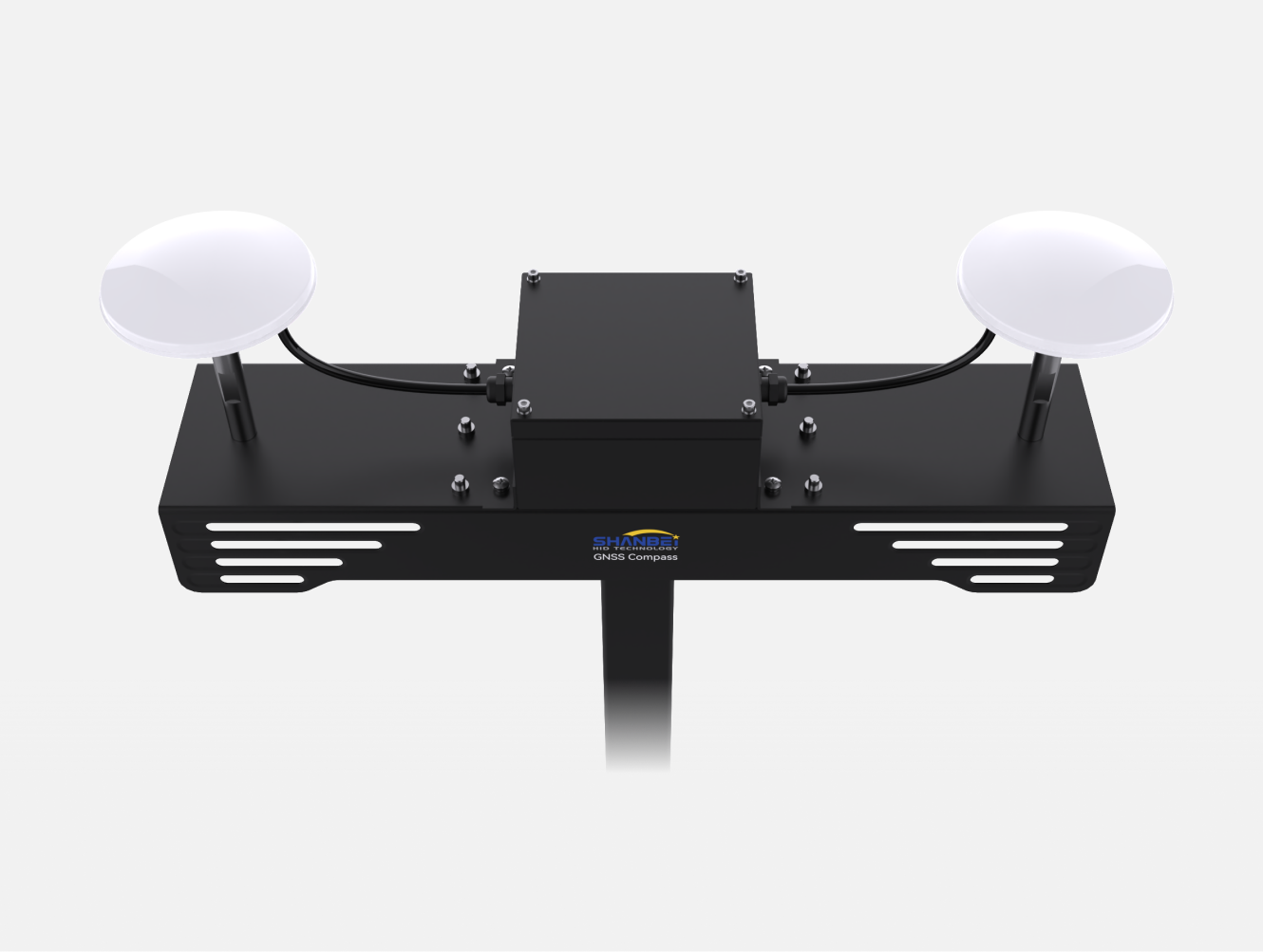

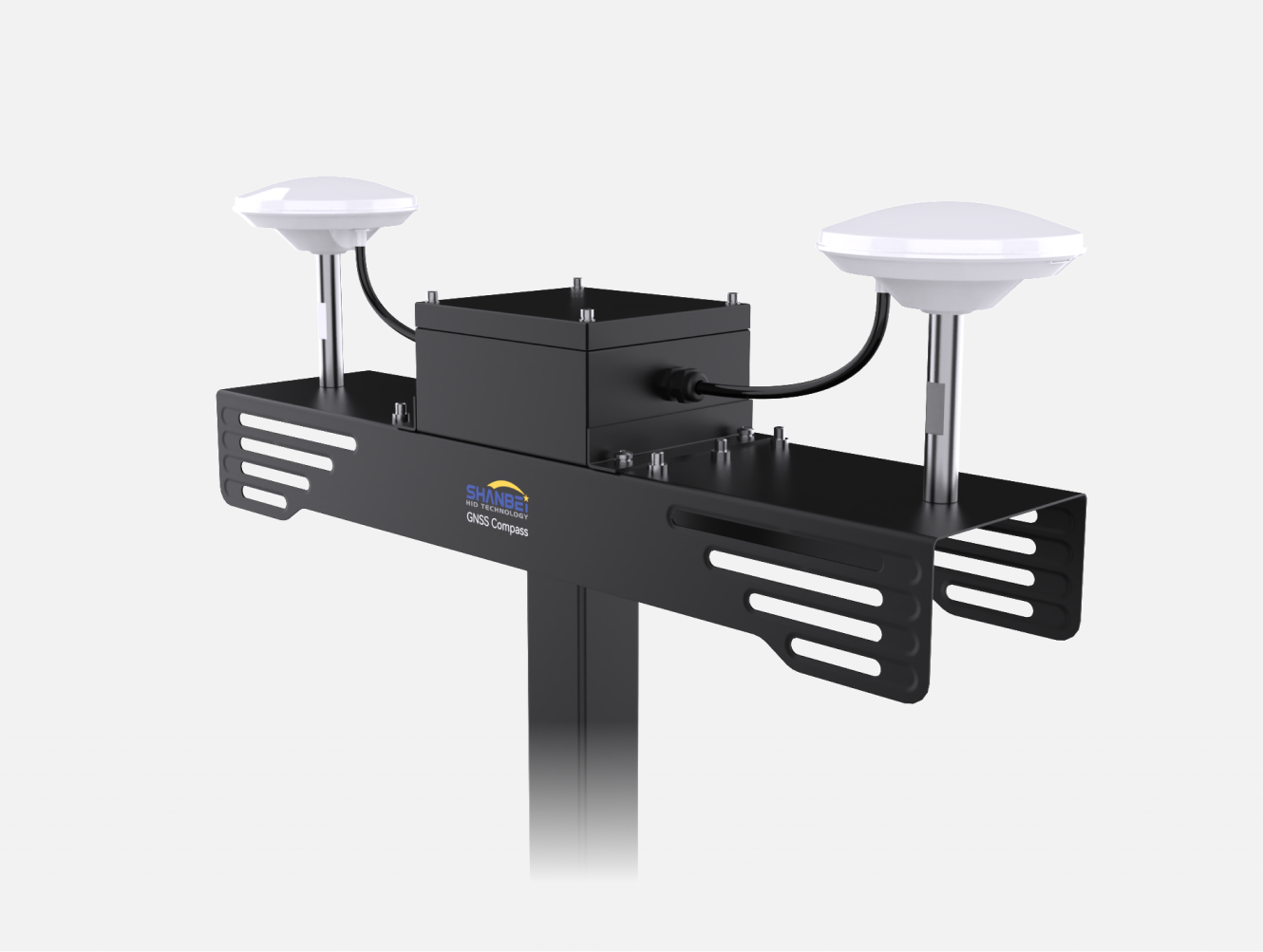

Bracket
Output
Heading, turning speed, ground speed/heading, roll, pitch, etcIn addition to the above, output heave, sway, and heave data
