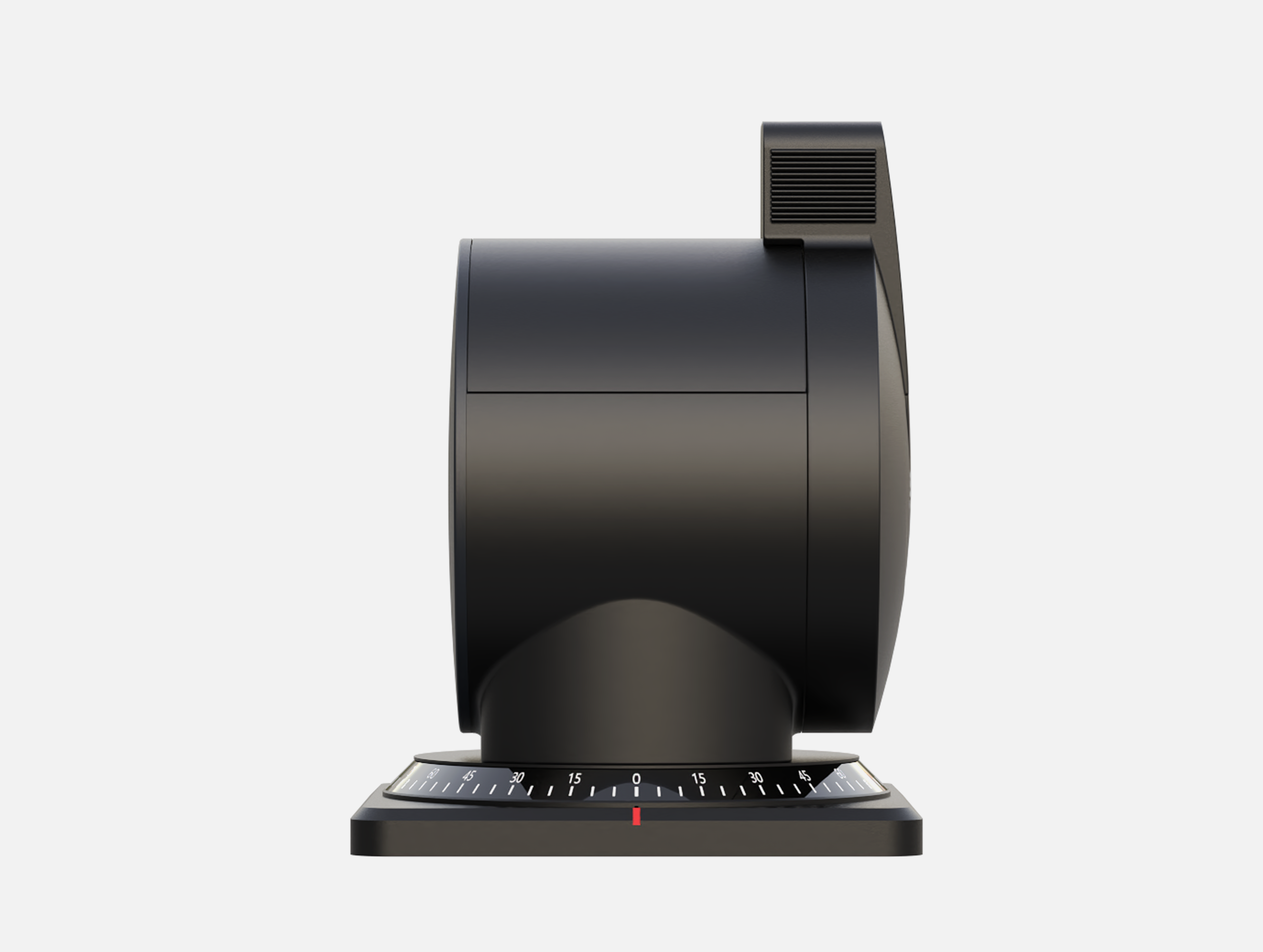

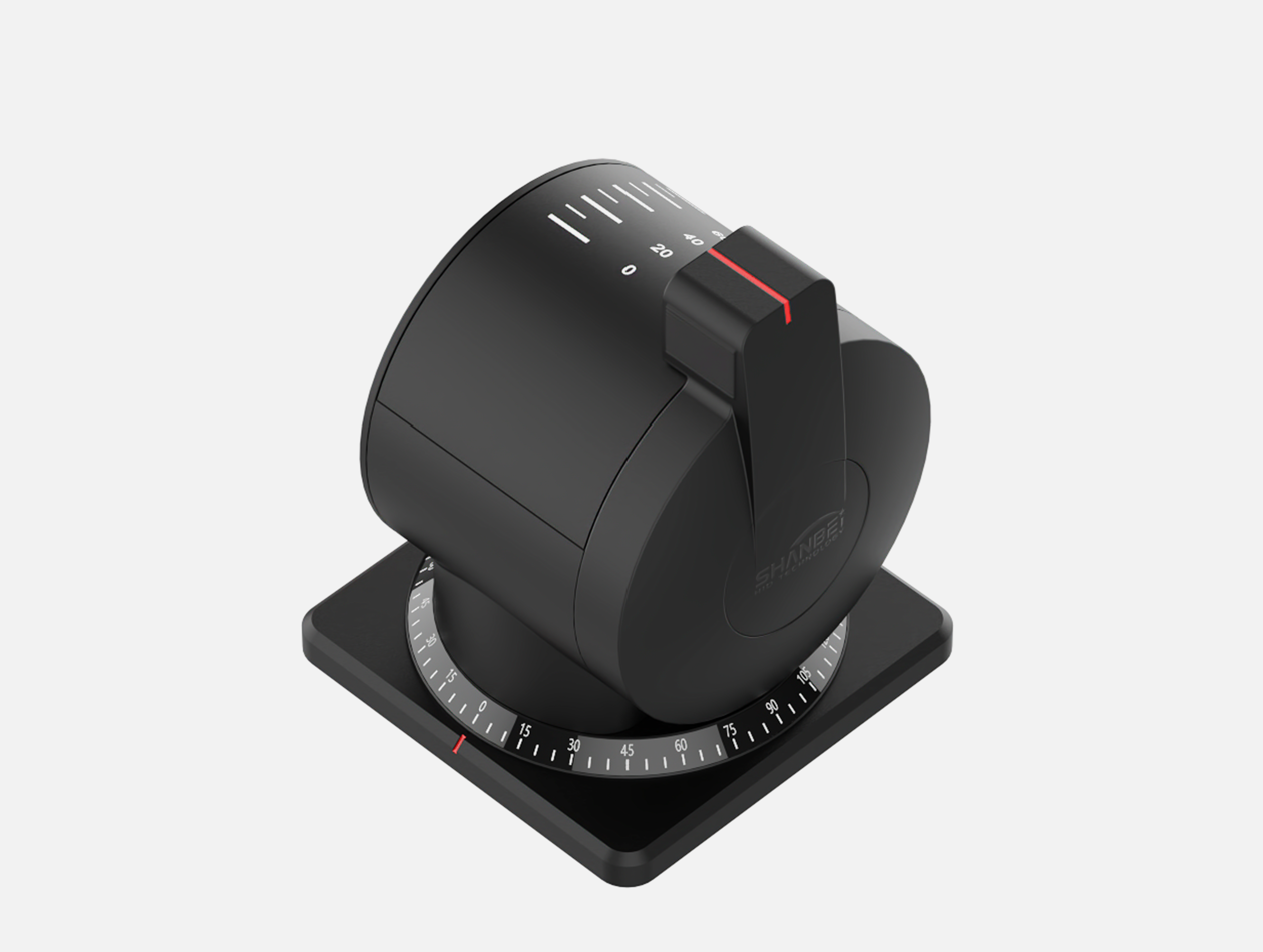

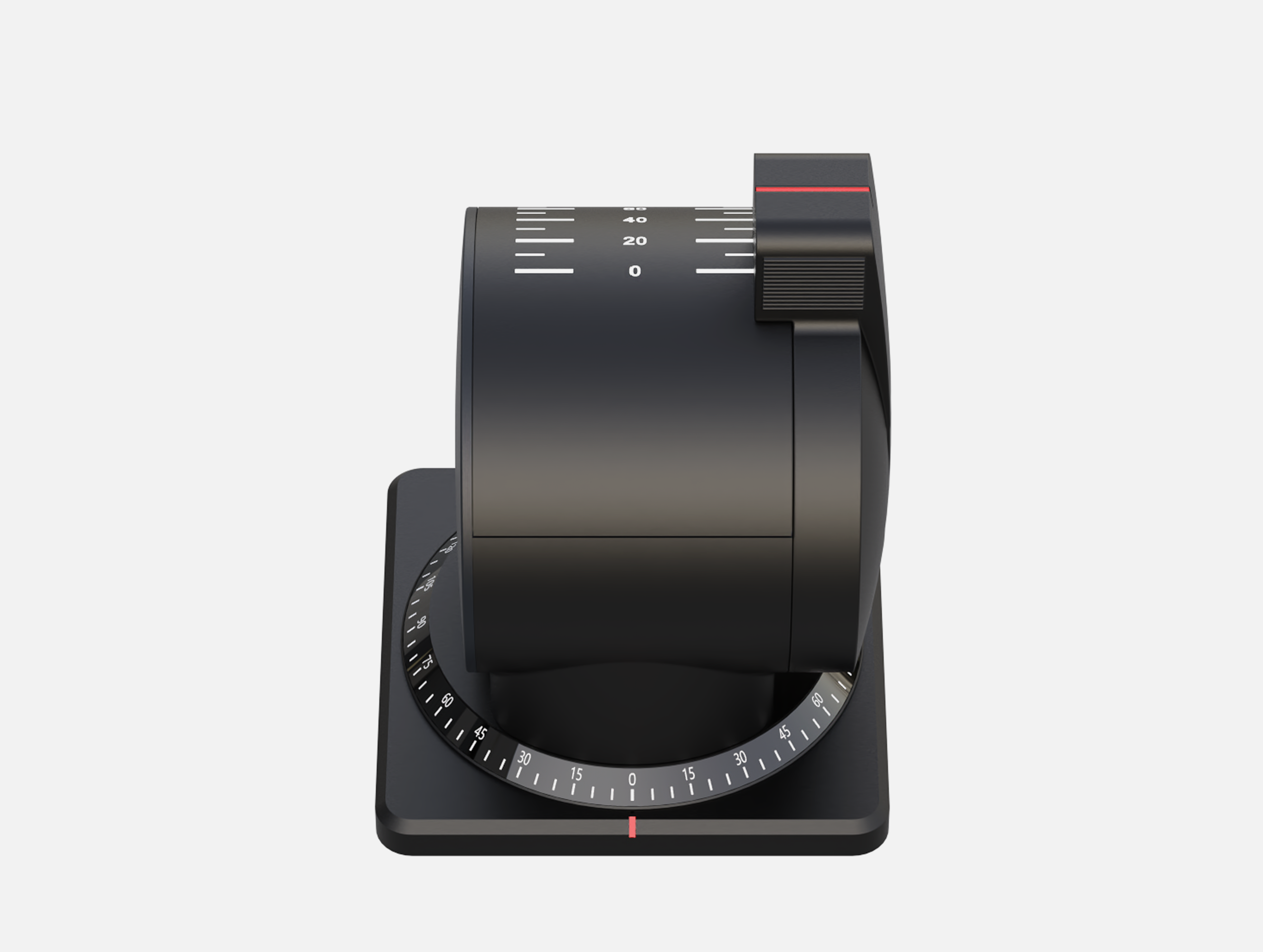

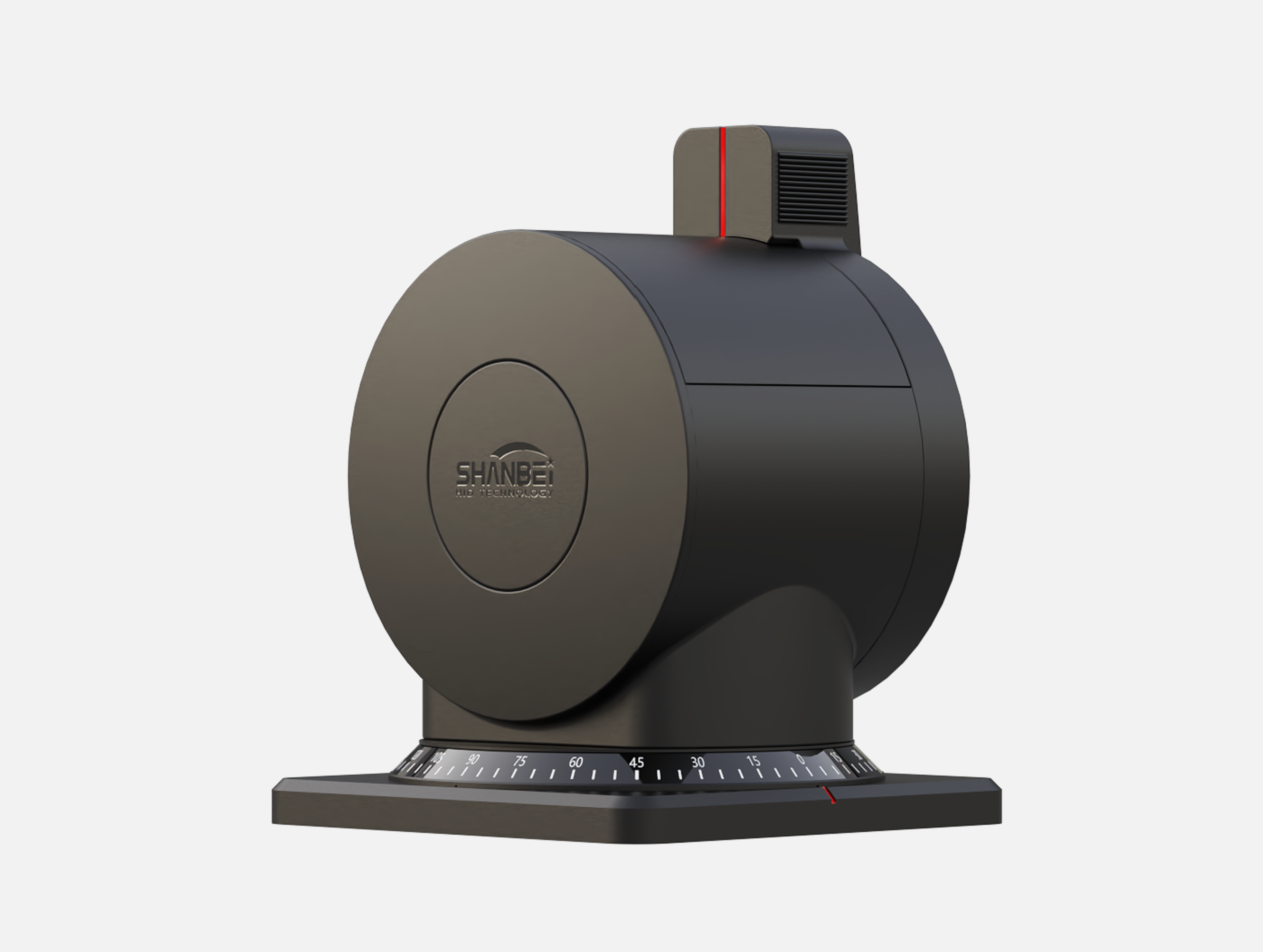

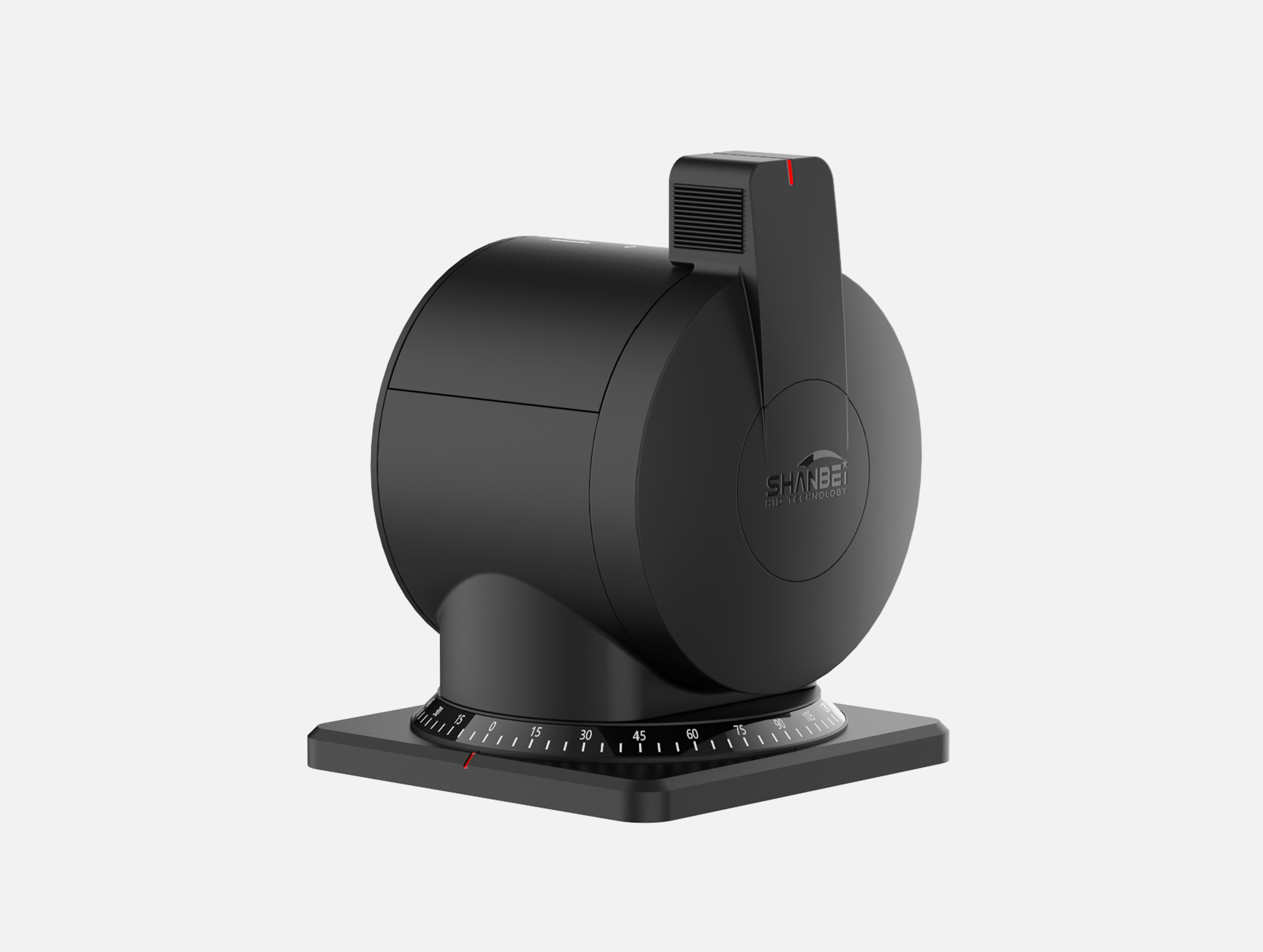

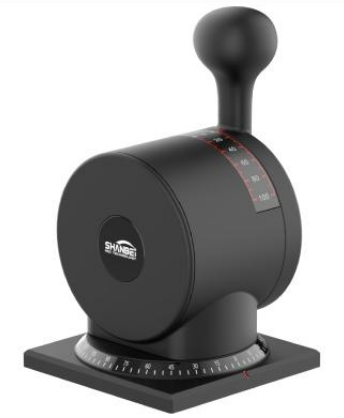

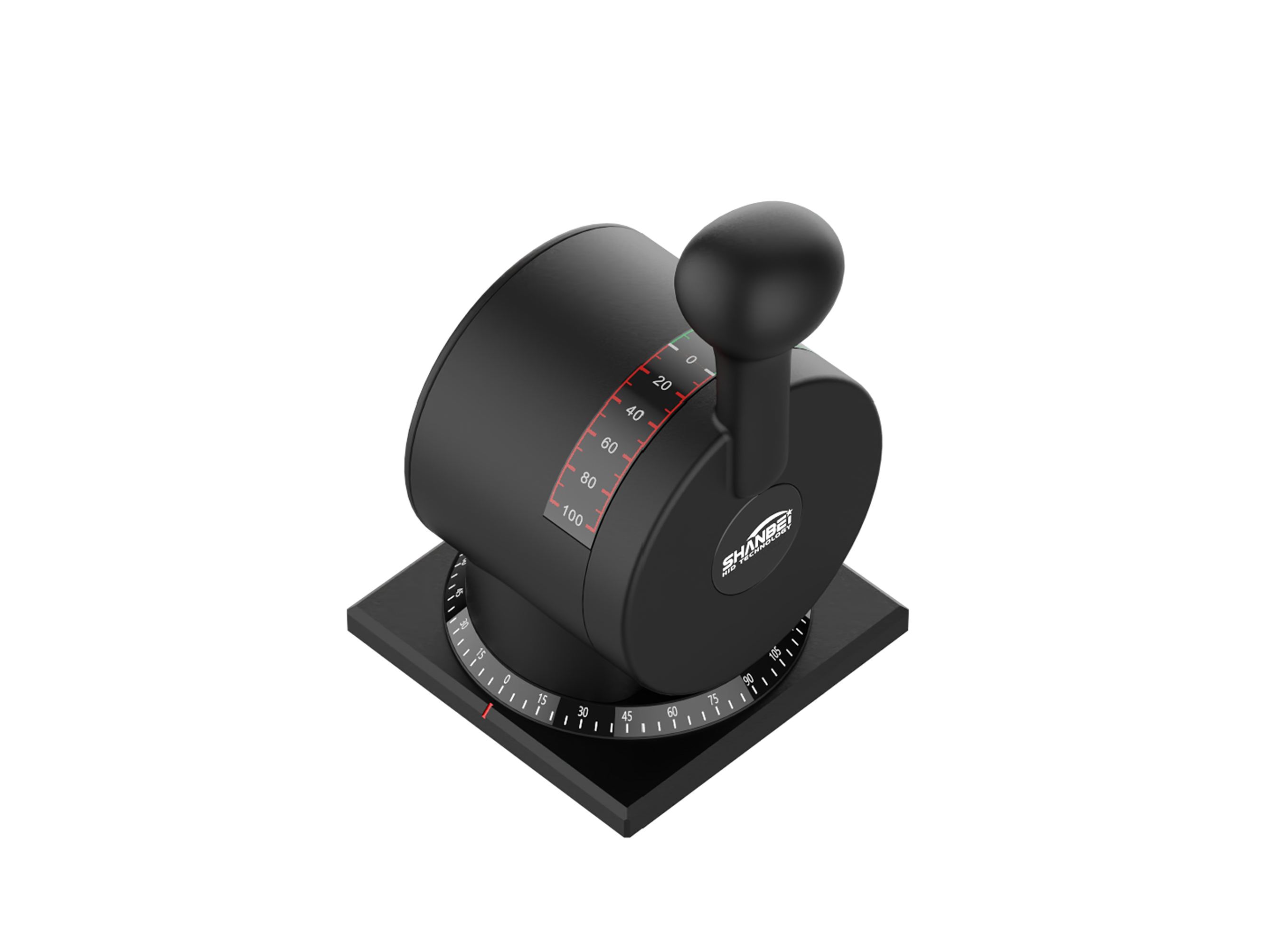

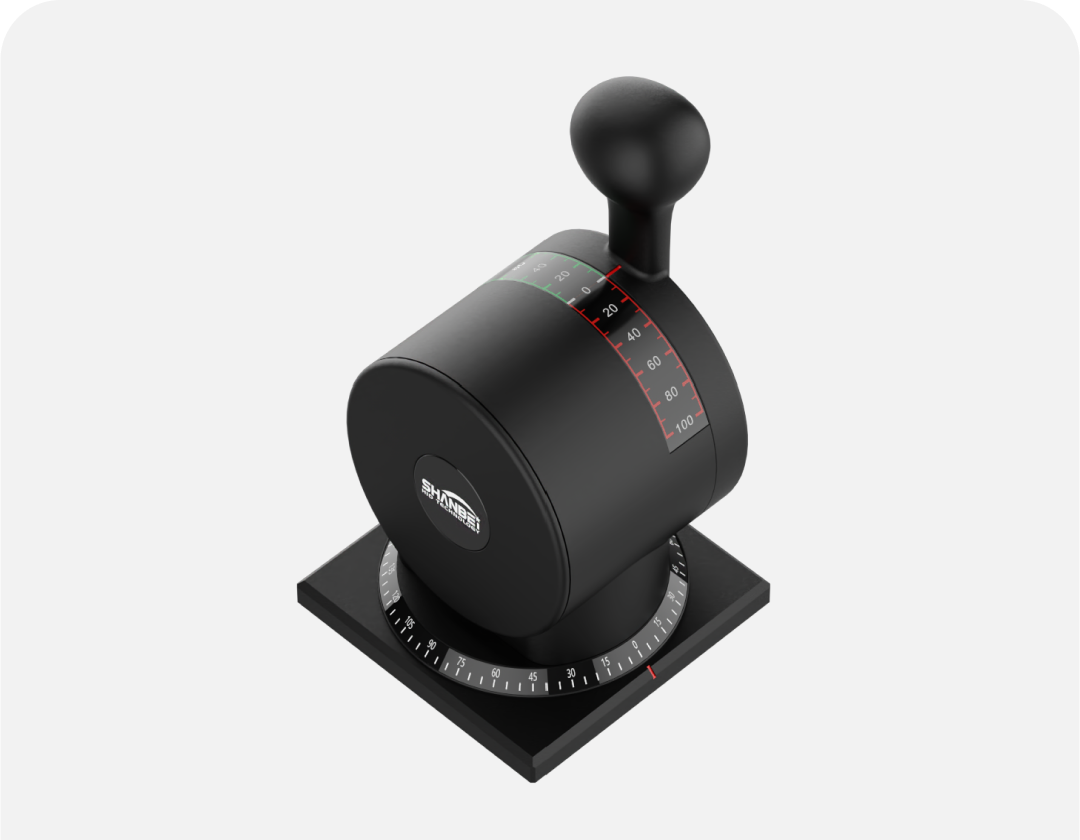

WLF-72

Azimuth control lever

The WLF-72 Azimuth control lever is used for all kinds of ships or test equipment, such as the need to adjust the speed and orientation at the same time.
Contact Us +86 13186888051
Overview > Feature > Parameter > Customized > Cccessory > Download

FEATURES




PARAMETER

Supply voltage
18~26VDC
Y-axis range
±60°
Y-axis potentiometer
5KΩ，linearity
Y-axis stuck
0°
Body material
Aluminum alloy black spray
Gear material
Copper alloy
Backlight
Cold light film
IP lever
IP56

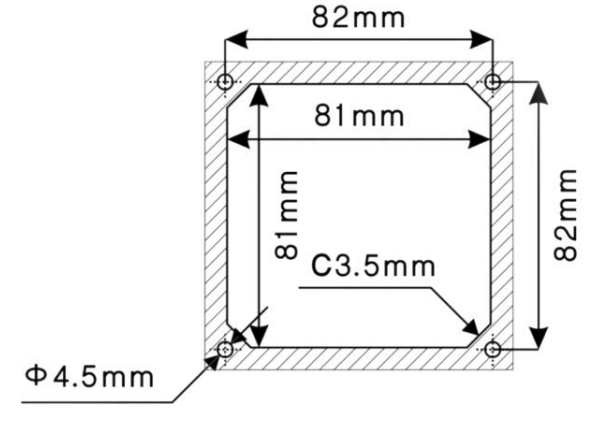

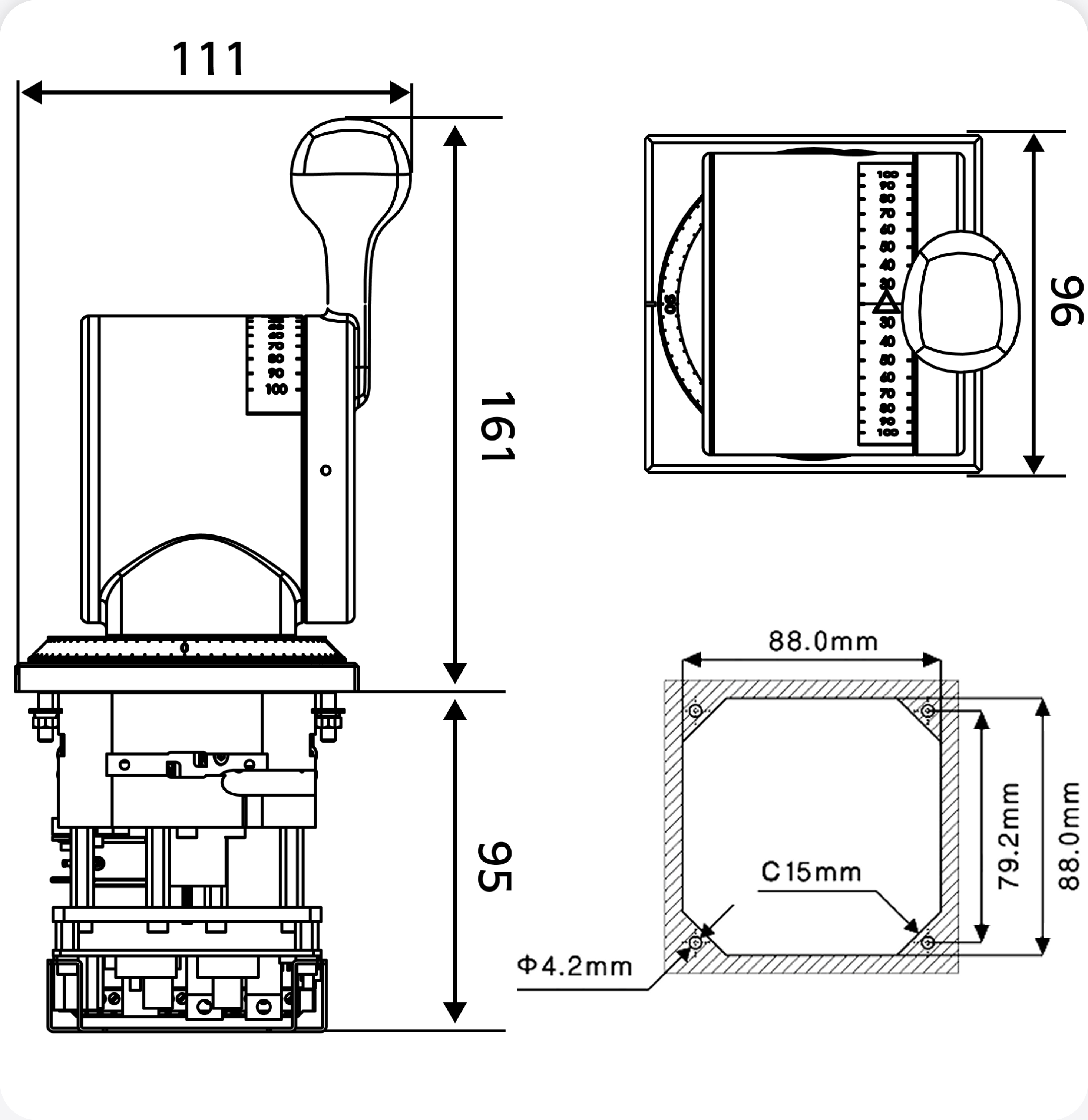

Install
4XM4 stud, panel thickness 8mm
Z-axis range
360° continuous rotation
Z-axis potentiometer
5KΩ
Z-axis stuck
0°、±90°、180°
Spindle material
Stainless steel
Transmission mode
Gear drive
Dimming mode
0~24V external power supply dimming
Linear tolerance
±1.0%
Wiring
16 I/O terminal blocks

OPTIONS

Style
Ball head handleFinger push handle

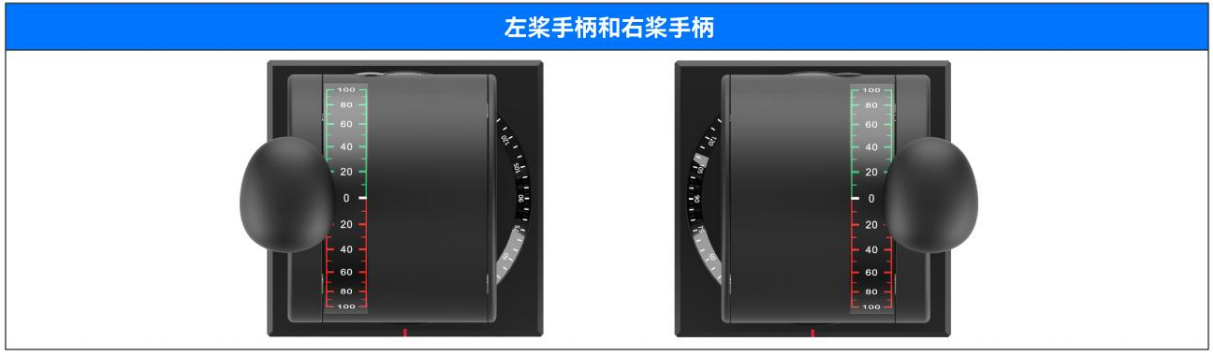

Type
Left position 72LRight position 72R
RPM Rotation range
±60°0~60°
Bearing Rotation range
±180°
Output signal
5K sin/cos
Backlight adjustment
0~24V
Location
FWDAFT
