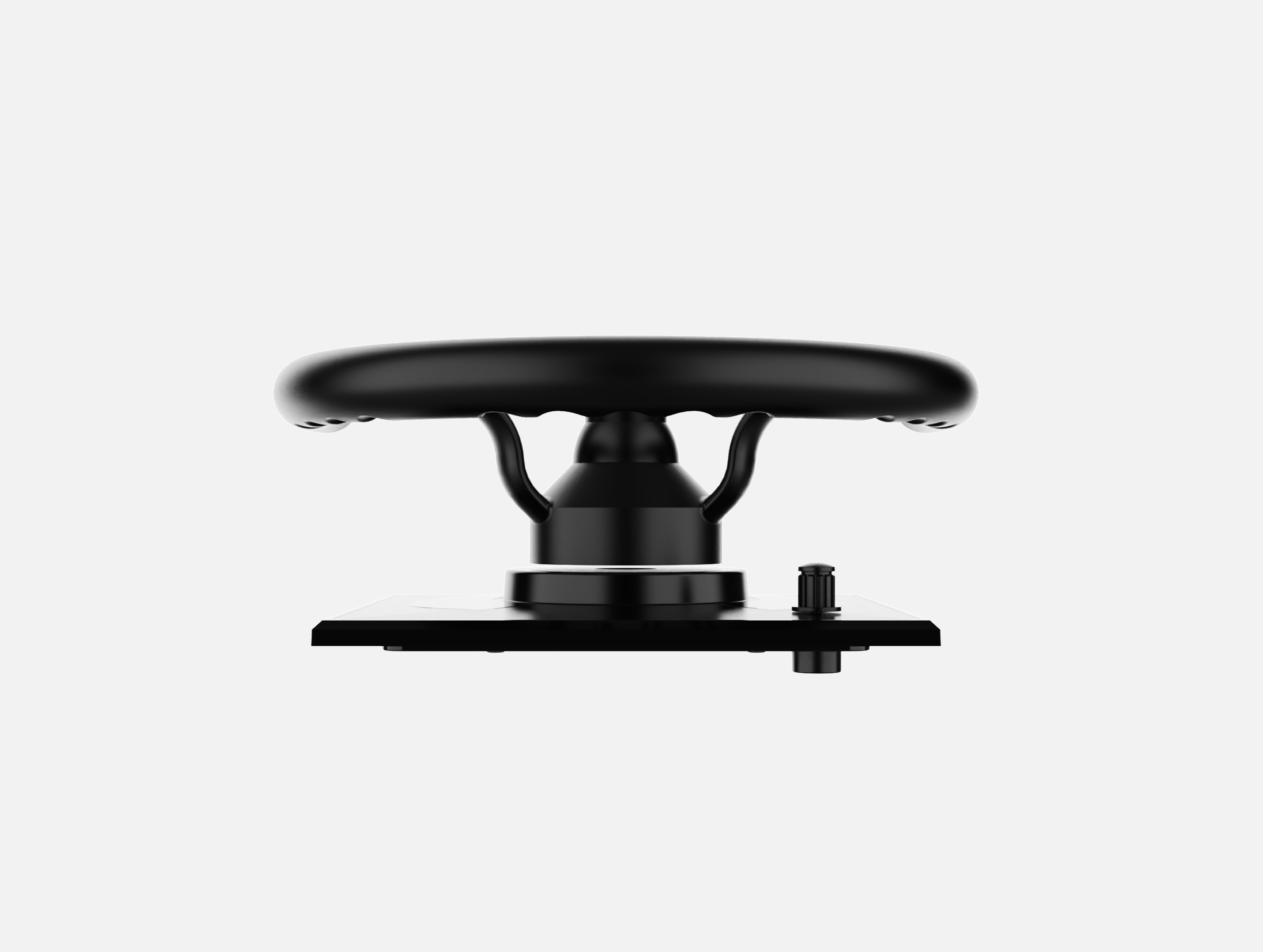

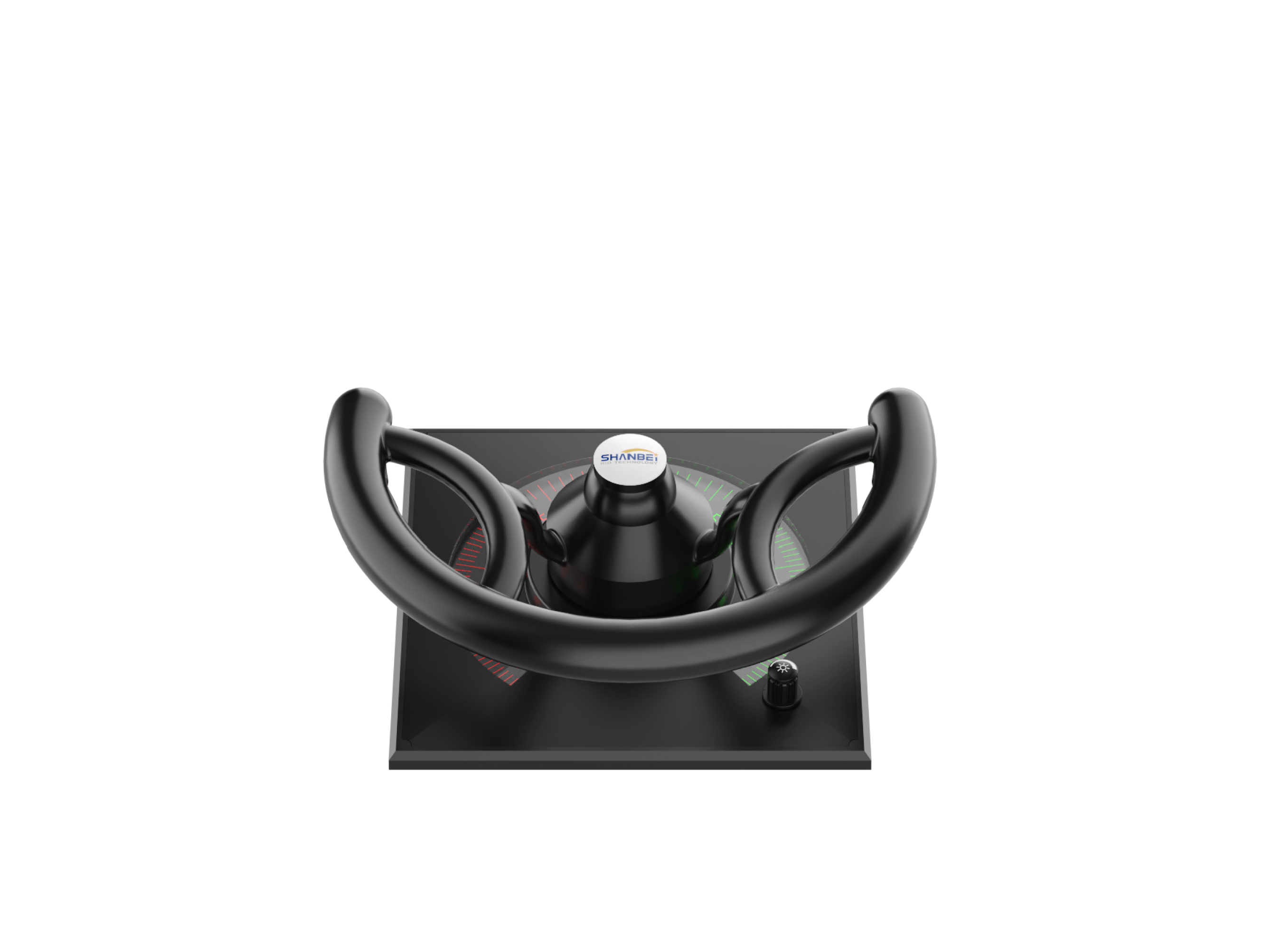

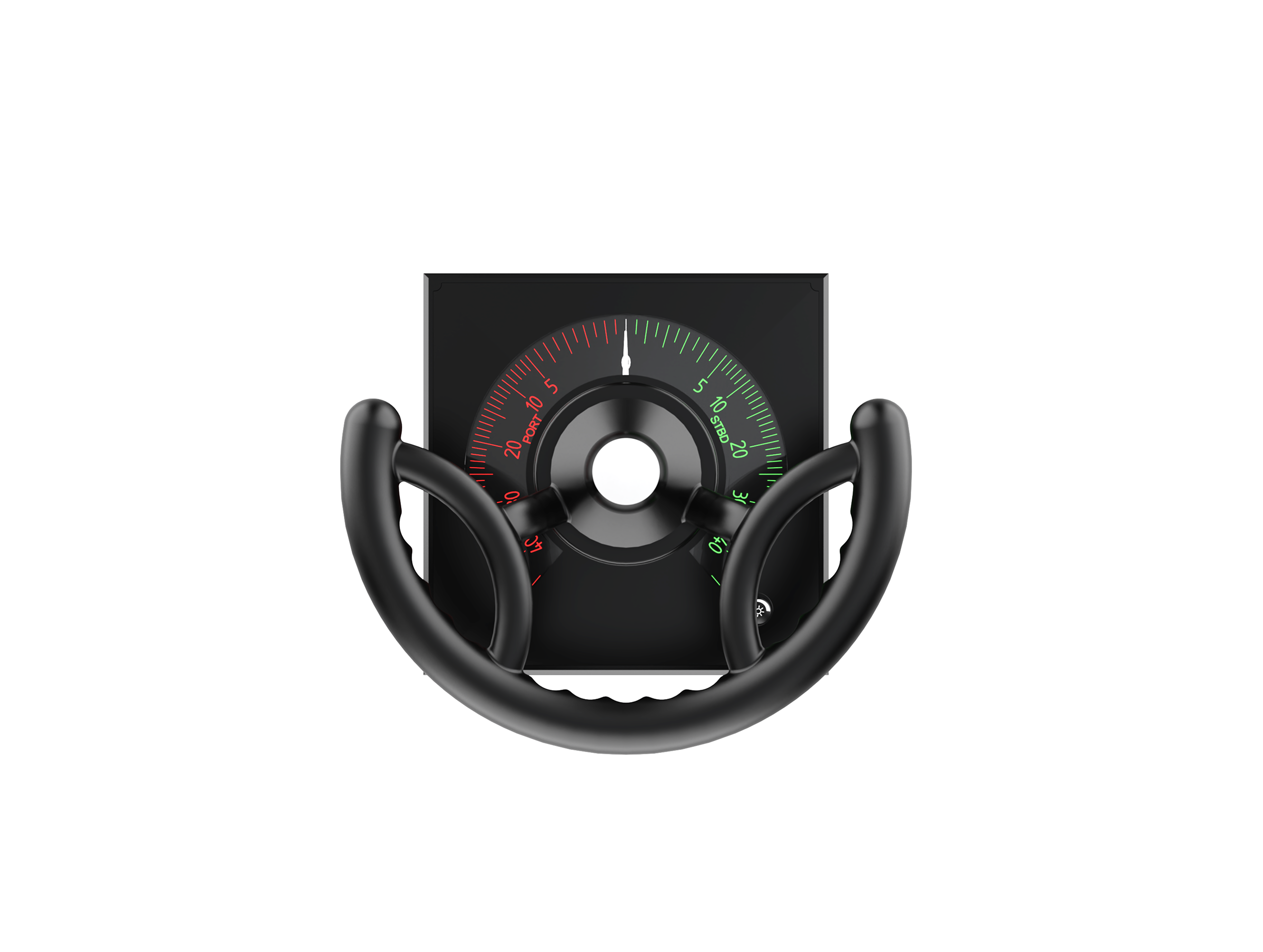

WLF-150A
Rudder control
The WLF-150A rudder control hand wheel is used for the servo control of the ship's steering system.
Contact Us +86 13186888051
FEATURES
PARAMETER
-
Supply voltage18~26VDC
-
Potentiometer5KΩ
-
Rotation range±140°
-
IP leverIP56
-
Weight2.5~3.5kg(Different types of hand wheels)
-
Test standardIEC60945
-
Operating temperature5℃~55℃
-

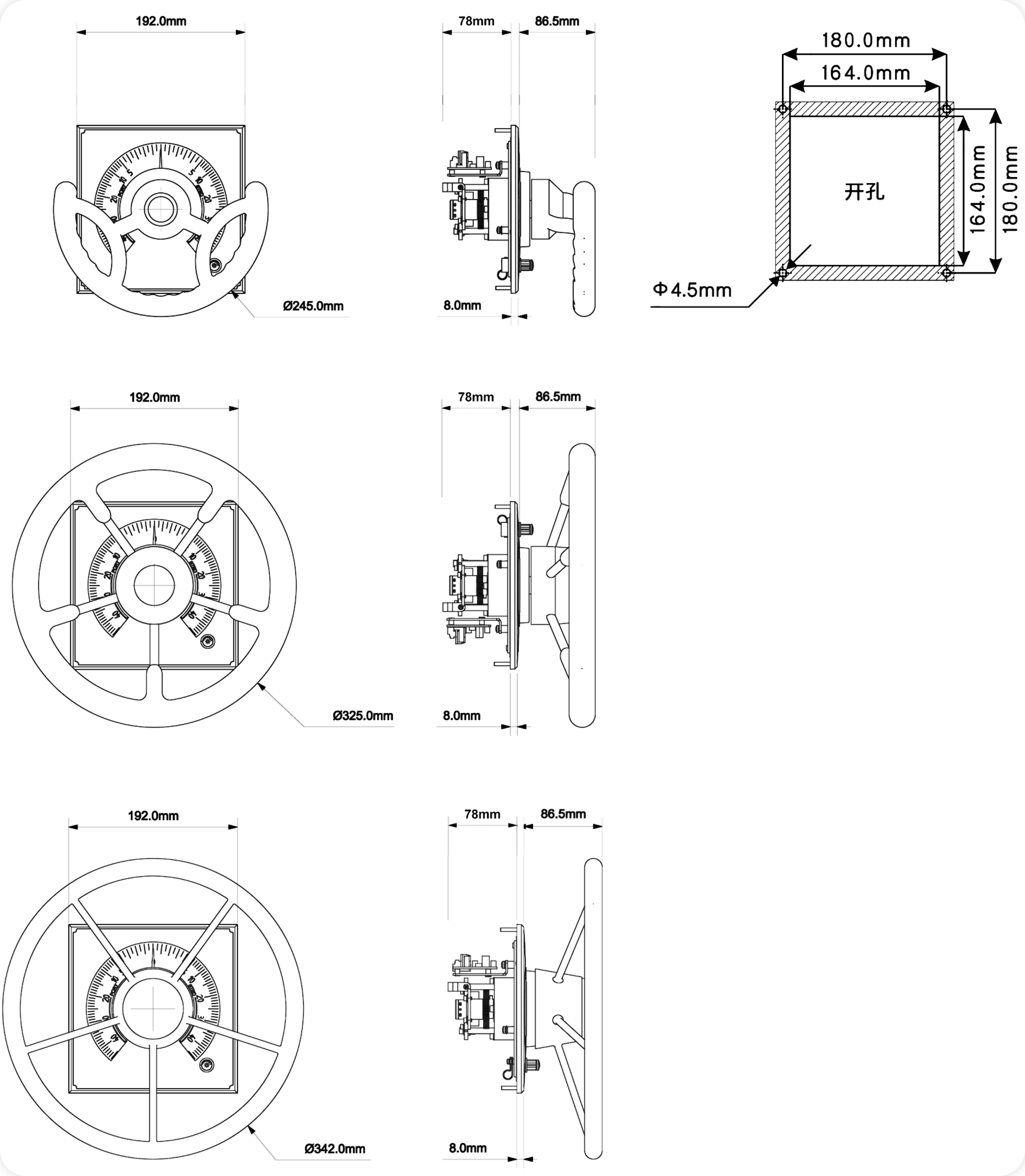

Install4×M4 stud, panel thickness < 10mm
-
Connection mode16 bit terminal
CUSTOMIZATION
-
Rotation range±140°±90°Other
-
Number of channelsSingleDouble
-
Output signal5K potentiometer4~20mA
-
Backlight adjustment0~5V0~24VPWM
-
Integrated functionFollow-up controlSwitch key
-
Motor shaft synchronizationYesNo
