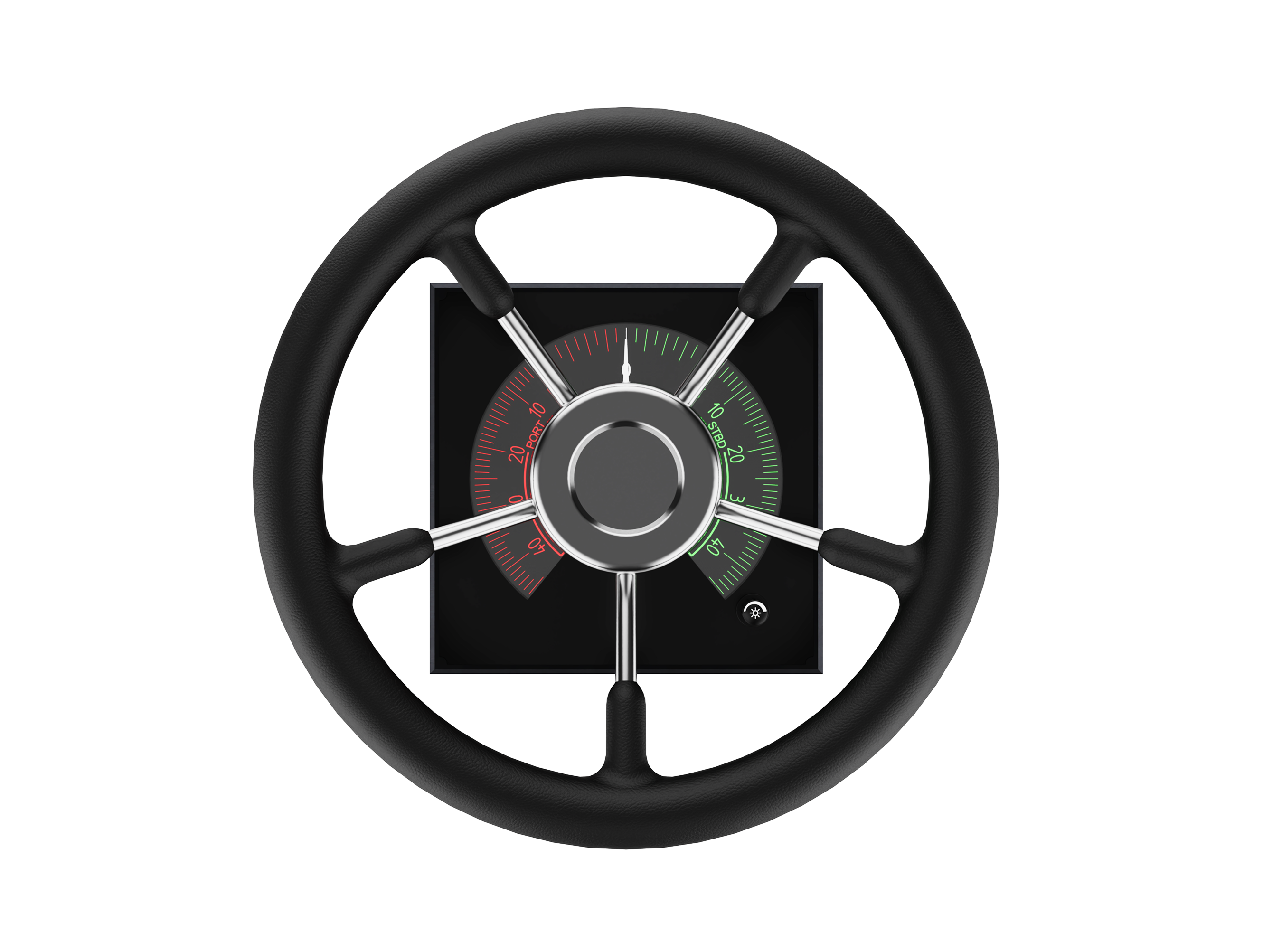

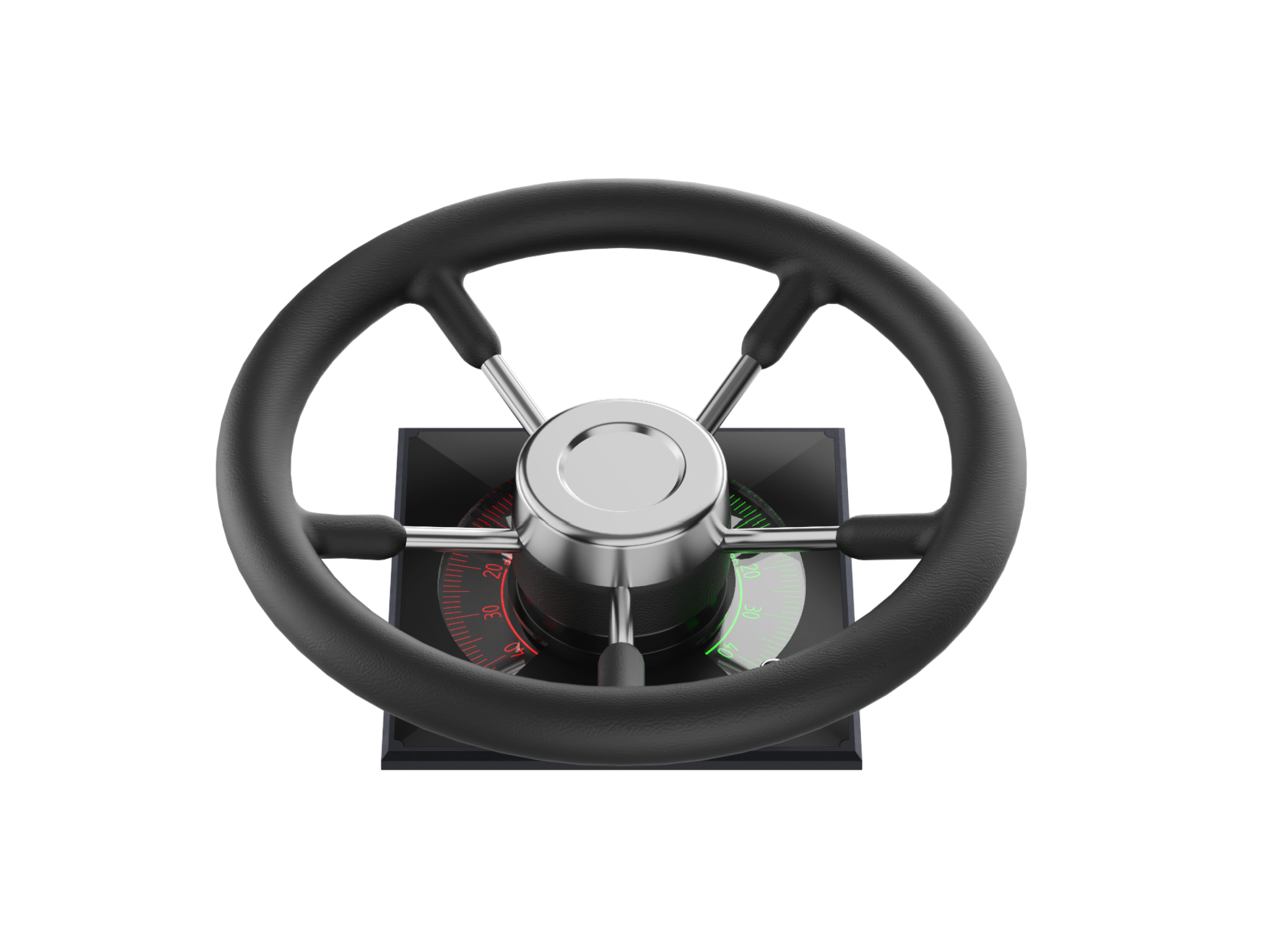

WLF-150P

Rudder control

The WLF-150P rudder control hand wheel is used for the servo control of the ship's steering system.
Contact Us +86 13186888051

FEATURES

PARAMETER

Supply voltage
18~26VDC
Potentiometer
5KΩ
Rotation range
±140°
IP lever
IP56
Weight
2.5~3.5kg(Different types of hand wheels)
Test standard
IEC60945
Operating temperature
5℃~55℃

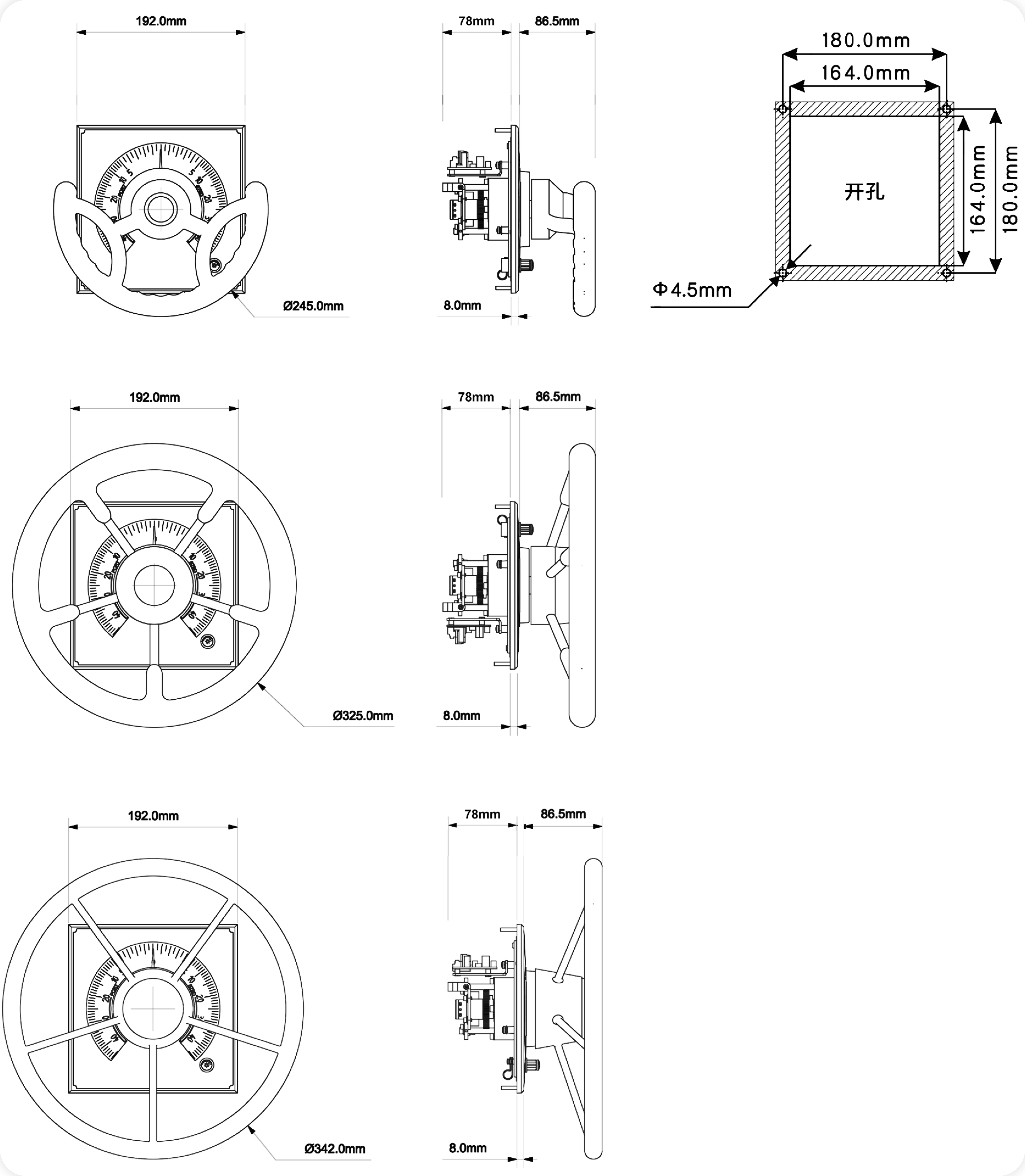

Install
4×M4 stud, panel thickness < 10mm
Connection mode
16 bit terminal

CUSTOMIZATION

Rotation range
±140°±90°Other
Number of channels
SingleDouble
Output signal
5K potentiometer4~20mA
Backlight adjustment
0~5V0~24VPWM
Integrated function
Follow-up controlSwitch key
Motor shaft synchronization
YesNo
