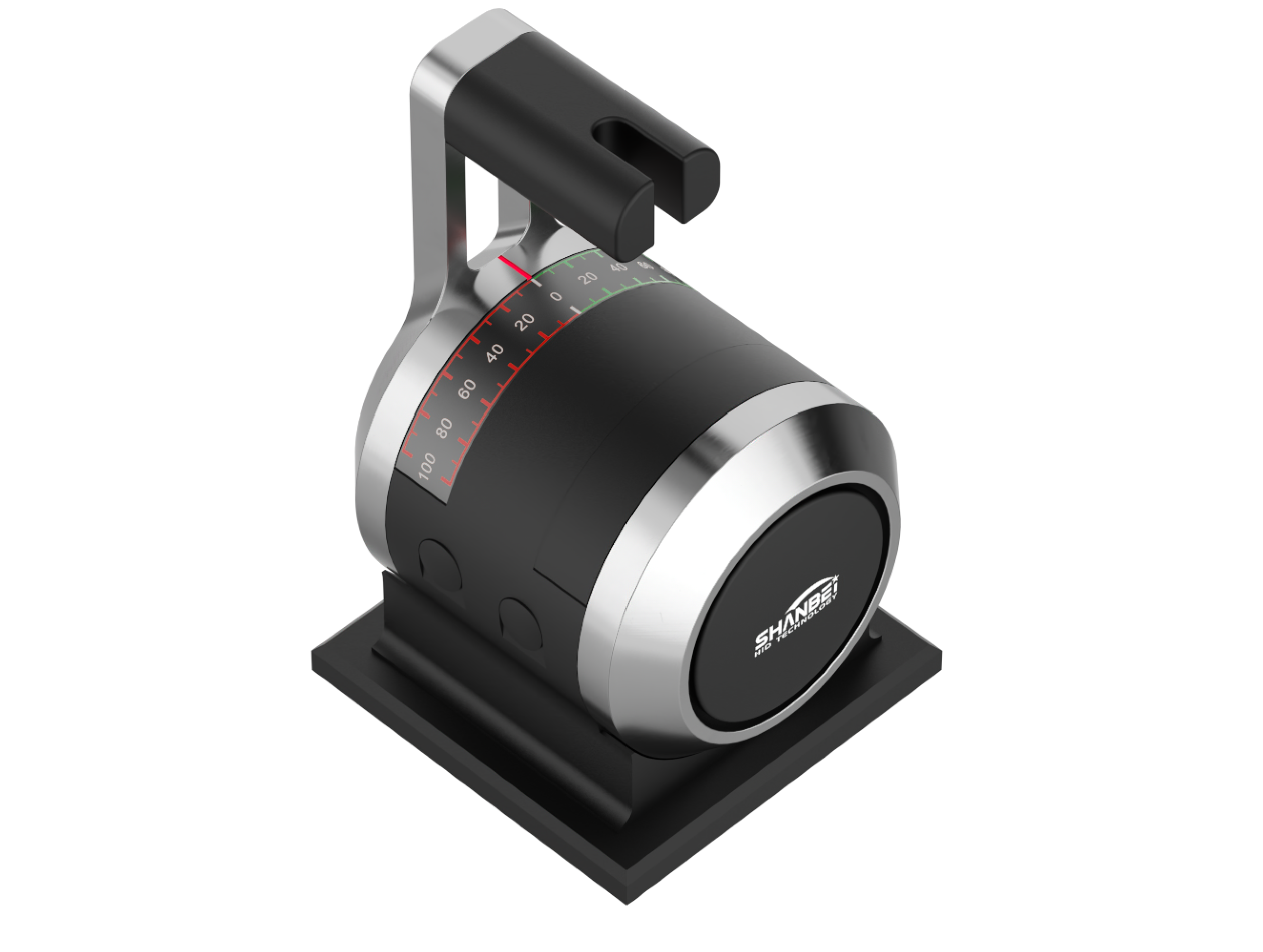

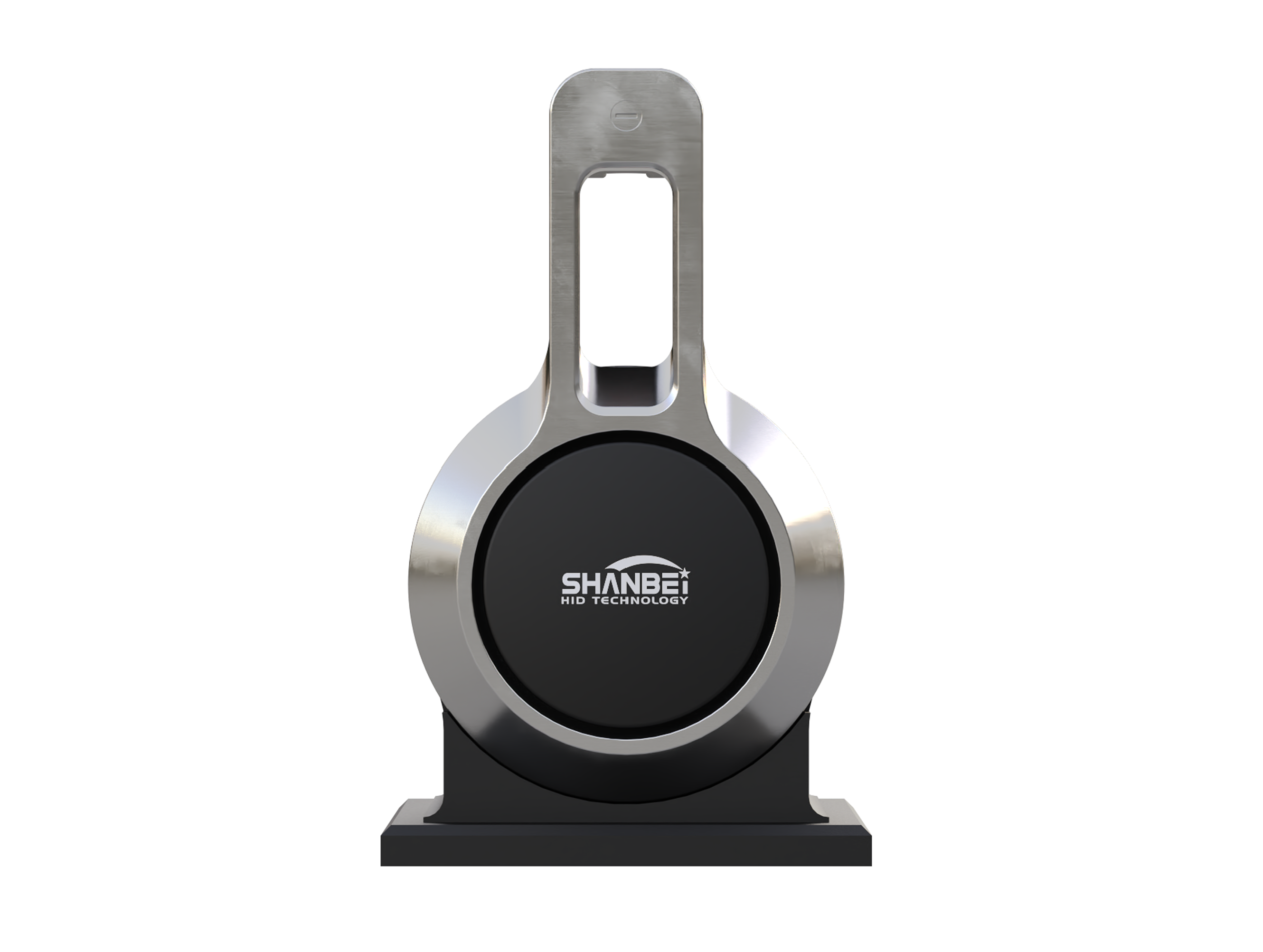

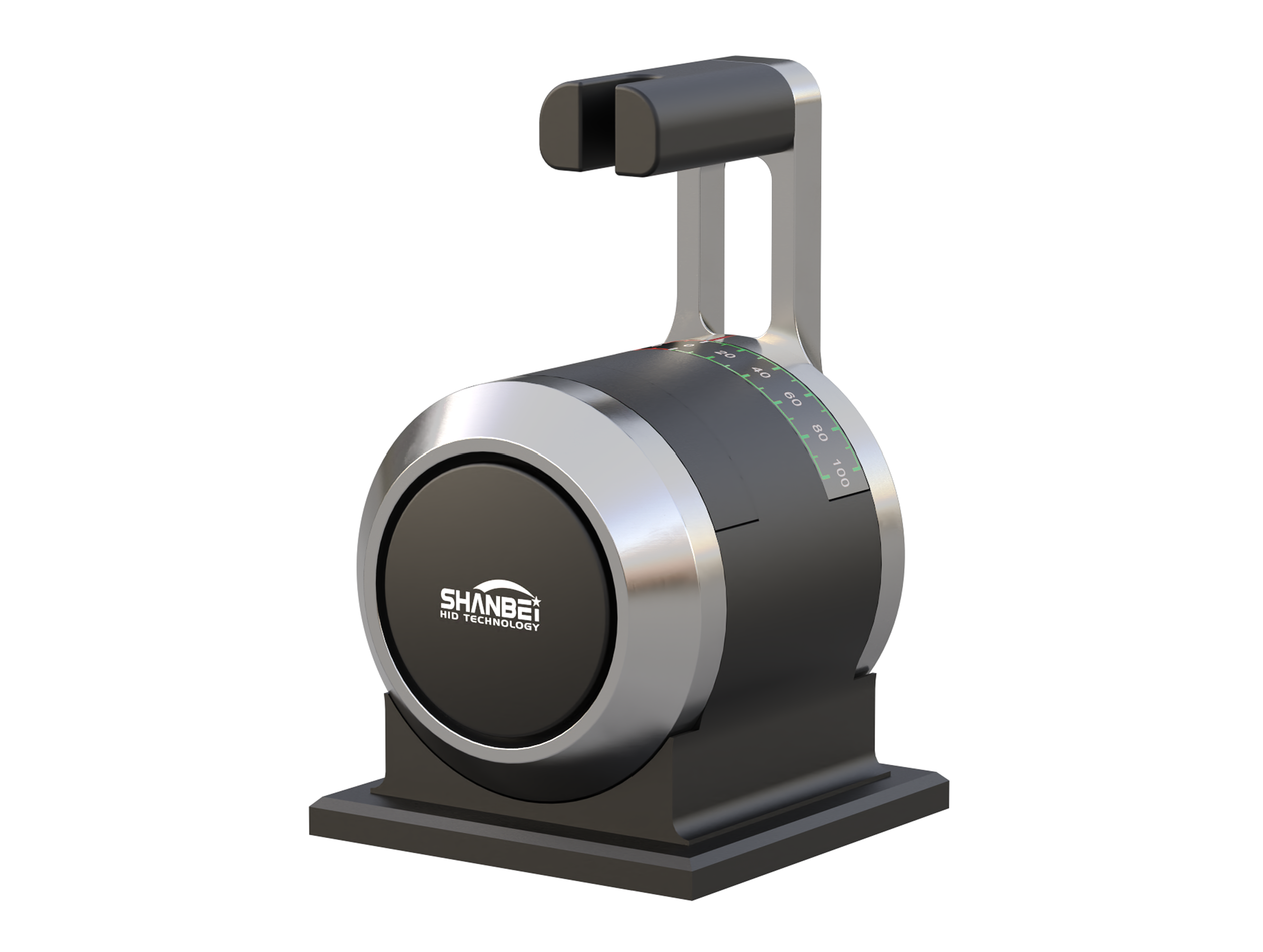

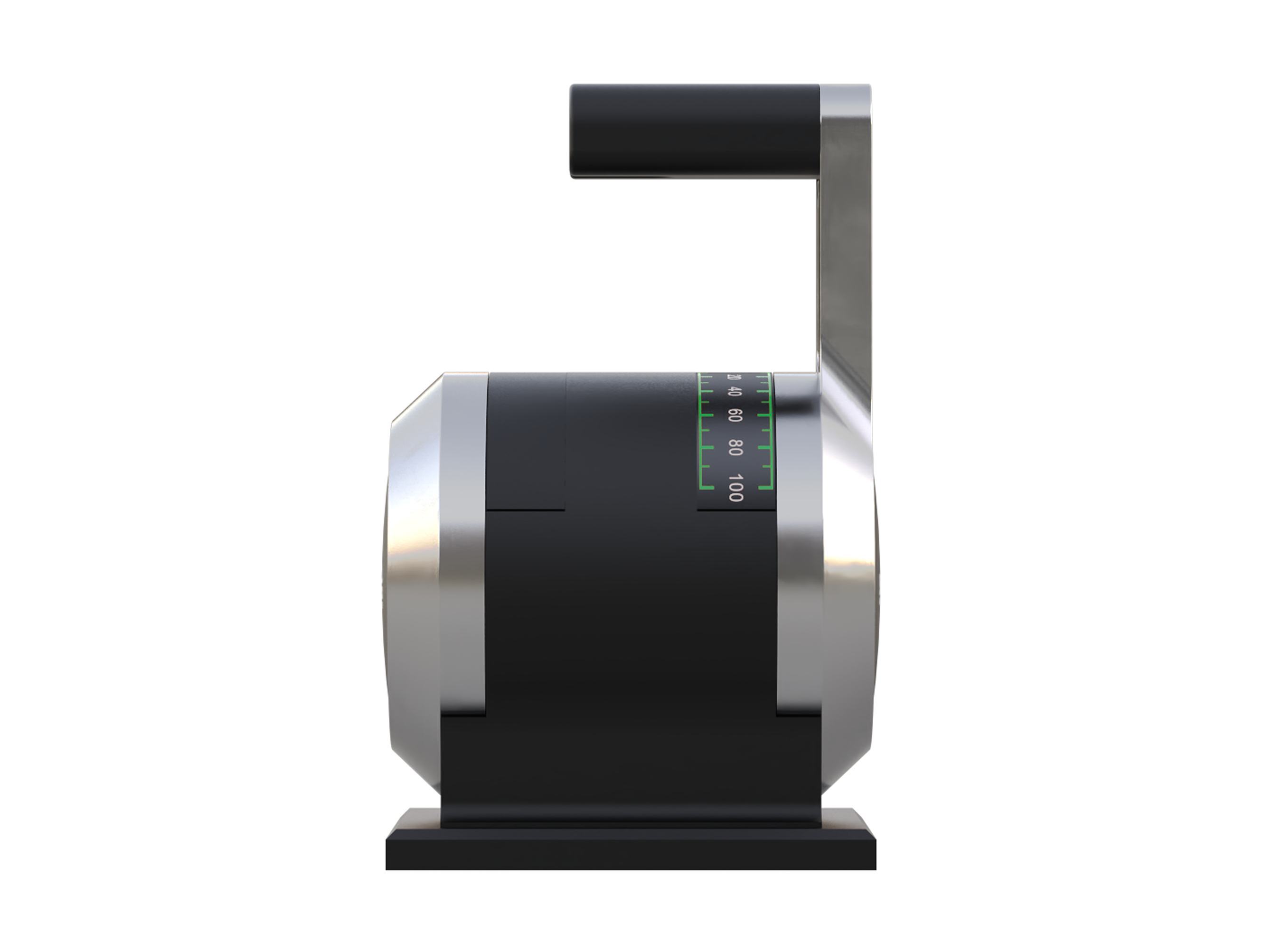

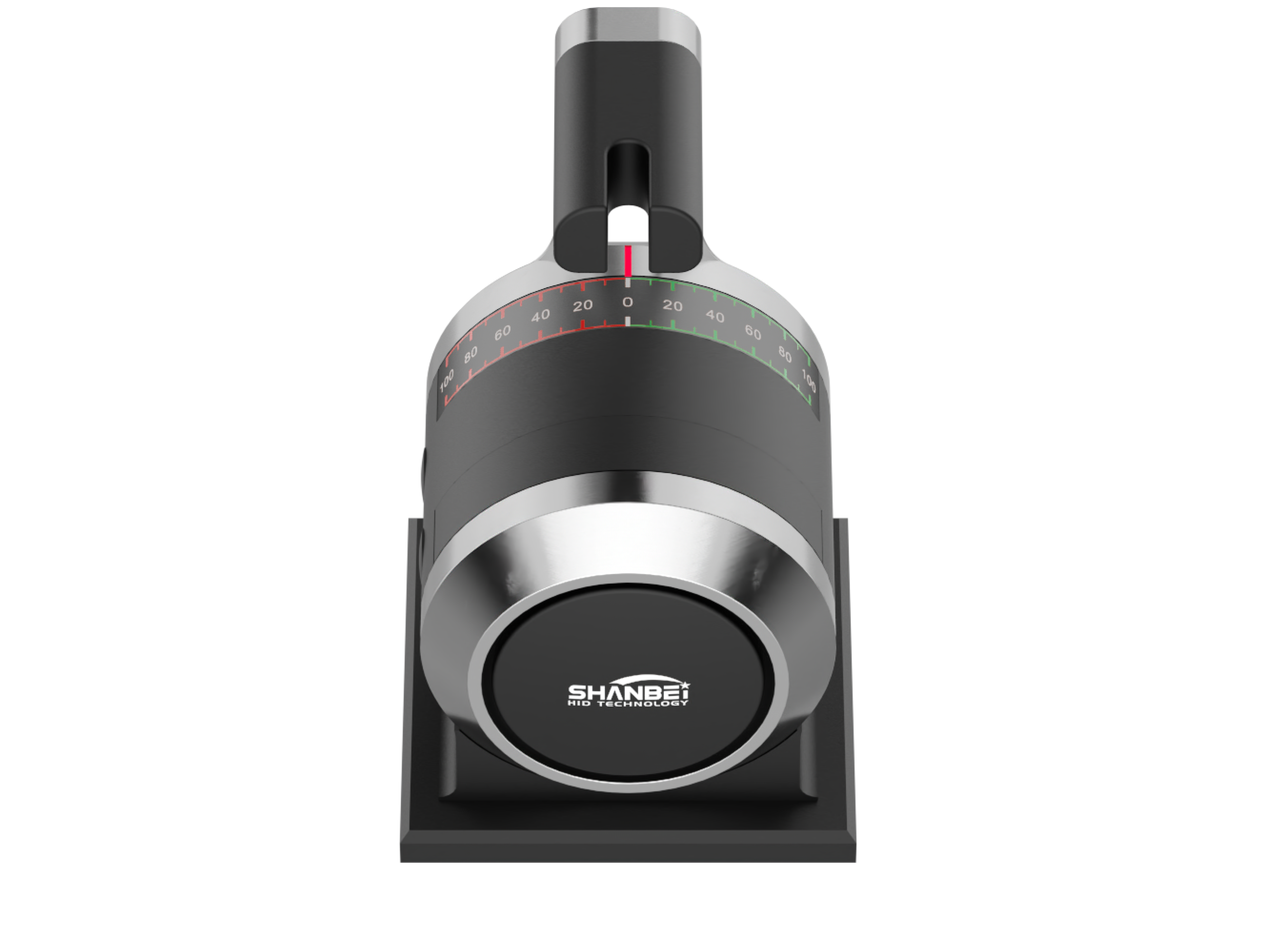

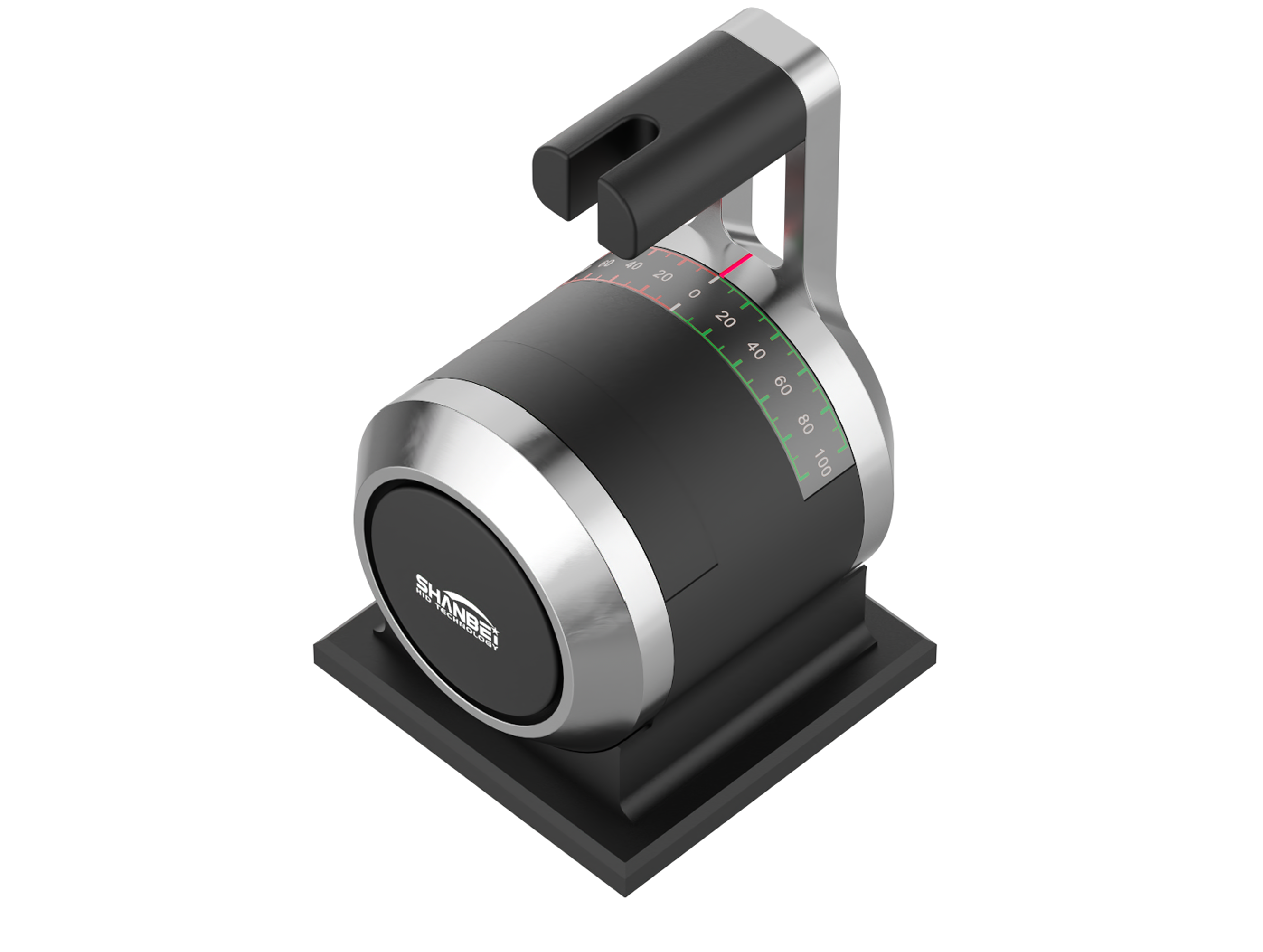

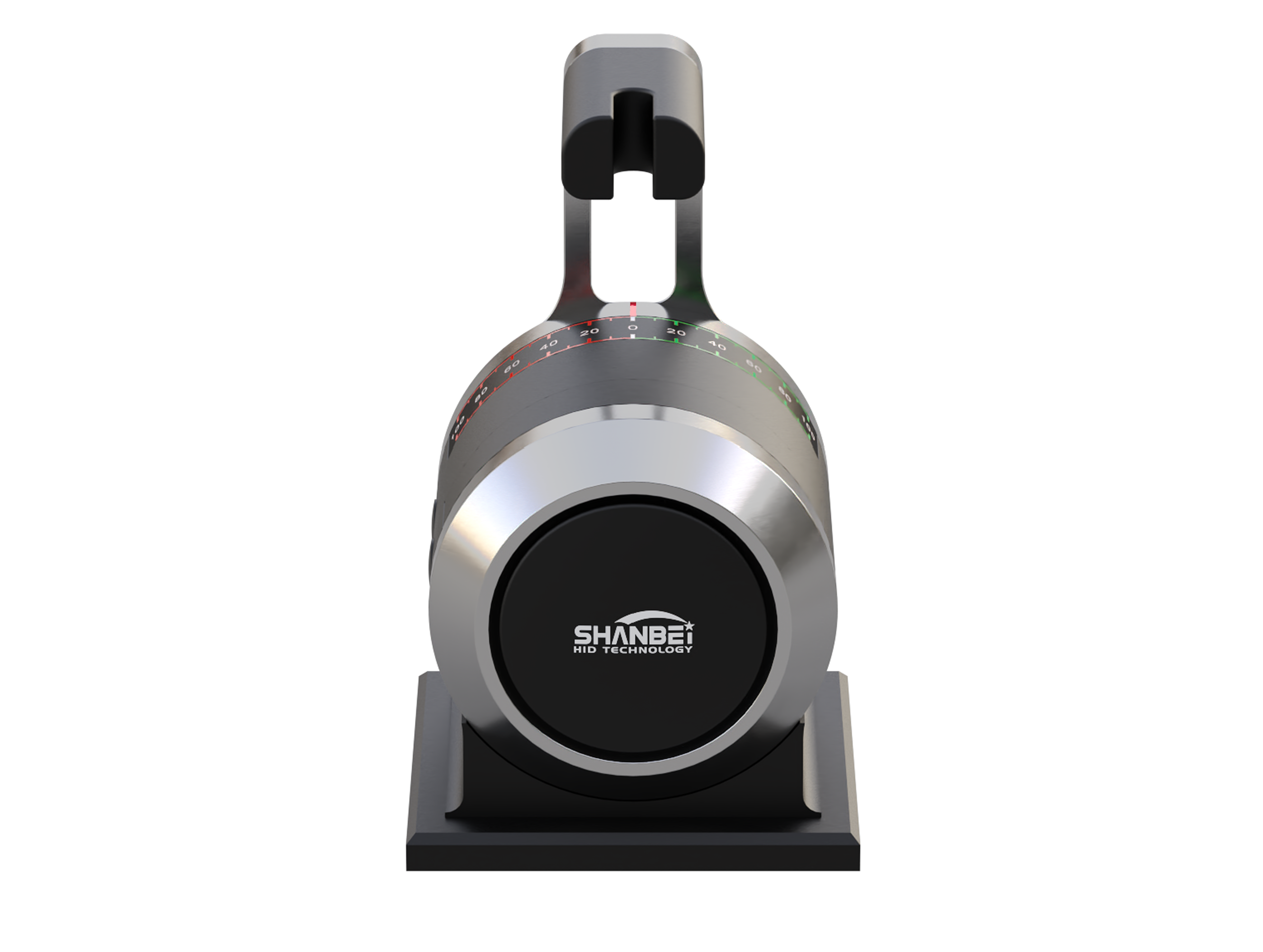

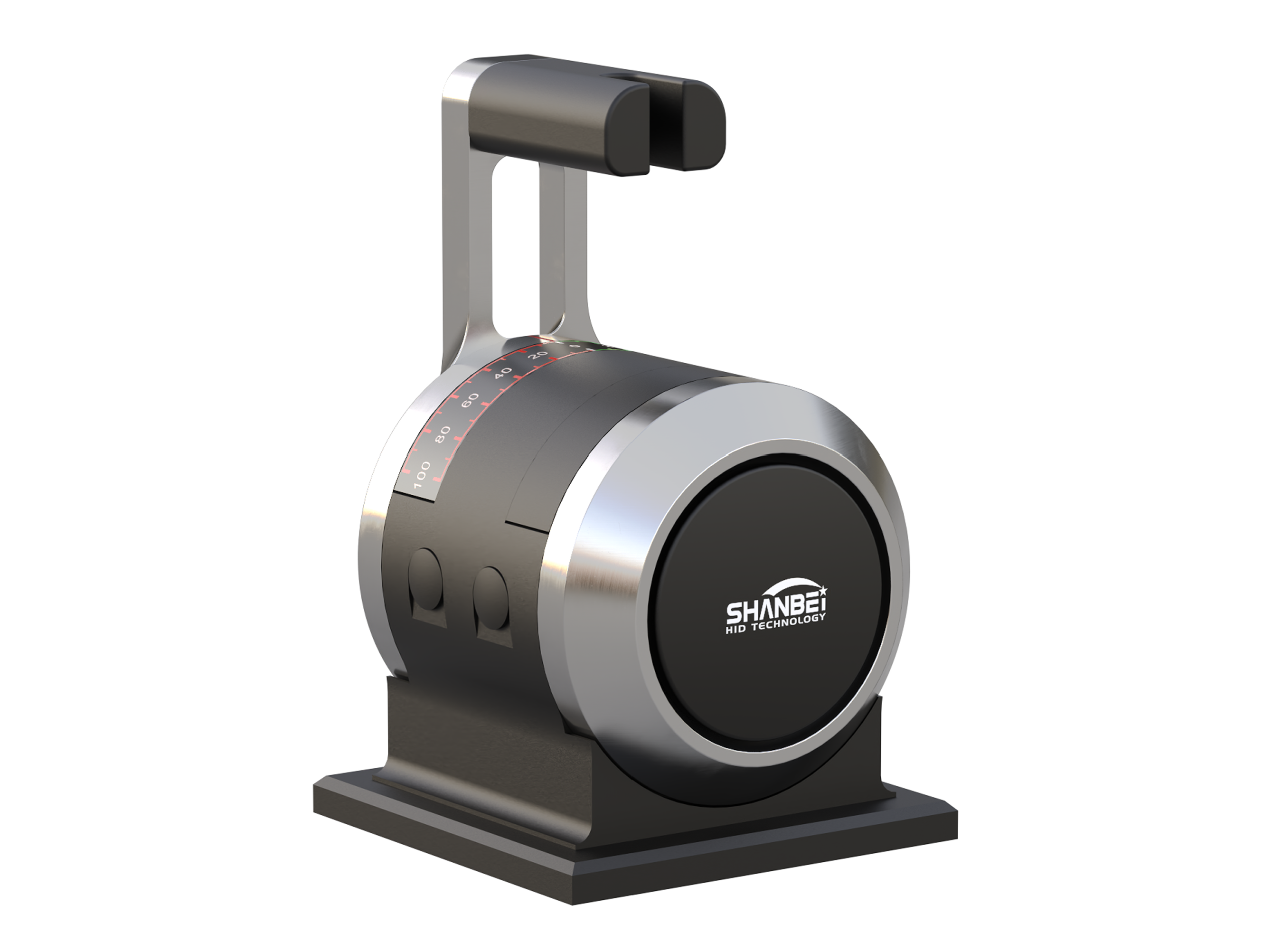

WLF-100C

Thruster control lever

WLF-100C thruster control lever, used for ship single and double side push control.
Contact Us +86 13186888051
Overview > Feature > Parameter > Customized > Cccessory > Download

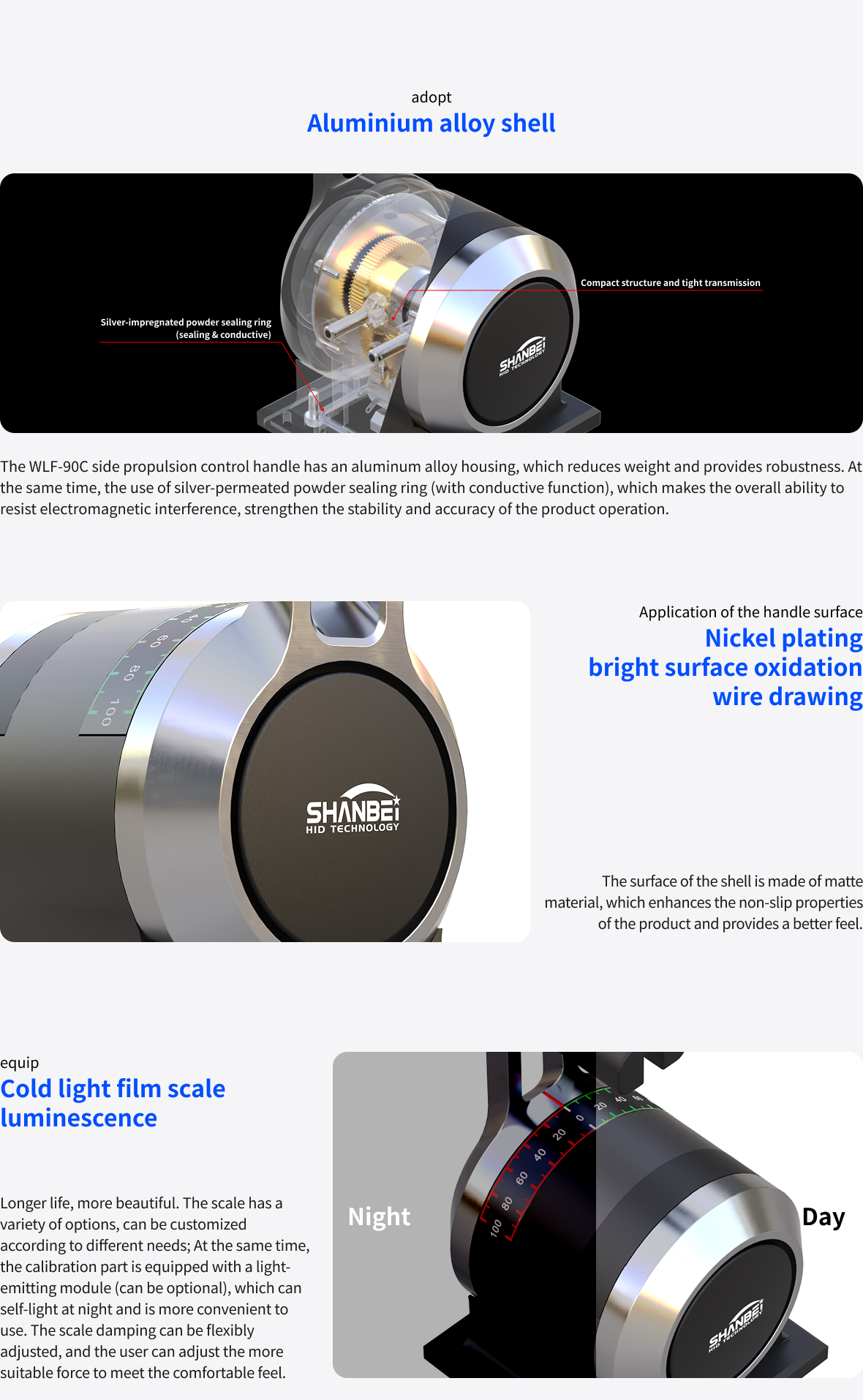

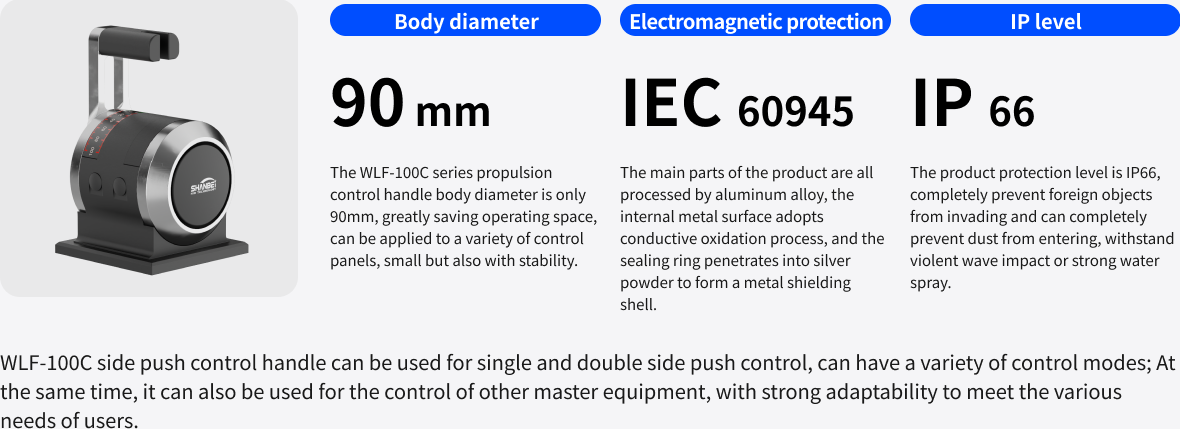

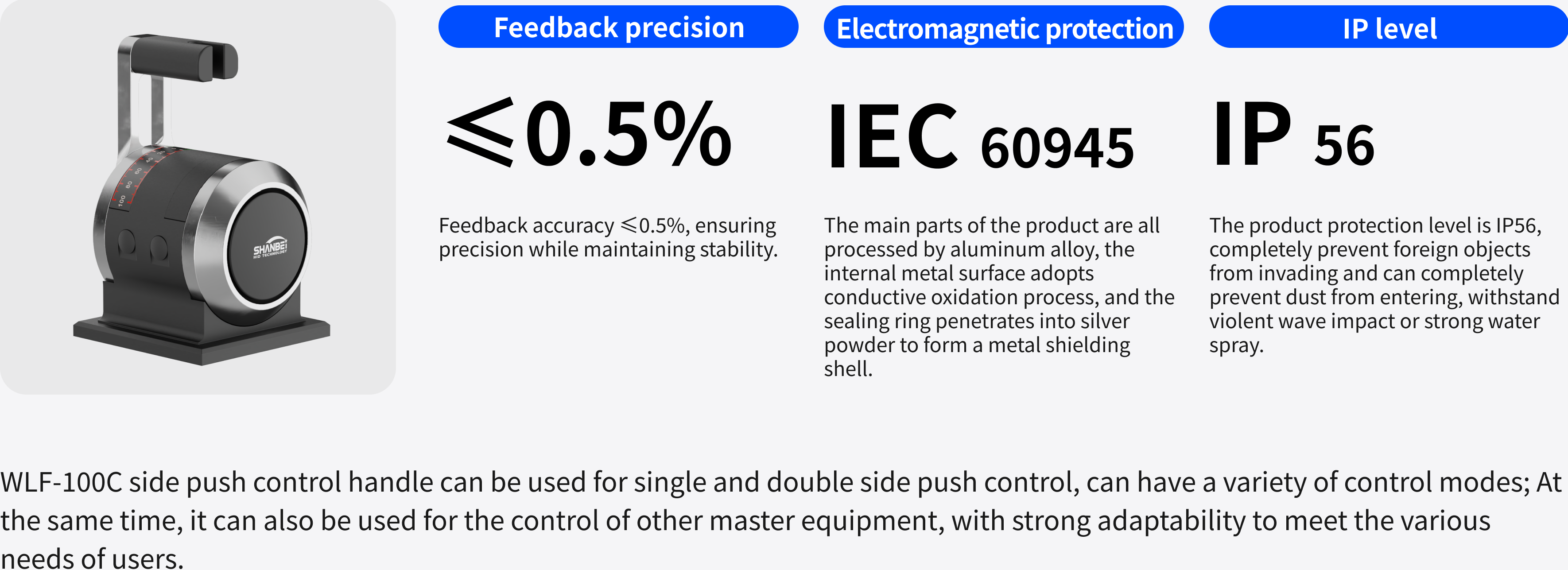

FEATURES

Slice 283.png

Slice 284.png

Slice 285.png

PARAMETER

Supply voltage
18~26VDC
Potentiometer
5KΩ

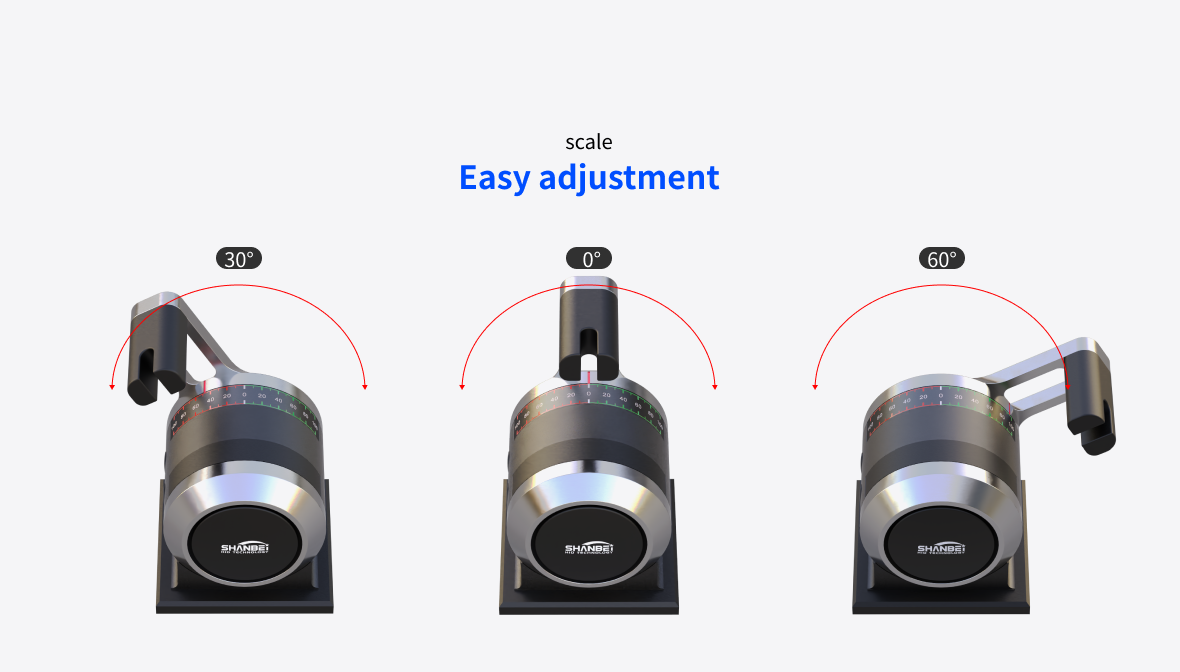

Operating range
±60°
IP lever
IP56
Weight
1.5~4.0kg(varies with configuration)
Test standard
IEC60945
Operating temperature
5℃~55℃

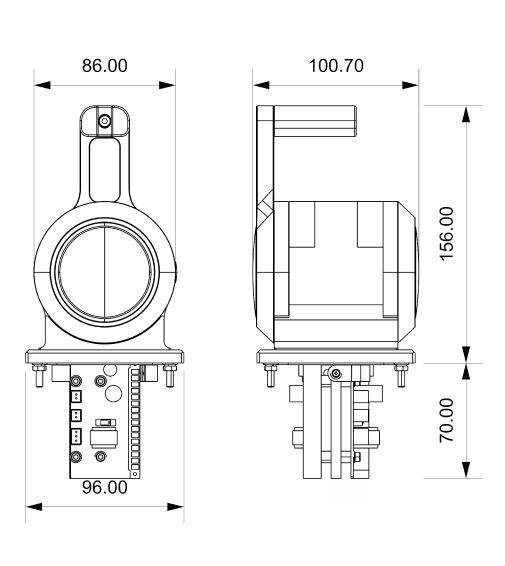

Install
4×M4 stud, panel thickness < 10mm
Wiring
16 1/0 terminal block

CUSTOMIZATION

Number of handles
Single thrustDouble thrust
Grip type
Aluminium alloyStainless steel
Mounting panel
96*96None
Rotation range
±60°0~60°
Scale
ChineseEnglishNumber
Gear feedback
Neutral onlyEach file has feedback
Output signal
5K potentiometer4~20mA
Backlight adjustment
0~5V0~24VPWM
Motor shaft synchronization
YesNo
Driving mode
FWDAFT

ACCESSORIES

DATA DOWNLOAD

Download
