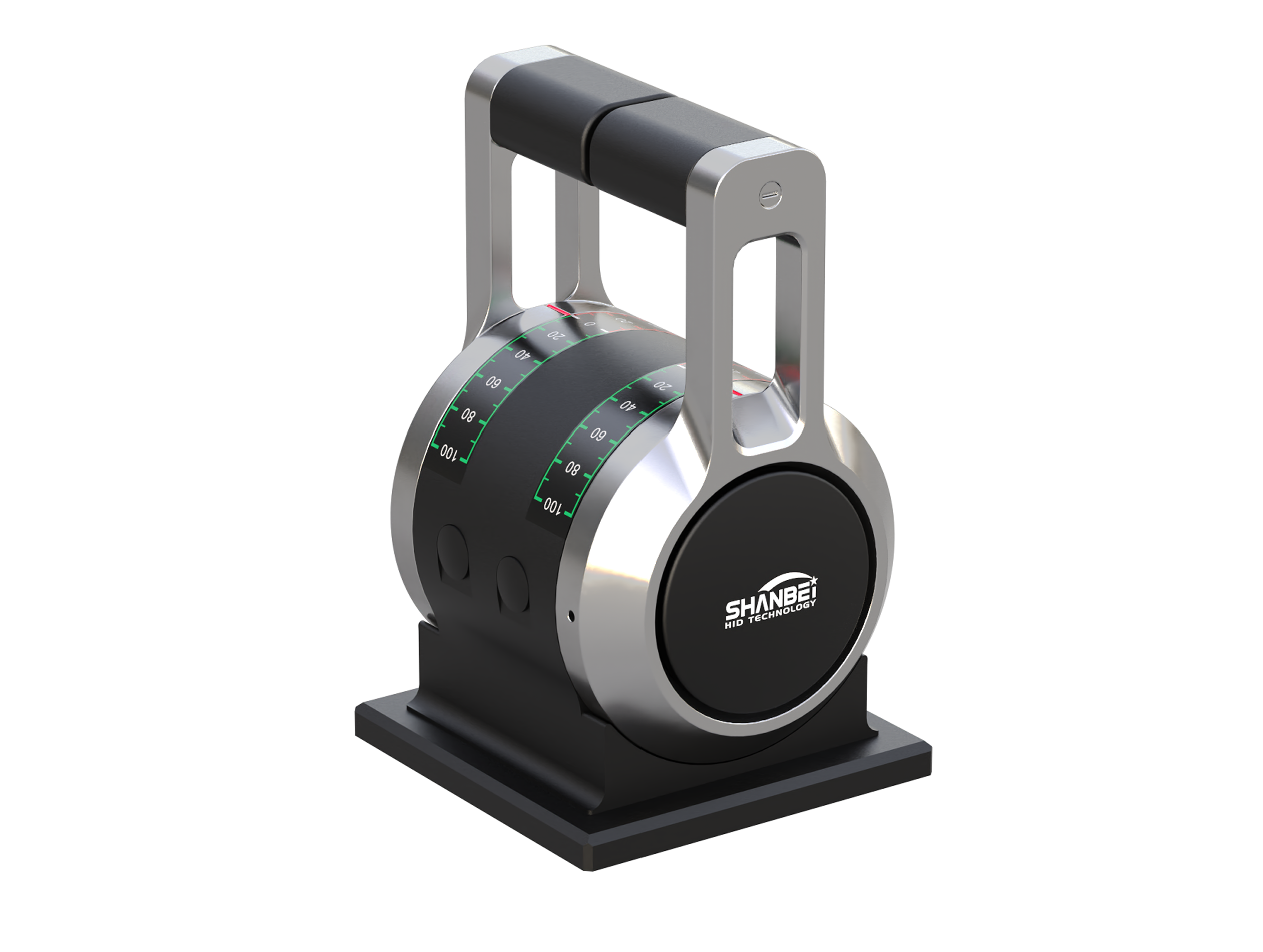

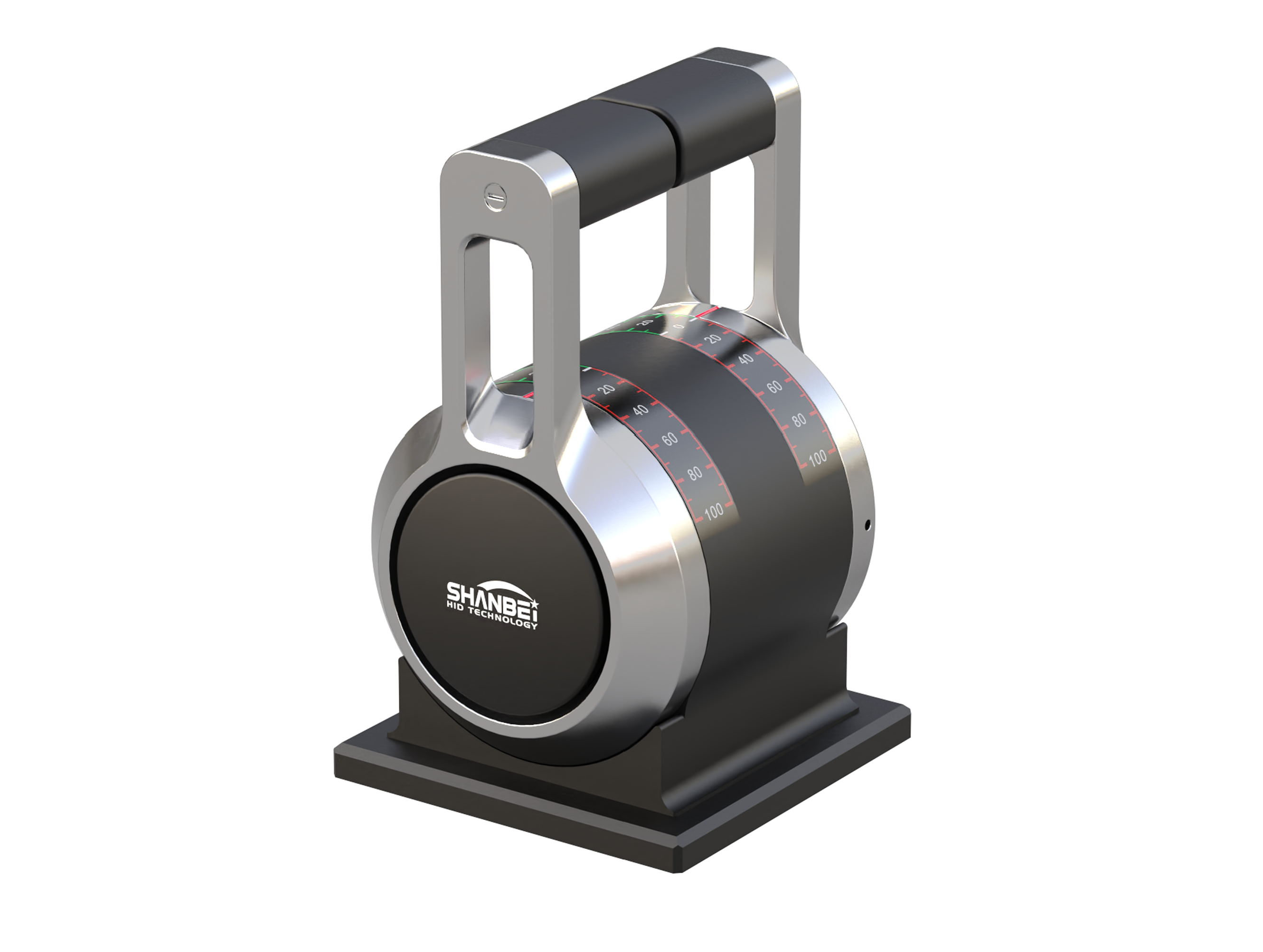

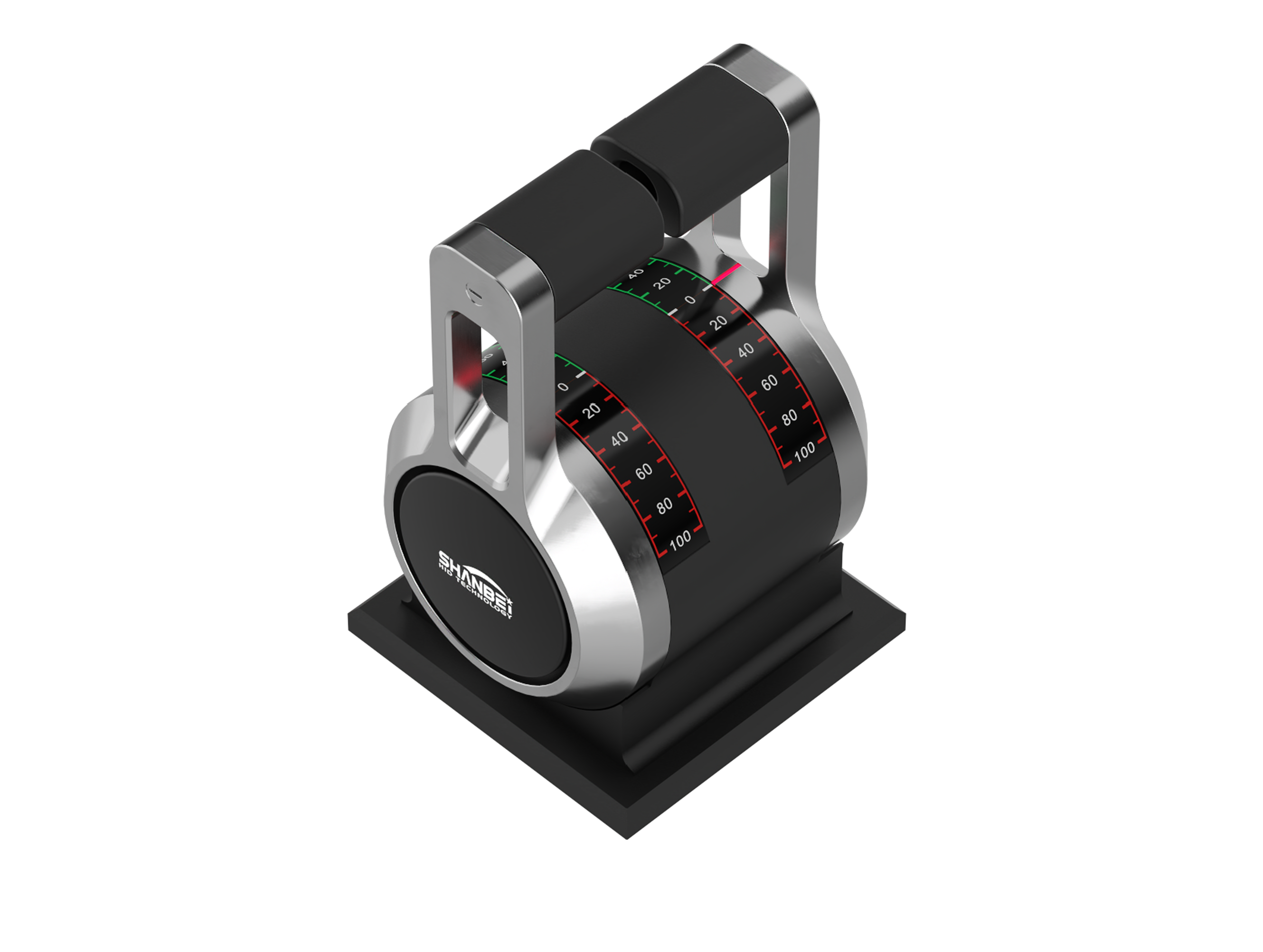

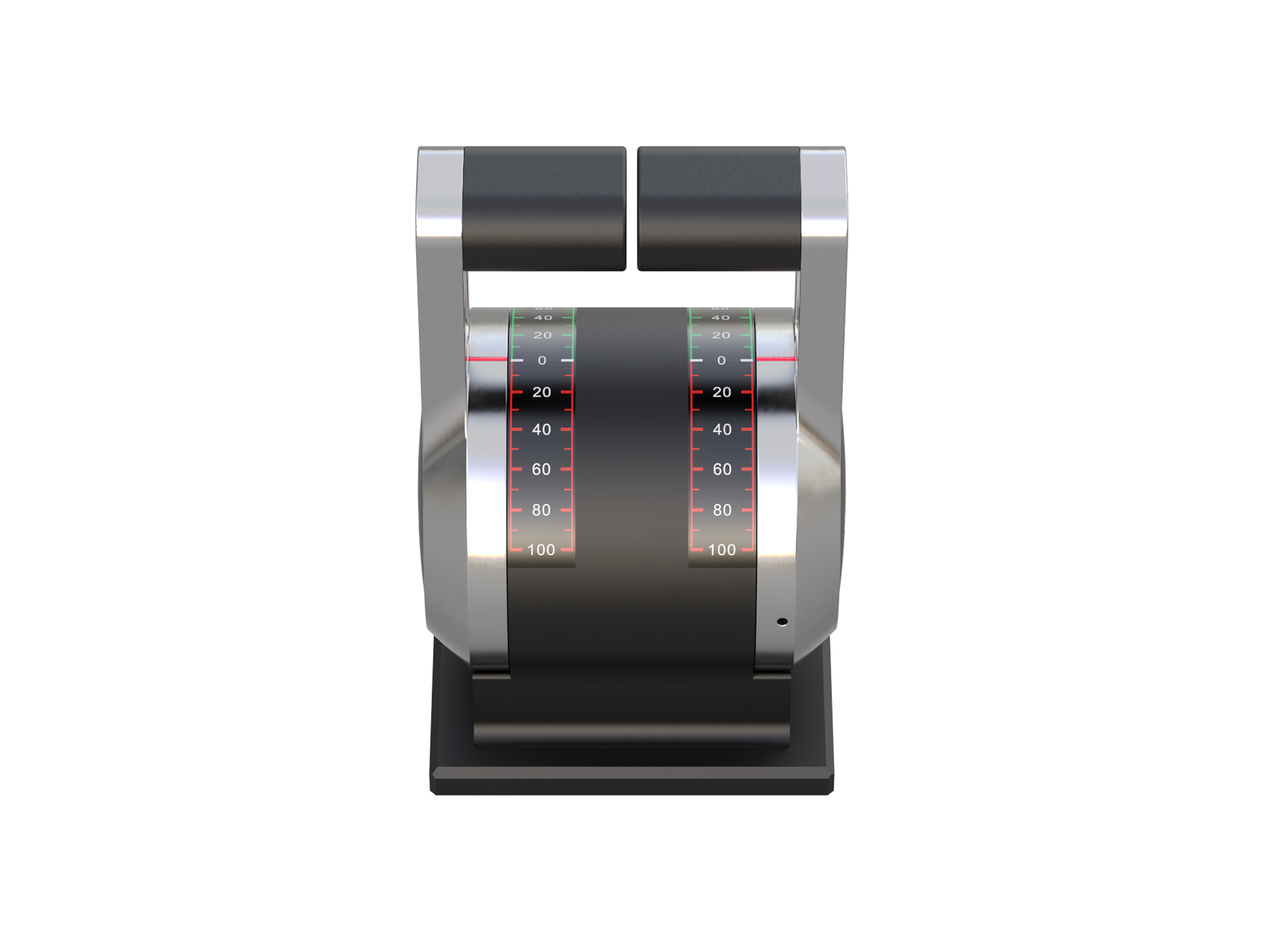

WLF-100
Propulsion control lever
The WLF-100 propusion control lever is suitable for single and dual engine control of high-end ship propulsion systems such as new energy ships and yachts.
Chrome plated appearance, scale backlight indication, adjustable damping and gear feedback, du
Contact Us +86 13186888051
FEATURES
PARAMETER
-
Supply voltage18~26VDC
-
Potentiometer5KΩ
-
Operating range±60°
-
IP leverIP56
-
Weight1.5~4.0kg(varies with configuration)
-
Test standardIEC60945
-
Operating temperature5℃~55℃
-

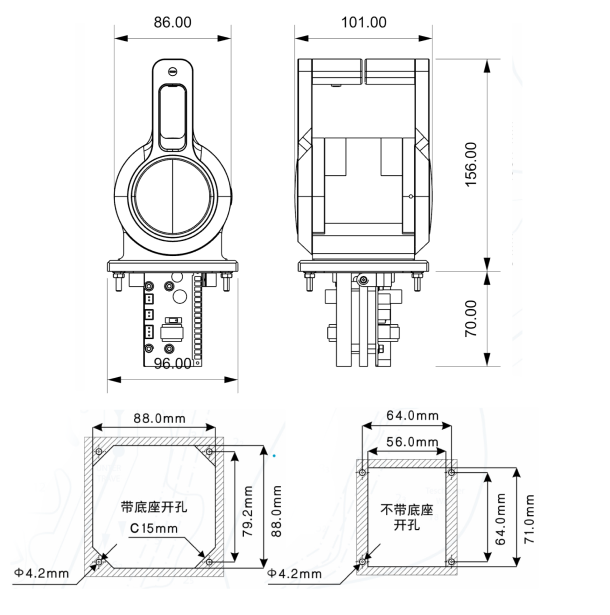

Install4×M4 stud, panel thickness < 10mm
-
Wiring16 1/0 terminal block
OPTIONS
-
StyleStainless steel chrome platingBlack spray coating
-
TypeDouble 100DLeft 100LRight 100R
-
ScalePercentChineseEnglish
-
Rotation range±60°0~60°-15~60°
-
Clack feedbackNeutral only3 positions11 positions
-
Output signal5K potentiometer4~20mAForward and reverse passive switch
-
Backlight adjustment0~24VDimmer
-
Motor shaft synchronizationNoYes
-
Driving modeFWDAFT
