WFU-500

Follow-up steering system

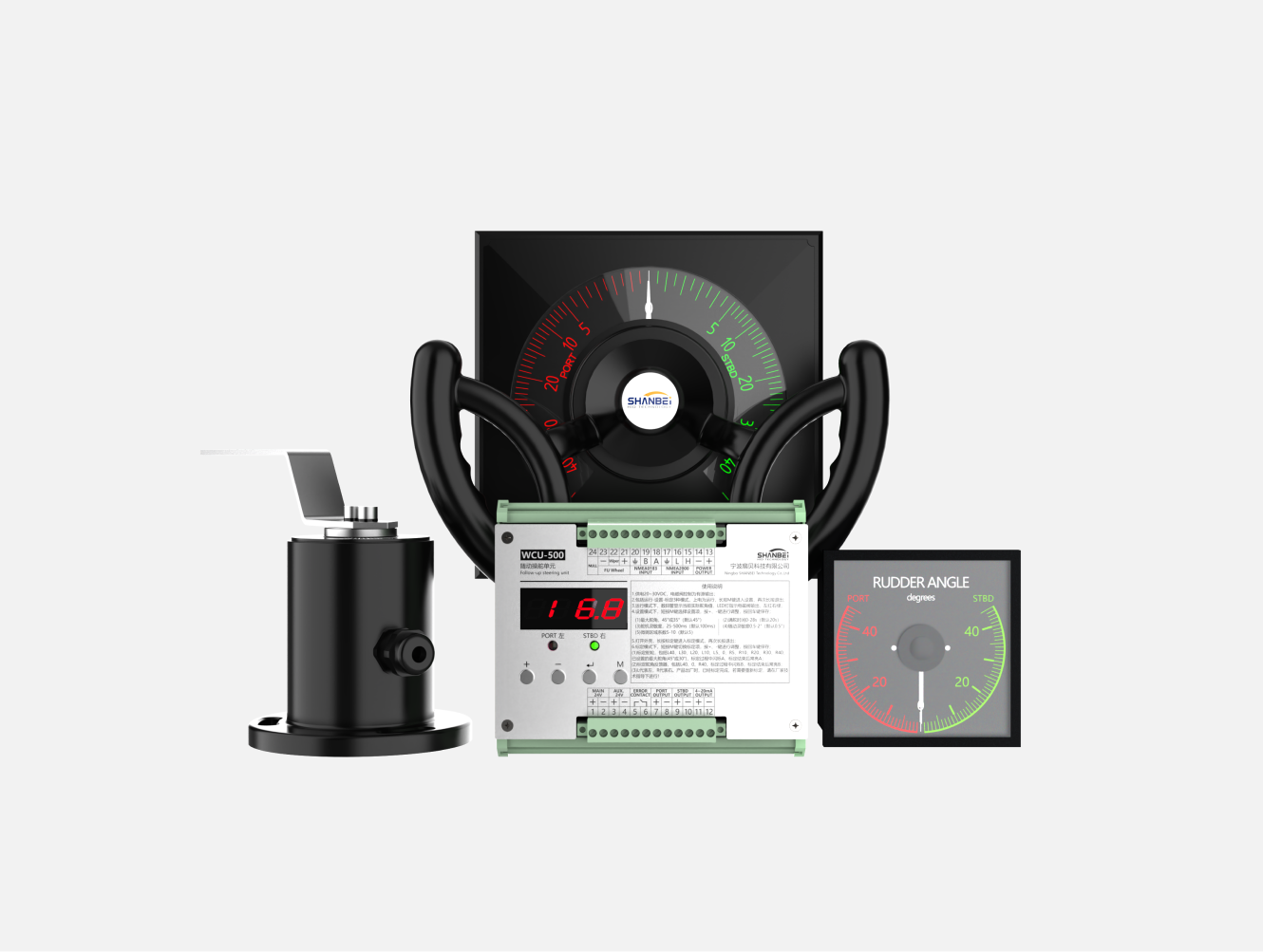

The WFU-500 follow-up steering control system is used to transmit steering commands from the cab to the power equipment of the servo device. It consists of a follow-up steering wheel, a steering angle feedback device, a steering angle meter, a follow
Contact Us +86 13186888051
Overview > Feature > Parameter > Customized > Cccessory > Download

FEATURES

Slice 289.png

Slice 290.png

Slice 291.png

PARAMETER

Supply voltage
18~26VDC
Power dissipation
<1W
Indicating accuracy
0.5°
Steering range
±45°
IP lever
IP56 or IP22
Solenoid valve signal
24VDC
Communication signal
CAN
Maximum communication distance
200m
Operating temperature
0~55℃
Storage temperature
-20~70℃

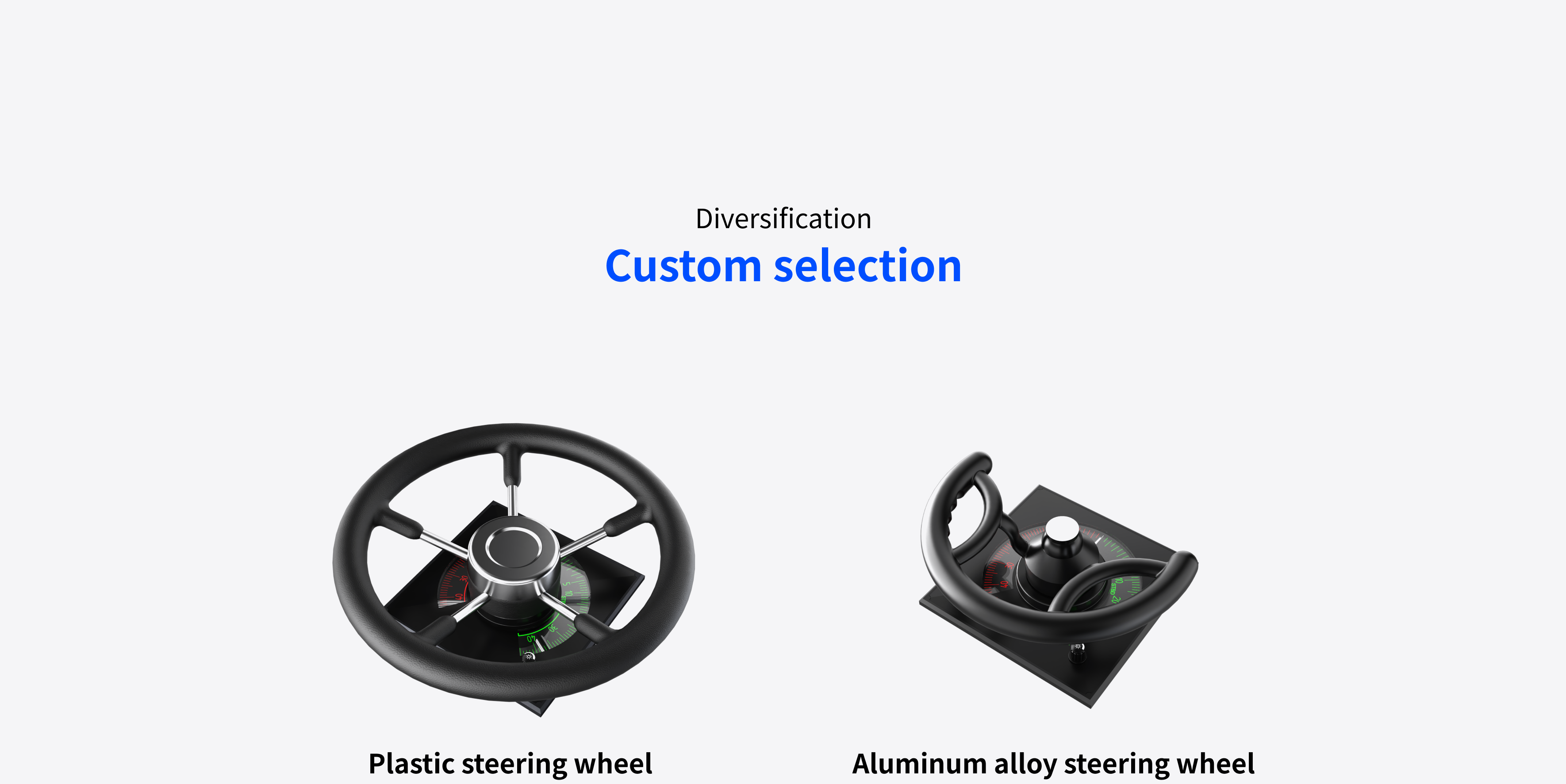

CUSTOMIZATION

Type
Standard
Dimension
Standard

ACCESSORIES

DATA DOWNLOAD

Download
