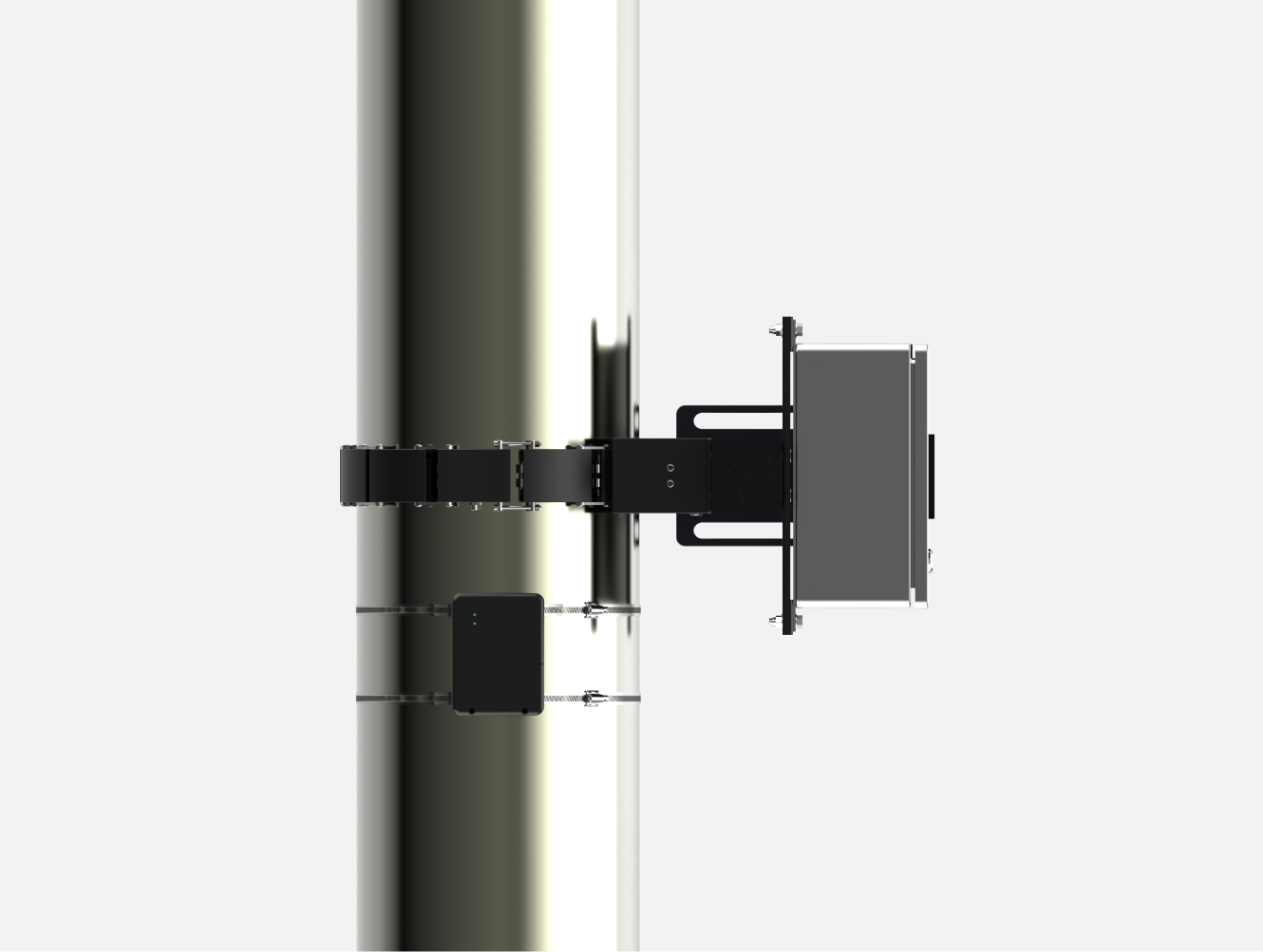

WPM-P

Shaft power meter

The WPM-P shaft power meter is an instrument used for long-term continuous measurement of speed, torque, power, and thrust (optional). It is designed according to maritime regulations and can be used for power monitoring of ship main engine shaft sys
Contact Us +86 13186888051
Overview > Feature > Parameter > Customized > Cccessory > Download

FEATURES

Slice 289.png

Slice 290.png

Slice 291.png

PARAMETER

Supply voltage
24VDC，
110-230VAC，
50Hz
Power dissipation
<15W
Power supply protection
Anti-static, anti-surge
Interactive interface
Tachometer, power meter
Communication interface
RS485，CAN Bus
Communication protocol
NMEA0183，
NMEA2000，
Modbus-RTU
Operating temperature
5~55℃
Storage temperature
-25~70℃
IP lever
IP65
System measurement accuracy
0.1%+Ke（Ke：The total error of axial modulus constant and axial diameter measurement）
System repeatability accuracy
0.05%

CUSTOMIZATION

Whether to include display
YesNo
Interactive interface
Standard
Stator type
Shaft diameter 130~159mmShaft diameter 160~209mmShaft diameter 210~252mmShaft diameter 253-345mmShaft diameter 346~464mmShaft diameter 465~530mmShaft diameter 531~780mmShaft diameter ＜130mmShaft diameter ＞780mm
