WSS-R106 (single potentiometer type)

Rudder angle feedback

The WSS-R106 rudder angle feedback device, also known as a rudder angle sensor or transmitter, is installed in the rudder compartment and can convert the angle and direction of the rudder blades into electrical or digital signals to send to the recei
Contact Us +86 13186888051
Overview > Feature > Parameter > Customized > Cccessory > Download

FEATURES

Slice 299.png

PARAMETER

Supply voltage
18~26VDC
Rotation range
±45°
Power dissipation
1W
Precision
0.5°

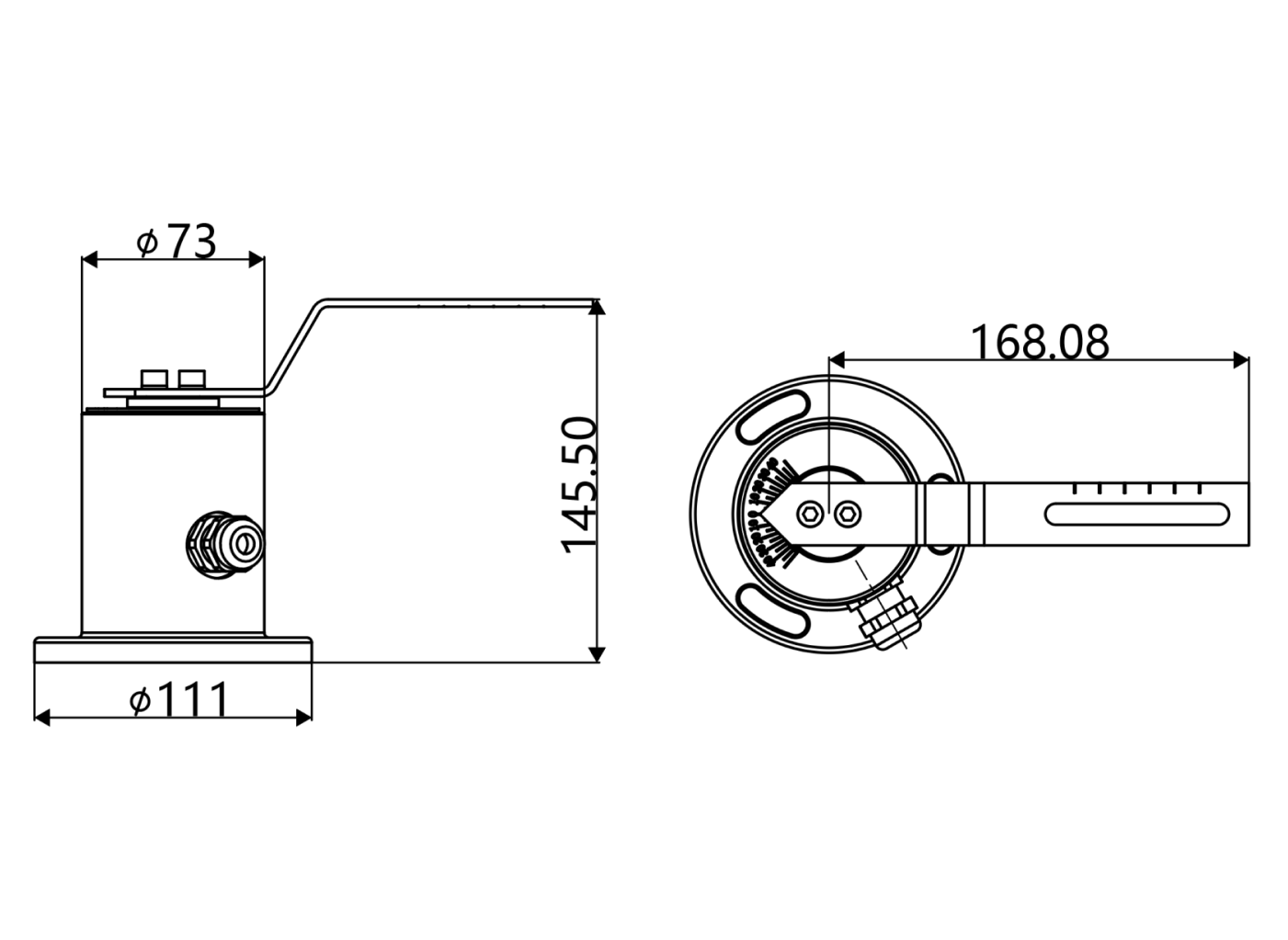

Dimension
223*111*145 (excluding rod)
Weight
650g(Cable not included)
Signal output
Potentiometer, CAN, RS422, analog output
IP lever
IP65
Transmission mode
Direct connection
Cable length
A 5-core shielded cable is configured with 20 Mbit/s

CUSTOMIZATION

Type
Standard
Dimension
Standard
Output signal
Potentiometer direct output4~20mA current output±10V voltage outputCAN bus outputRS422 bus output
Potentiometer specifications
1KΩ2KΩ5KΩ

ACCESSORIES

DATA DOWNLOAD

Download
