WLF-70
Azimuth control lever

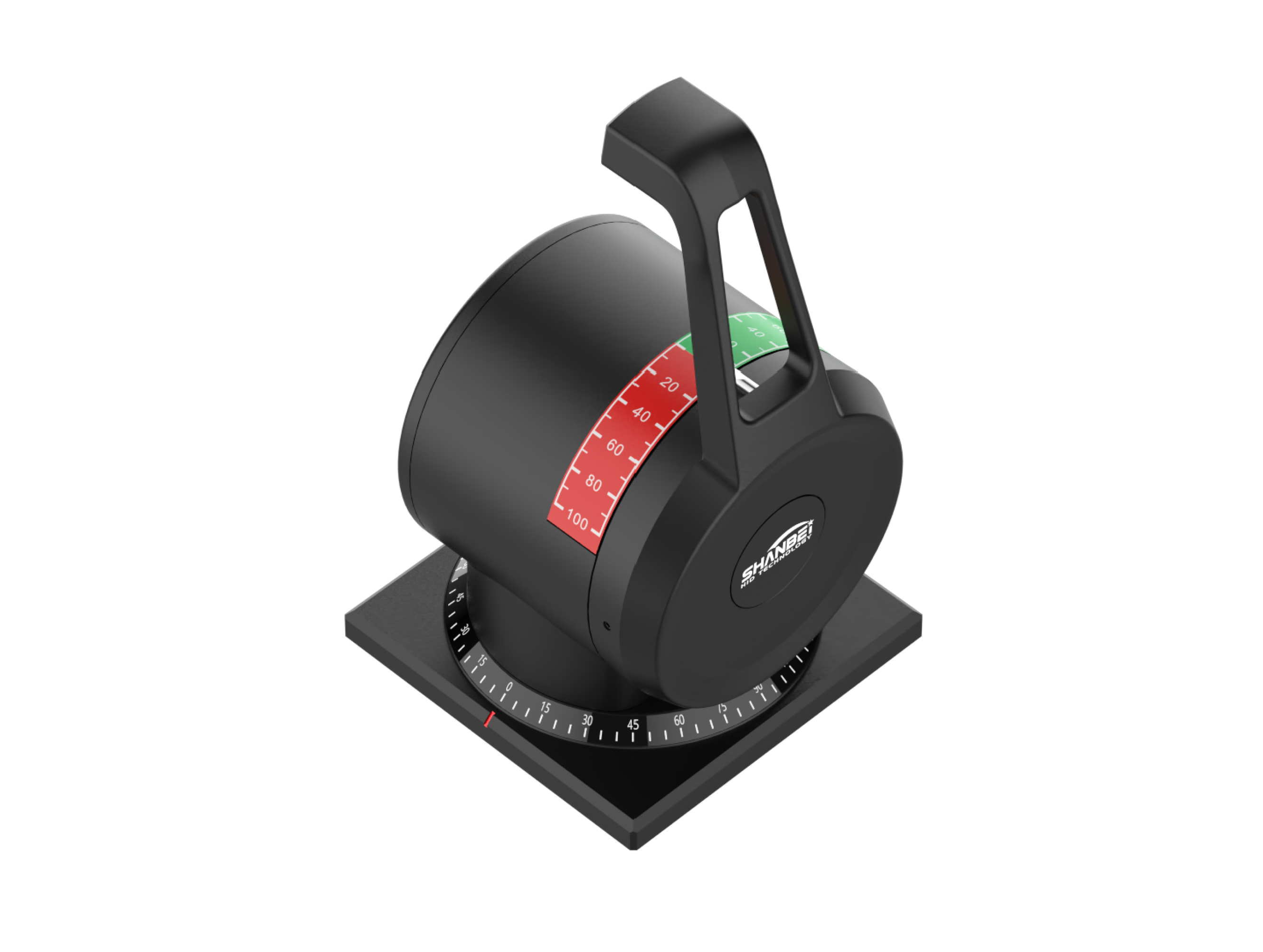

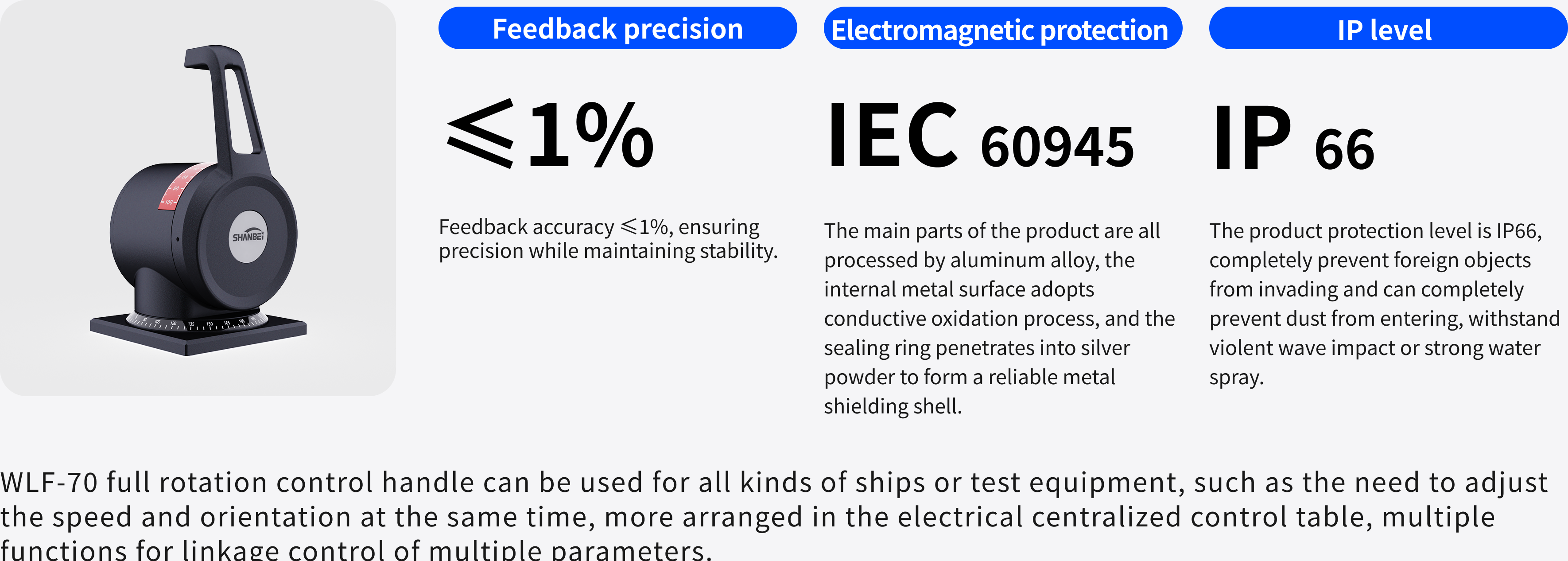

The WLF-70 Azimuth control lever is used for all kinds of ships or test equipment, such as the need to adjust the speed and orientation at the same time.
FEATURES
PARAMETER
-
Supply voltage24VDC
-
Y-axis range±60°
-
Y-axis potentiometer5KΩ，linearity
-
Y-axis stuck0°
-
Body materialAluminum alloy black spray
-
Gear materialCopper alloy
-
BacklightCold light film
-
IP leverIP56
-

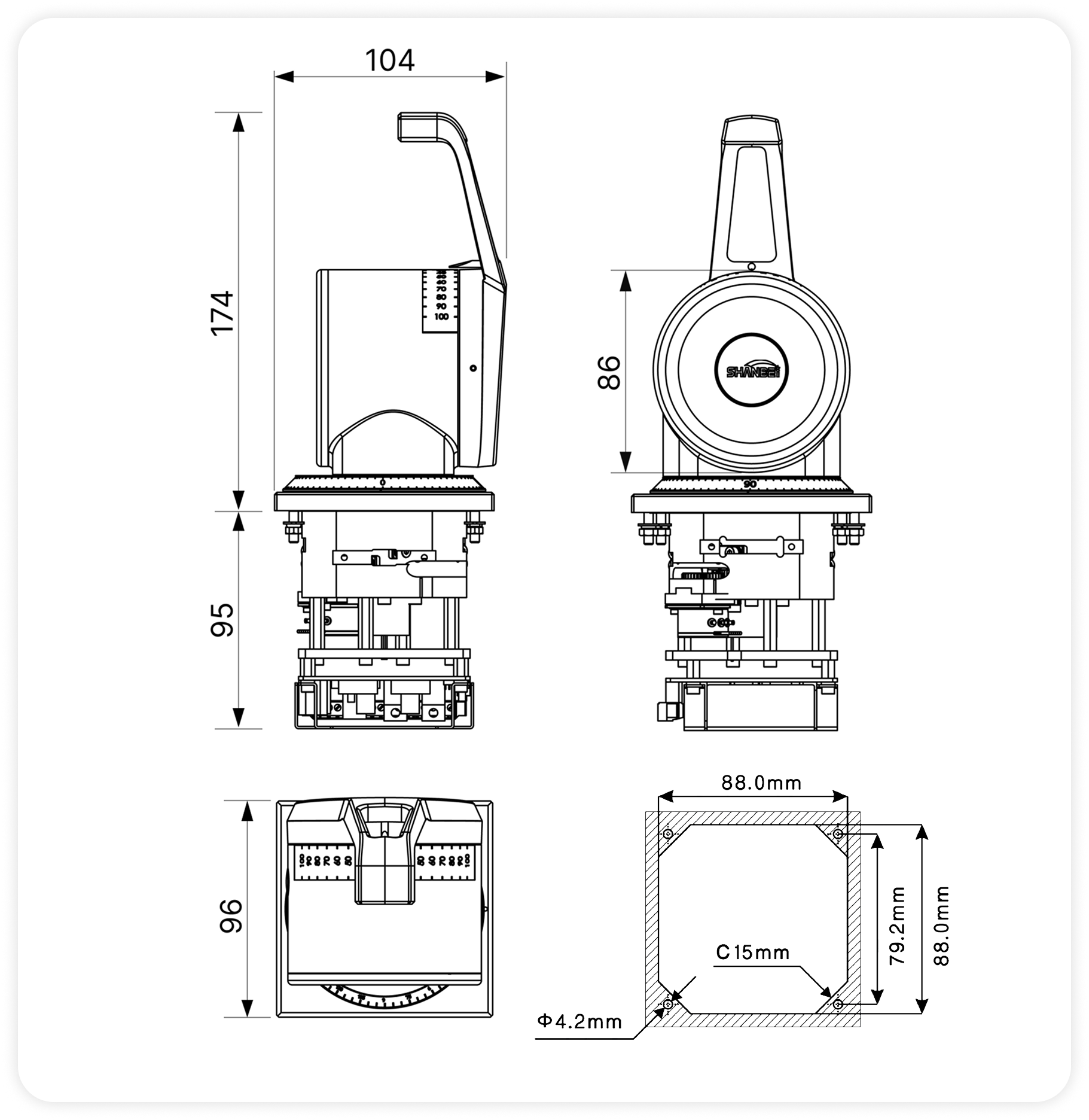

Install4XM4 stud, panel thickness 8mm
-
Z-axis range360° continuous rotation
-
Z-axis potentiometer5KΩ
-
Z-axis stuck0°、±90°、180°
-
Spindle materialStainless steel
-
Transmission modeGear drive
-
Dimming mode0~24V external power supply dimming
-
Linear tolerance±1.0%
-
Wiring16 I/O terminal blocks
OPTIONS
-
TypeLeft position 70LRight position 70R
-
RPM rotation range±60°0~60°-15~60°
-
Rudder rotation range±180°
-
Output signal4~20mA
-
LocationFWDAFT
ACCESSORIES
Mounting panel (round hole)
Driver circuit board
Graduated film
Dimmer button
