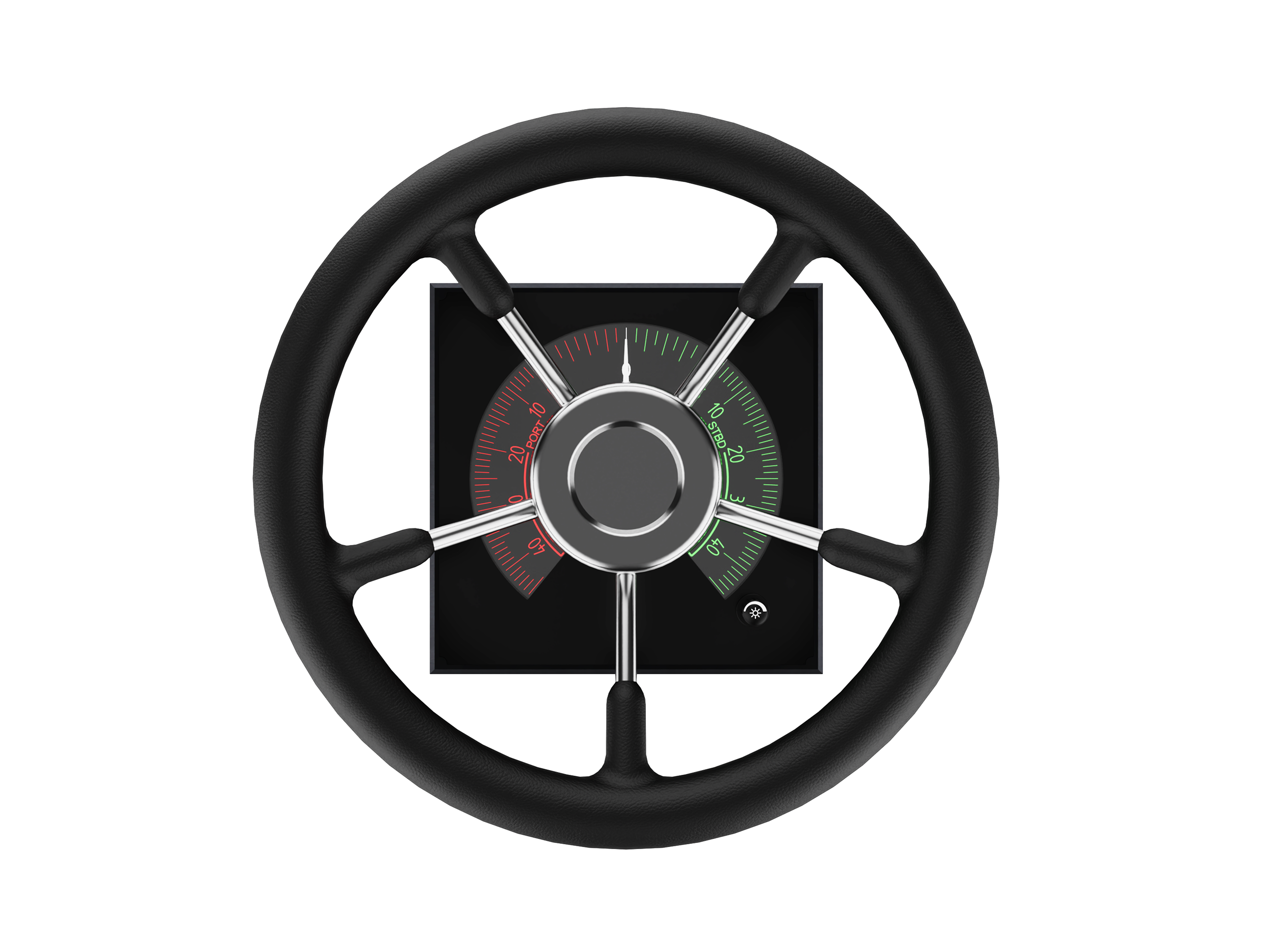

WLF-150
Rudder control
The WLF-150 rudder control hand wheel is used for the servo control of the ship's steering system.
FEATURES
PARAMETER
-
Supply voltage24VDC
-
Potentiometer5KΩ
-
IP leverIP56
-
Weight2.5~3.5kg(Different types of hand wheels)
-
Test standardIEC60945
-
Operating temperature5℃~55℃
-

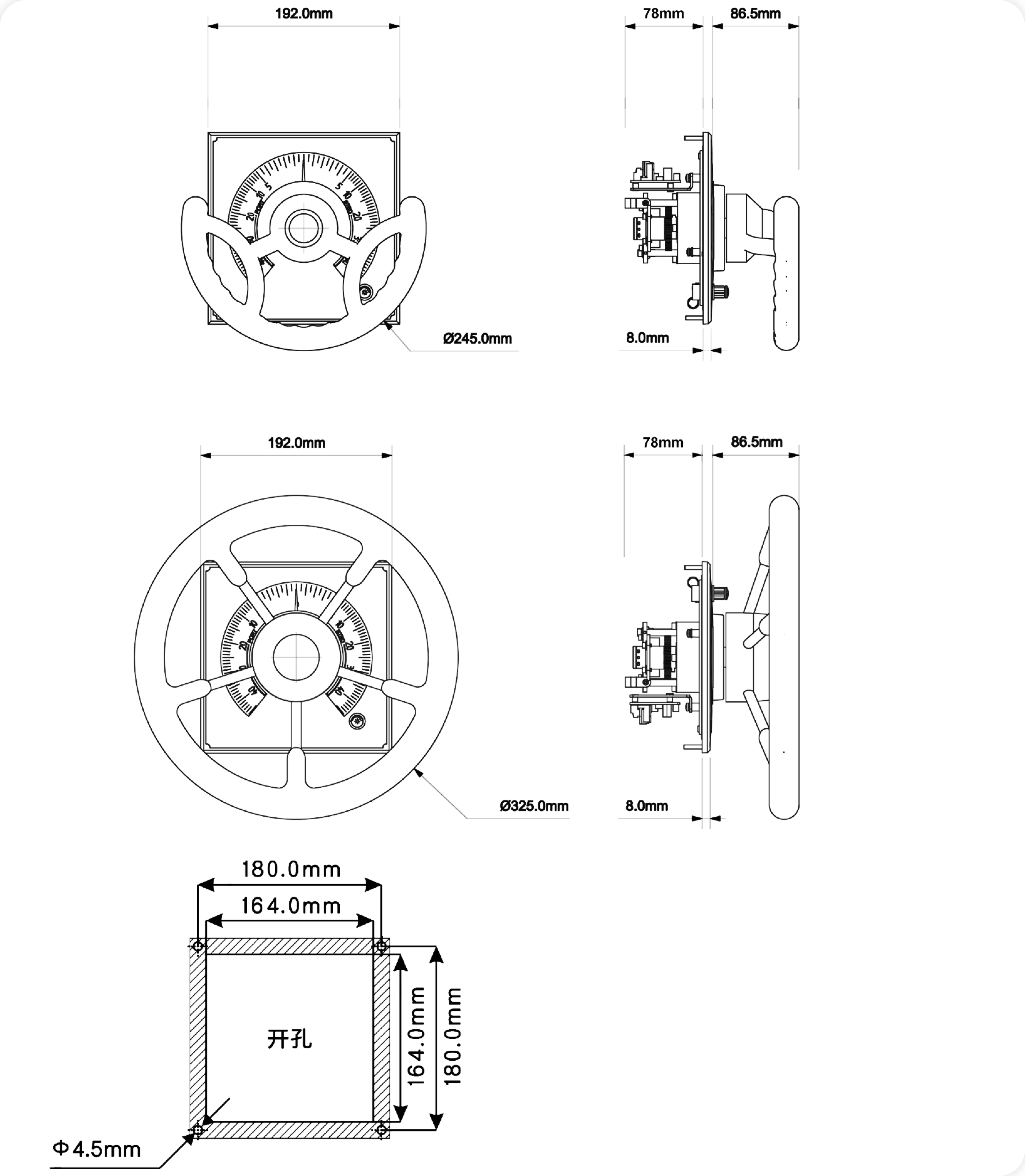

Install4×M4 stud, panel thickness < 10mm
-
Connection mode16 bit terminal
-
Rotation range±140°【±45° Uniform】 ±140°【±45°(±5° wider)】 ±140°【±50° Uniform】 ±140°【±100%】 ±90°【±90° Uniform】
OPTIONS
-
Stylealuminum alloy 150Aplastic 150P
-
Number of channelsSingleDouble
-
Output signal5K potentiometer4~20mA
-
Motor shaft synchronizationNoYes
ACCESSORIES
Driver circuit board
