WLF-90C
Thruster control lever

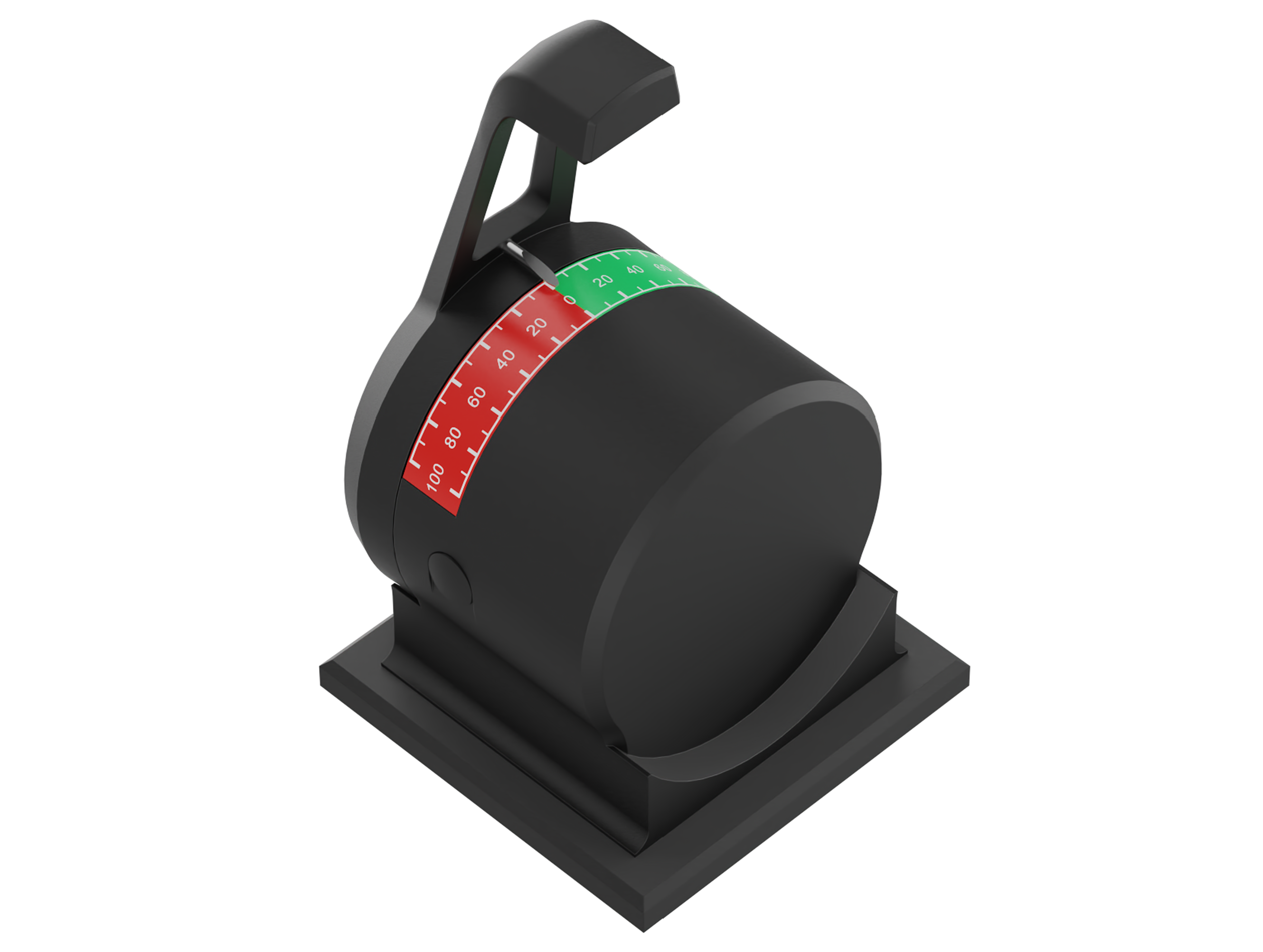

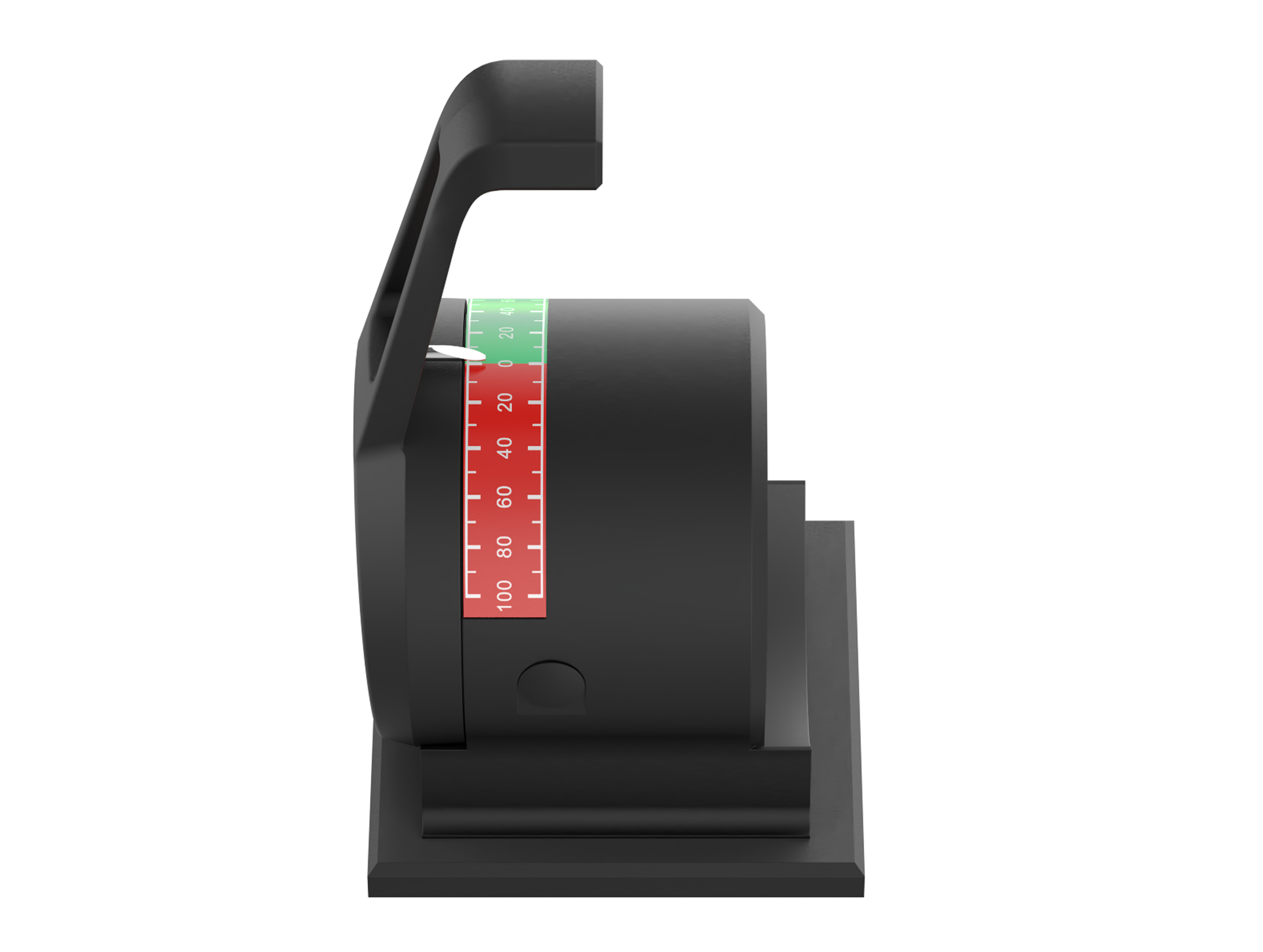

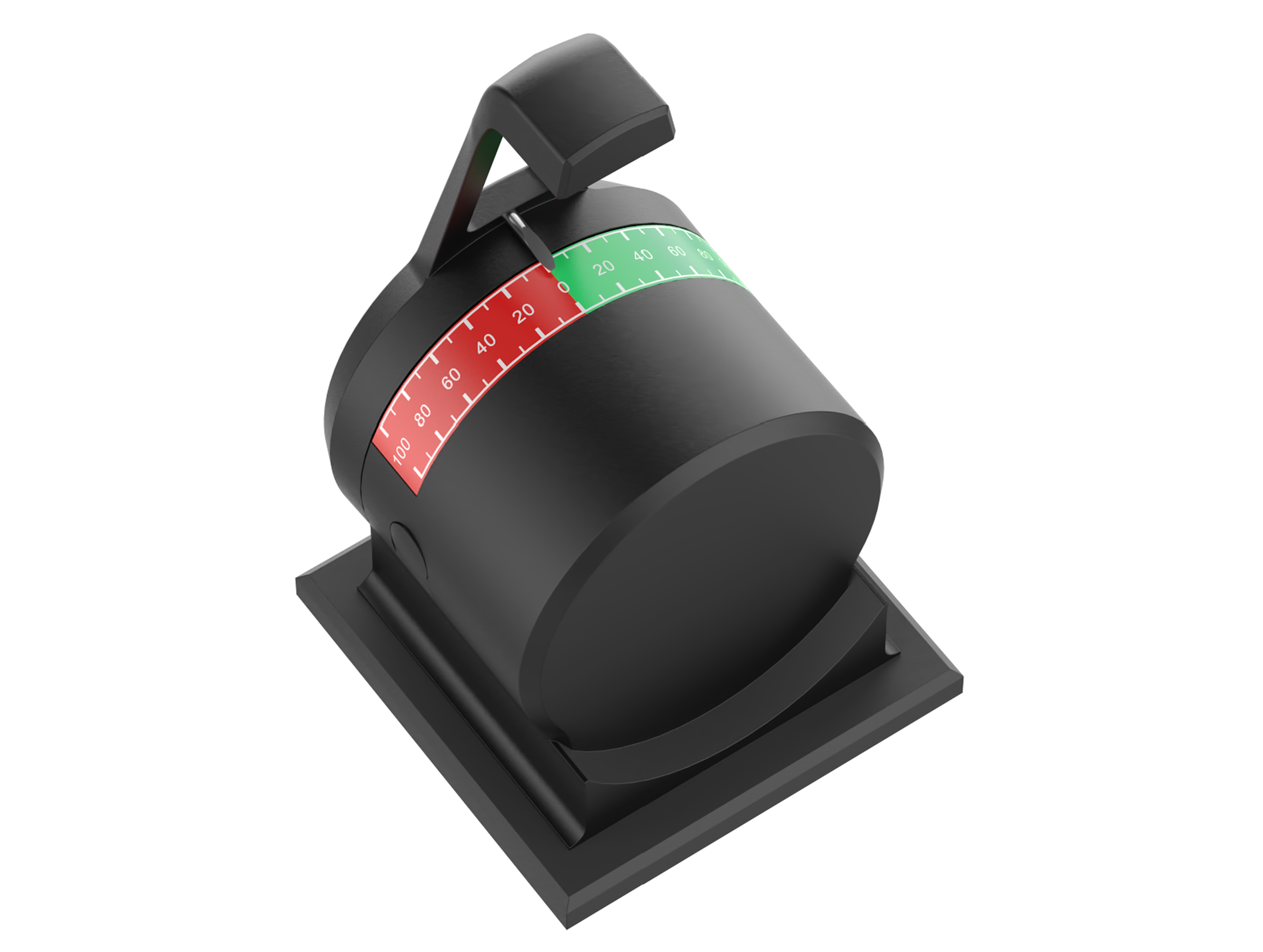

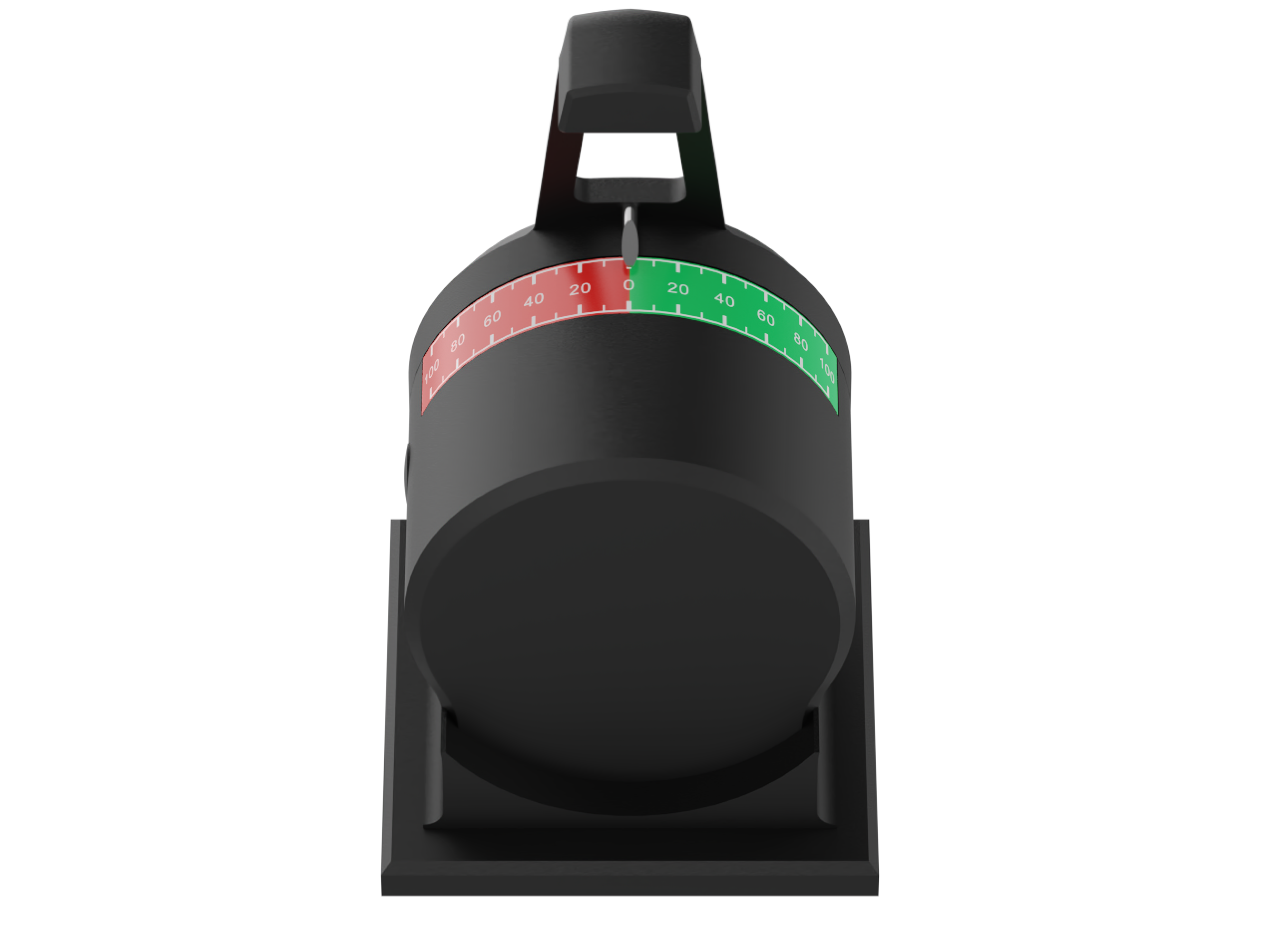

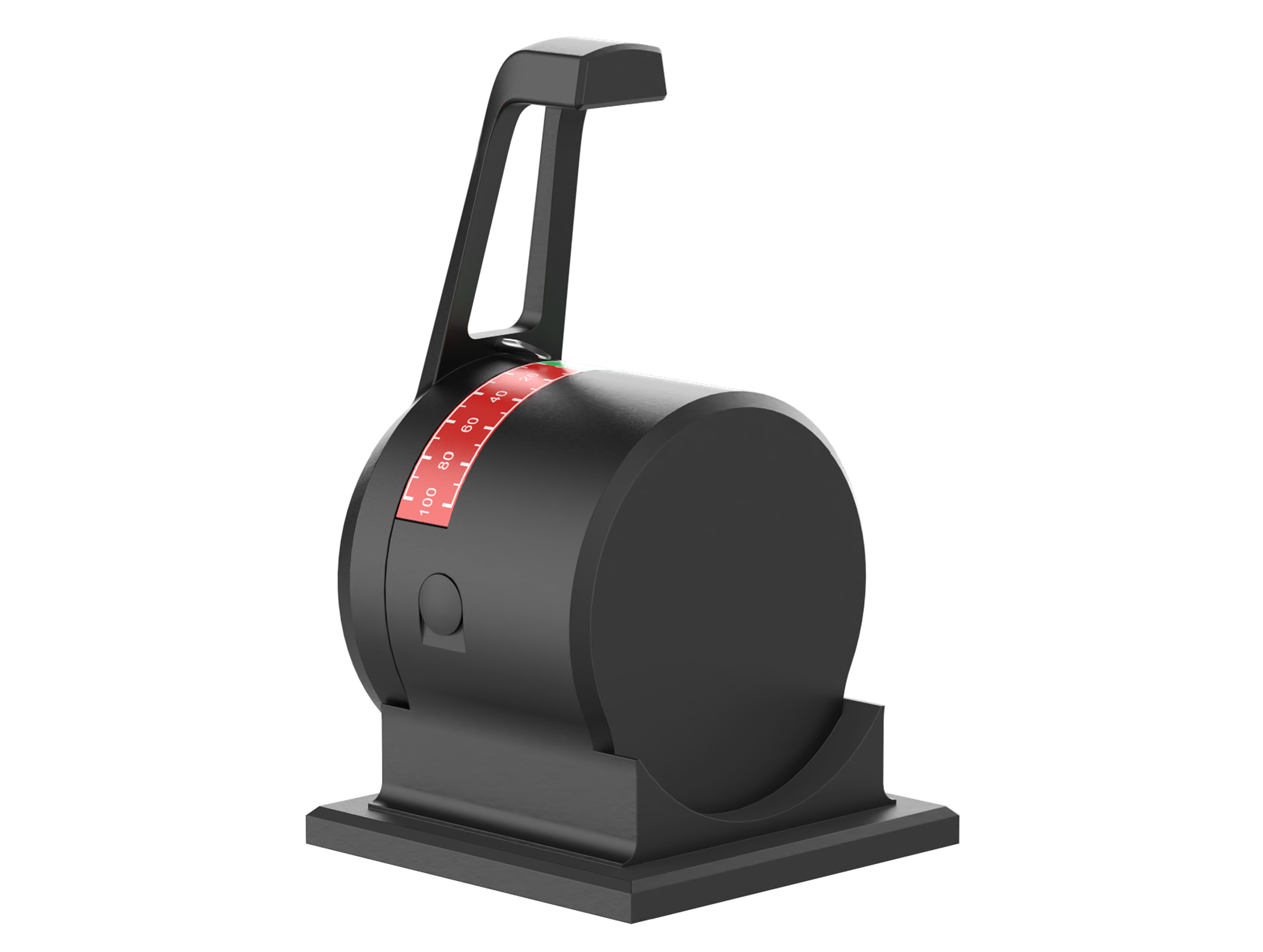

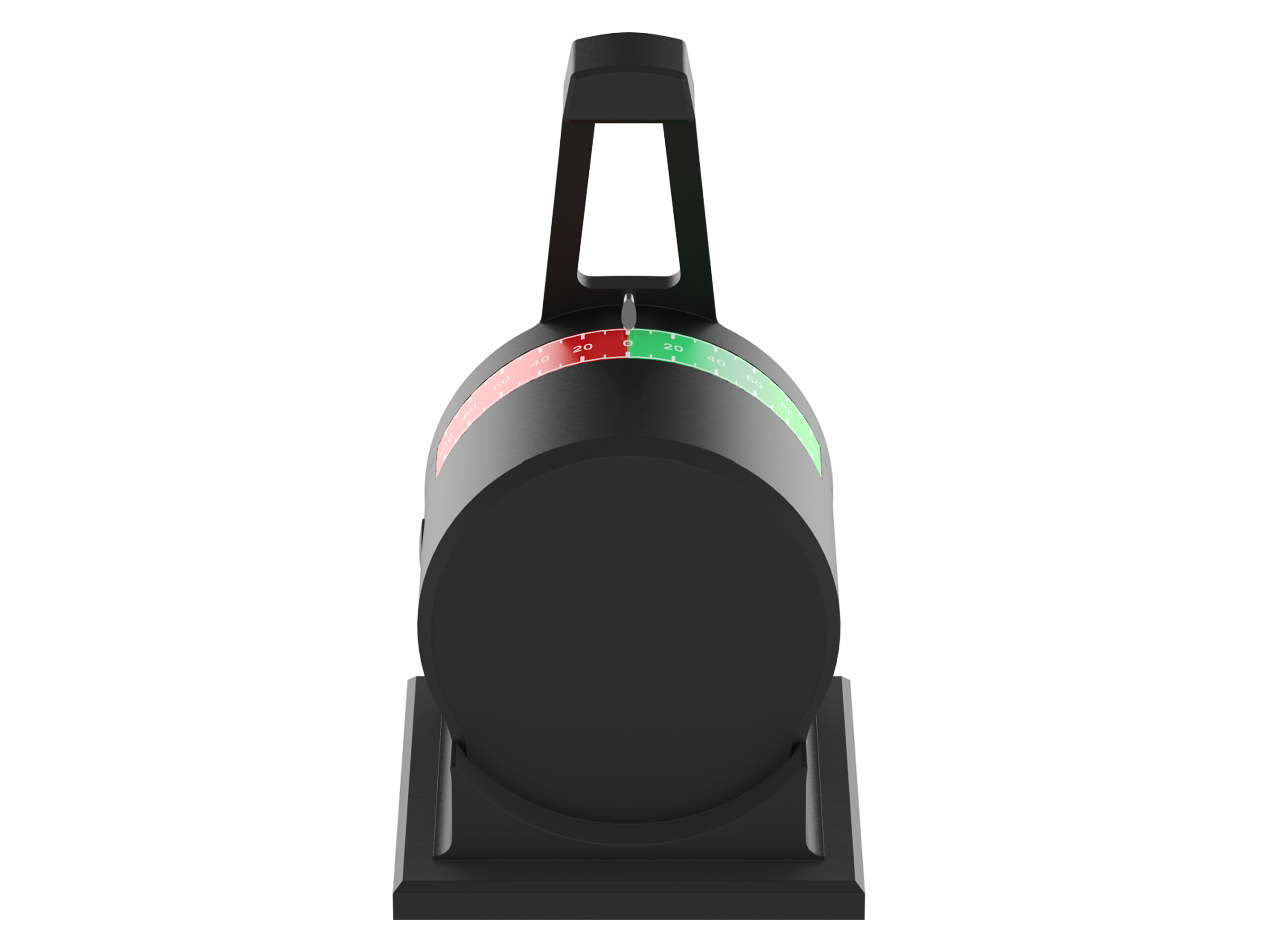

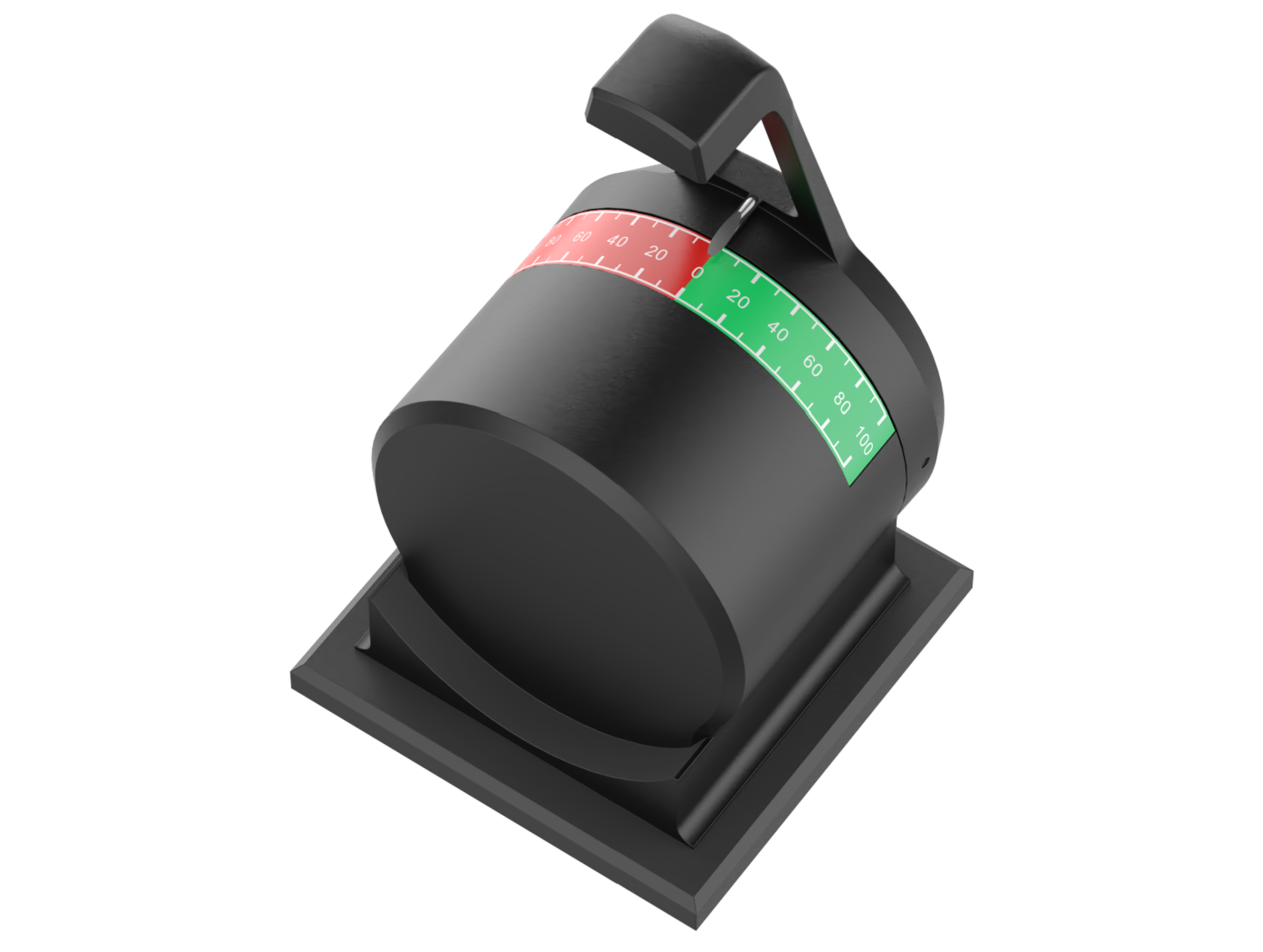

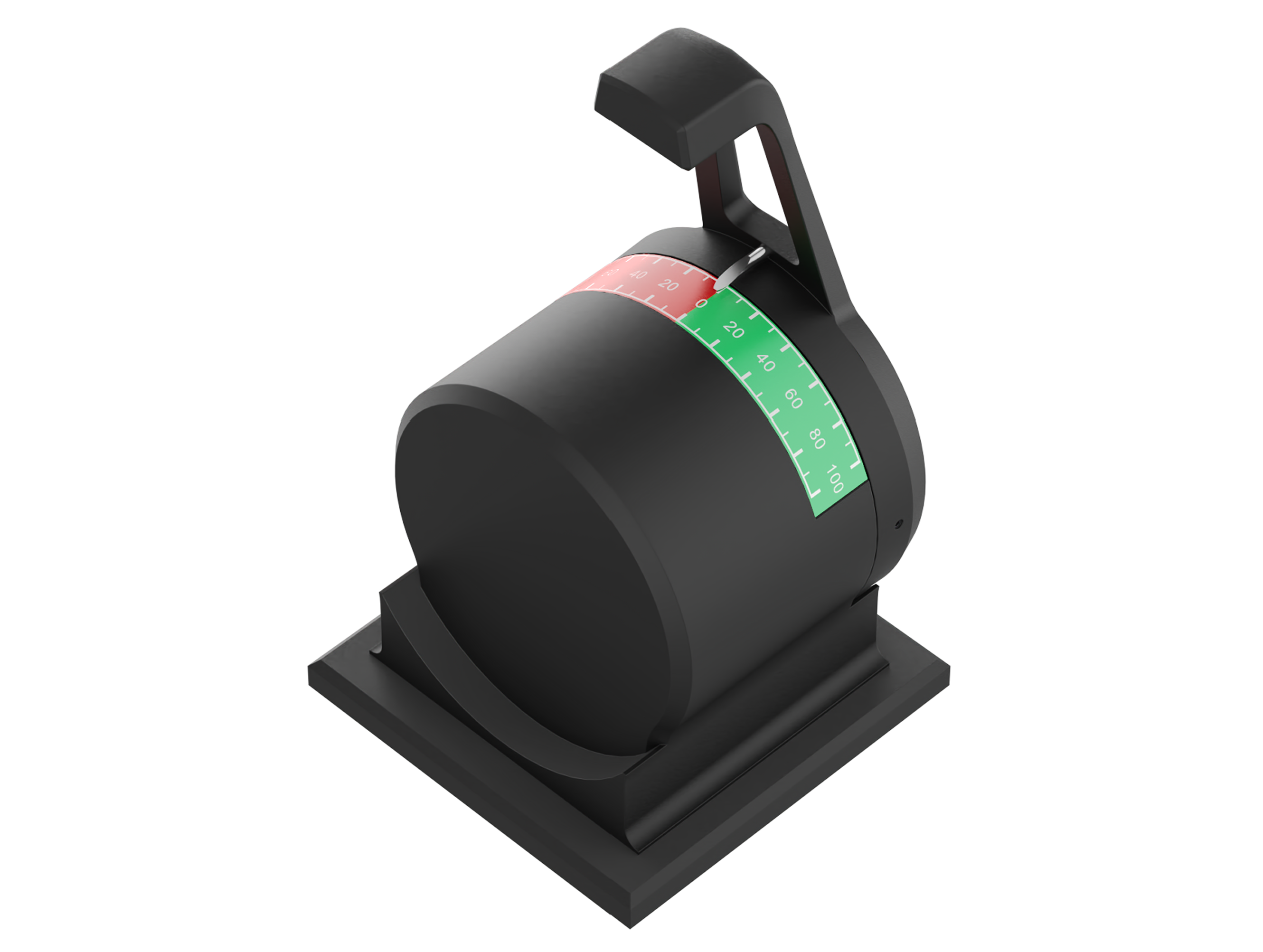

The WLF-90C thruster control lever is suitable for controlling the bow and stern side thrusters.
Made of all aluminum alloy material, the handle adopts black spray coating, the scale backlight indication, adjustable control damping and gear feedback,
Contact Us +86 13186888051

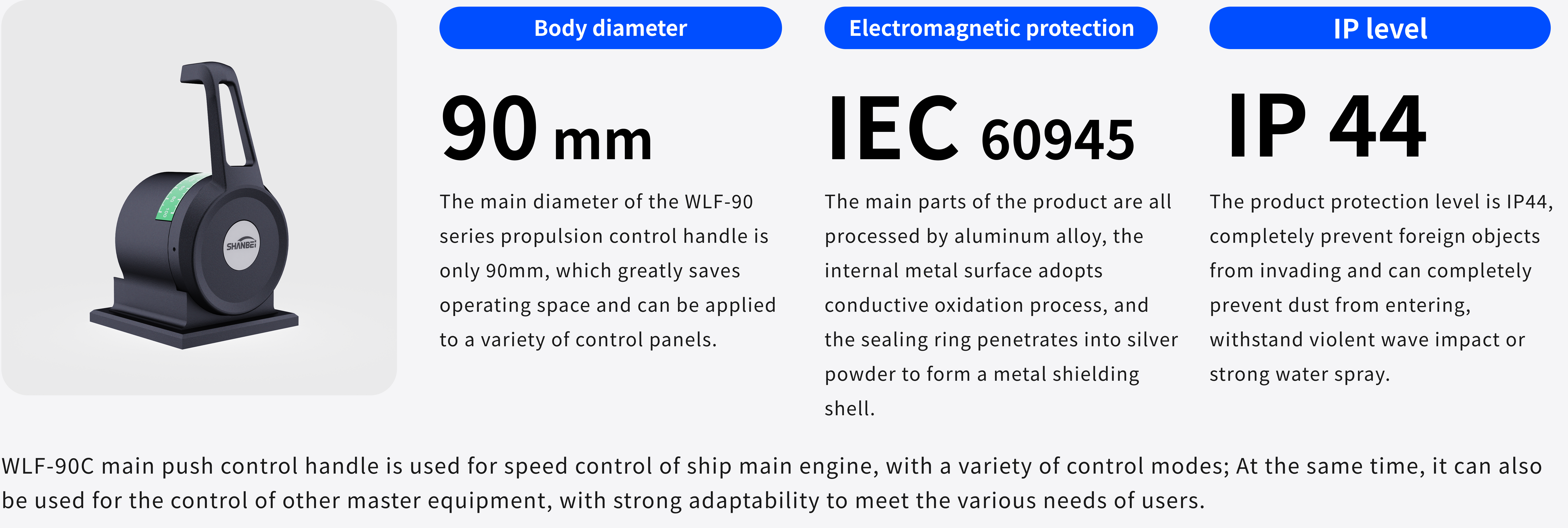

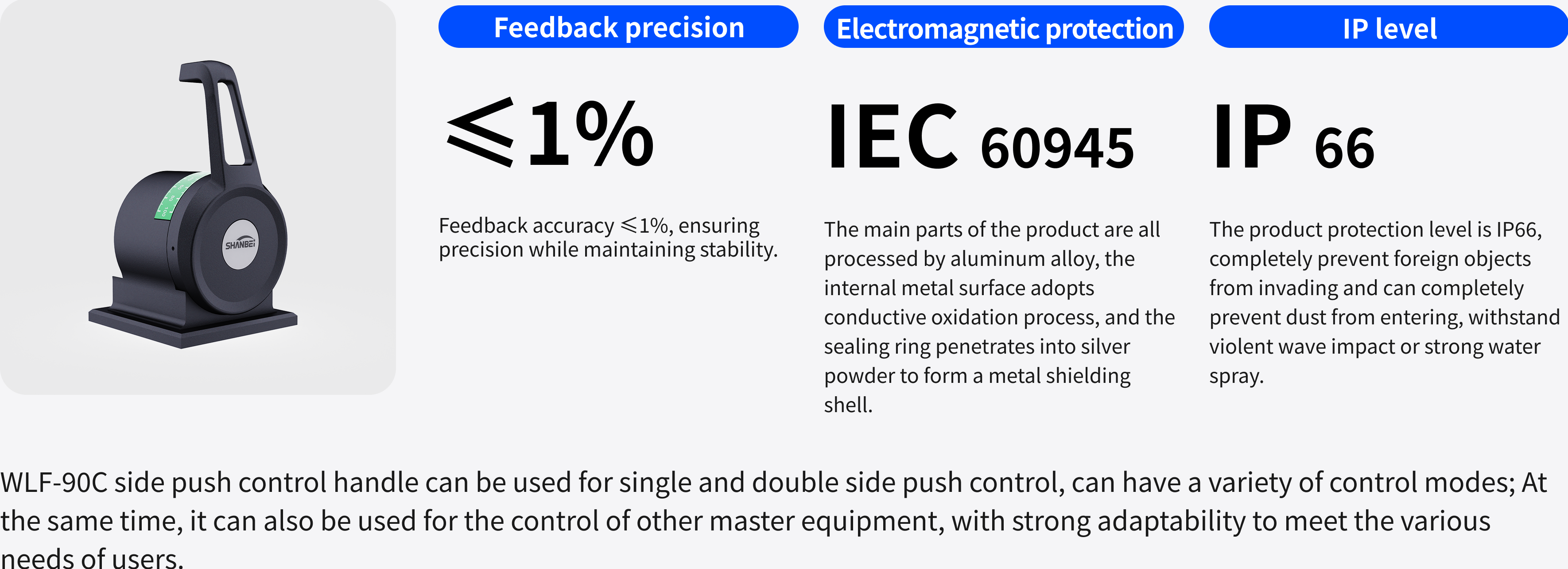

FEATURES
PARAMETER
-
Supply voltage18~26VDC
-
Potentiometer5KΩ
-
Operating range±60°
-
IP leverIP56
-
Weight1.5~4.0kg(varies with configuration)
-
Test standardIEC60945
-
Operating temperature5℃~55℃
-
Install4×M4 stud, panel thickness < 10mm
-
Wiring16 1/0 terminal block
OPTIONS
-
StyleStandardShort
-
TypeDouble C2Upper C1Lower C3
-
ScalePercentage
-
Rotation range±60°0~60°
-
Clack feedbackNeutral only11 positions
-
Output signal5K potentiometer4~20mA
-
Backlight adjustment0~24VDimmer
-
LocationFWDAFT
ACCESSORIES
Lighting element
Mounting panel
Driver circuit board
Graduated film
