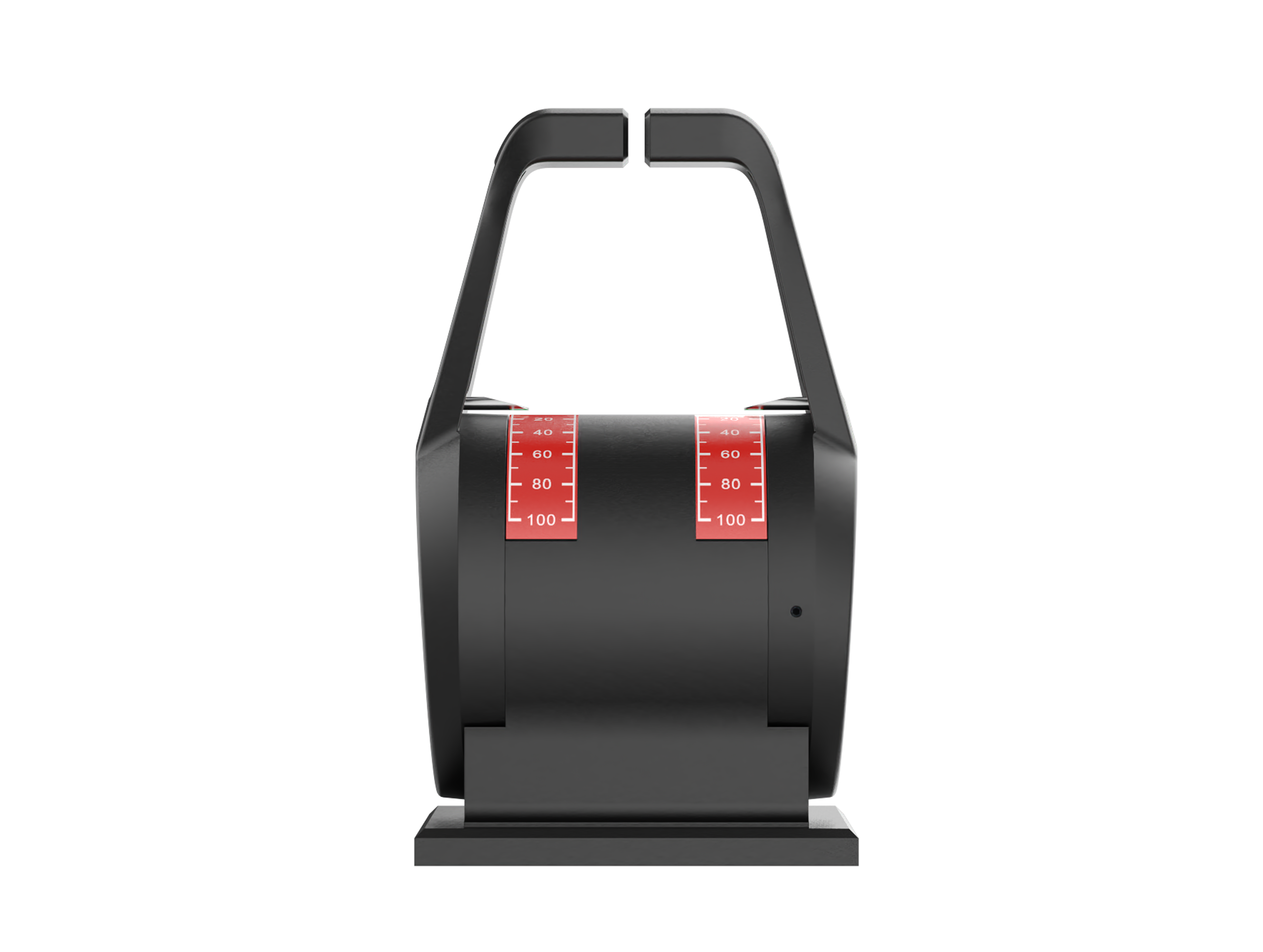

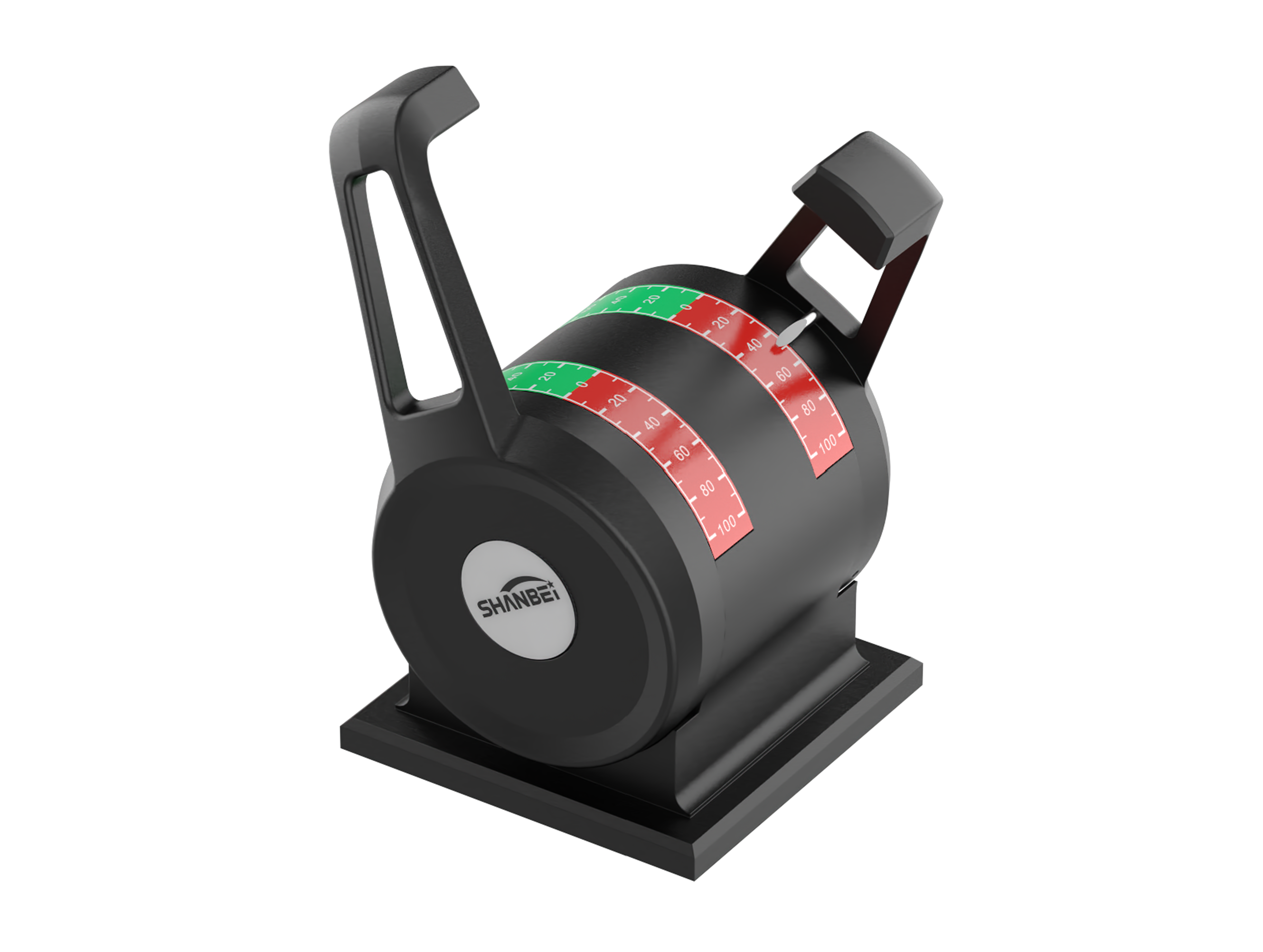

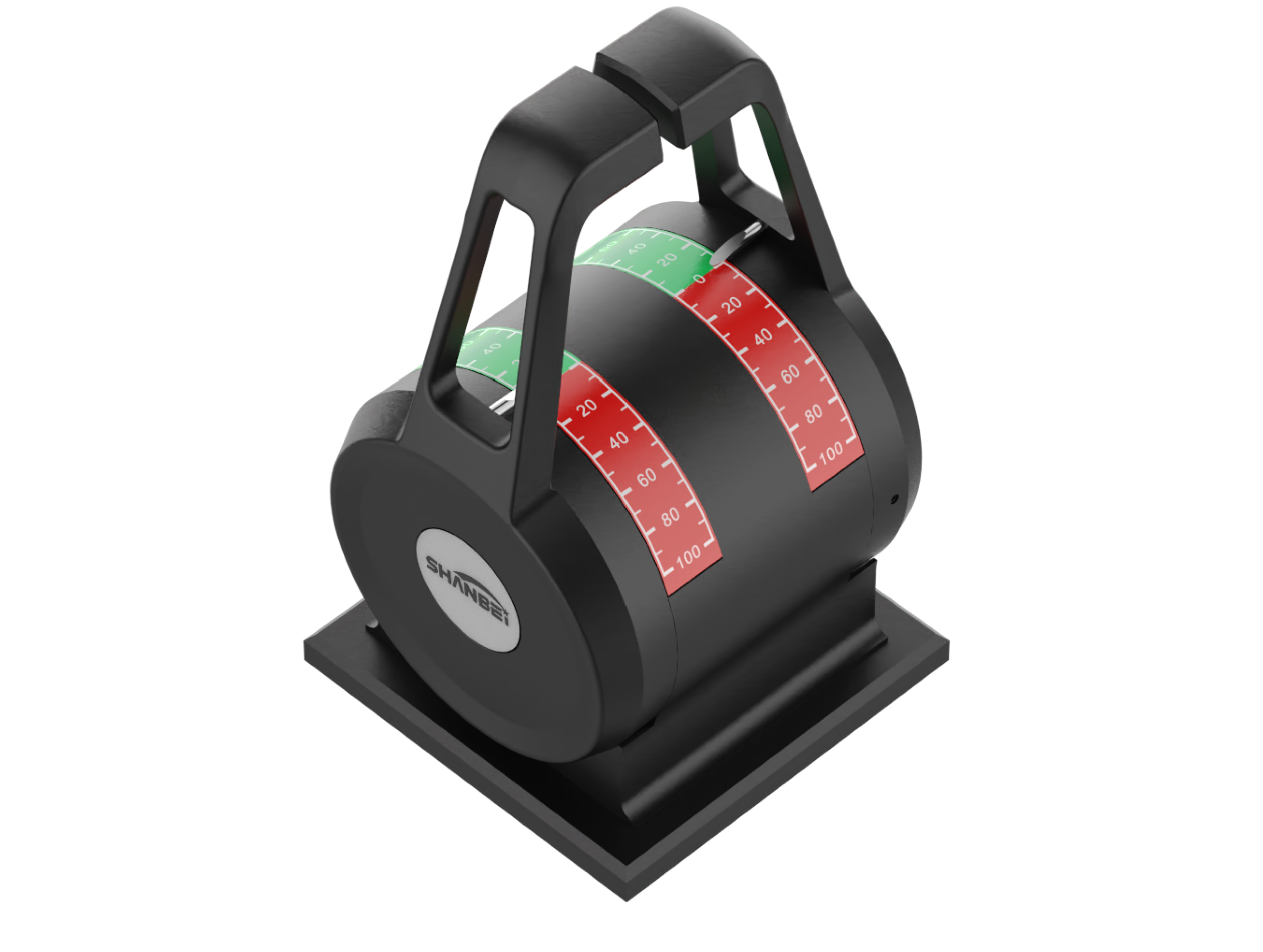

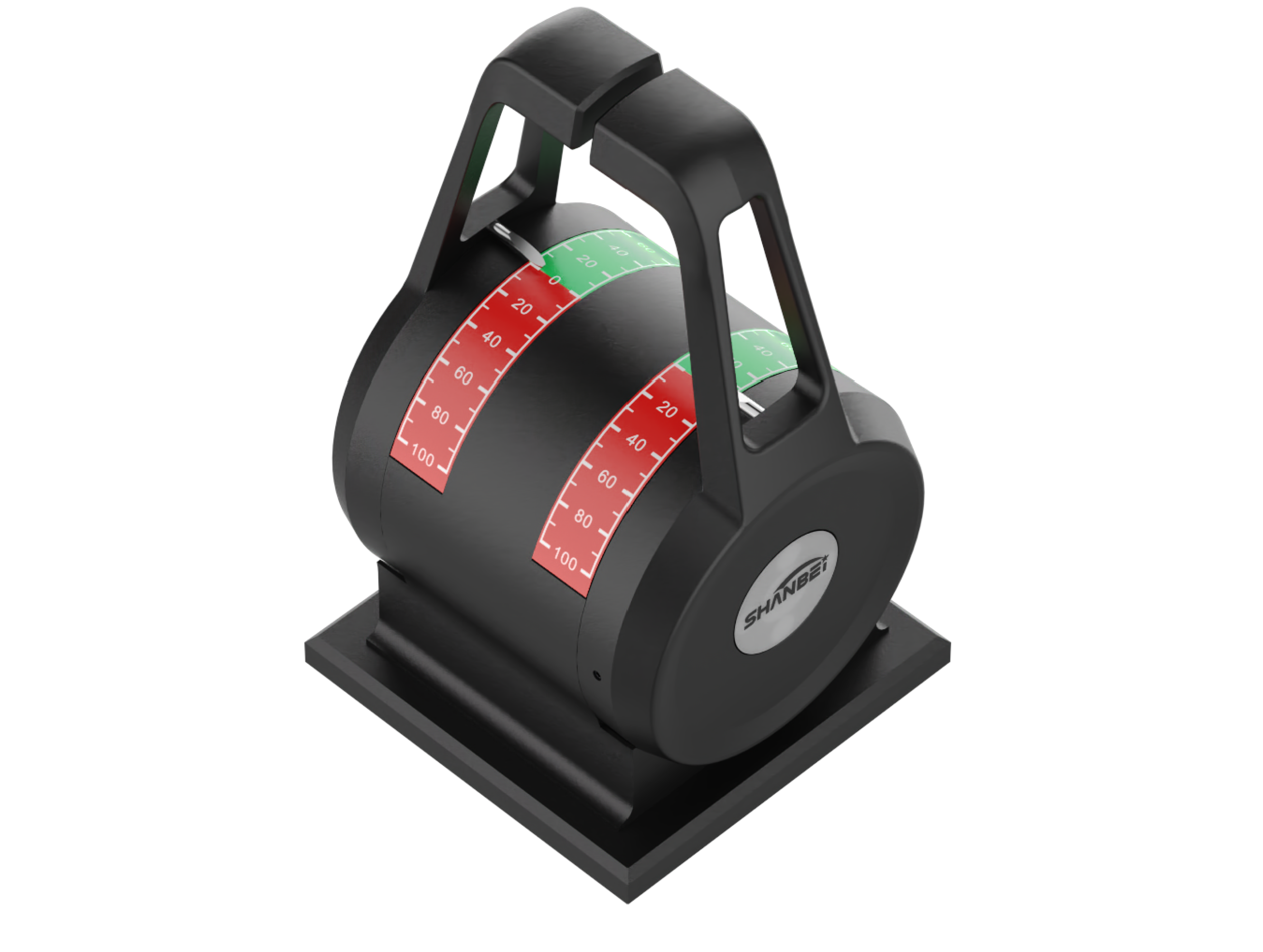

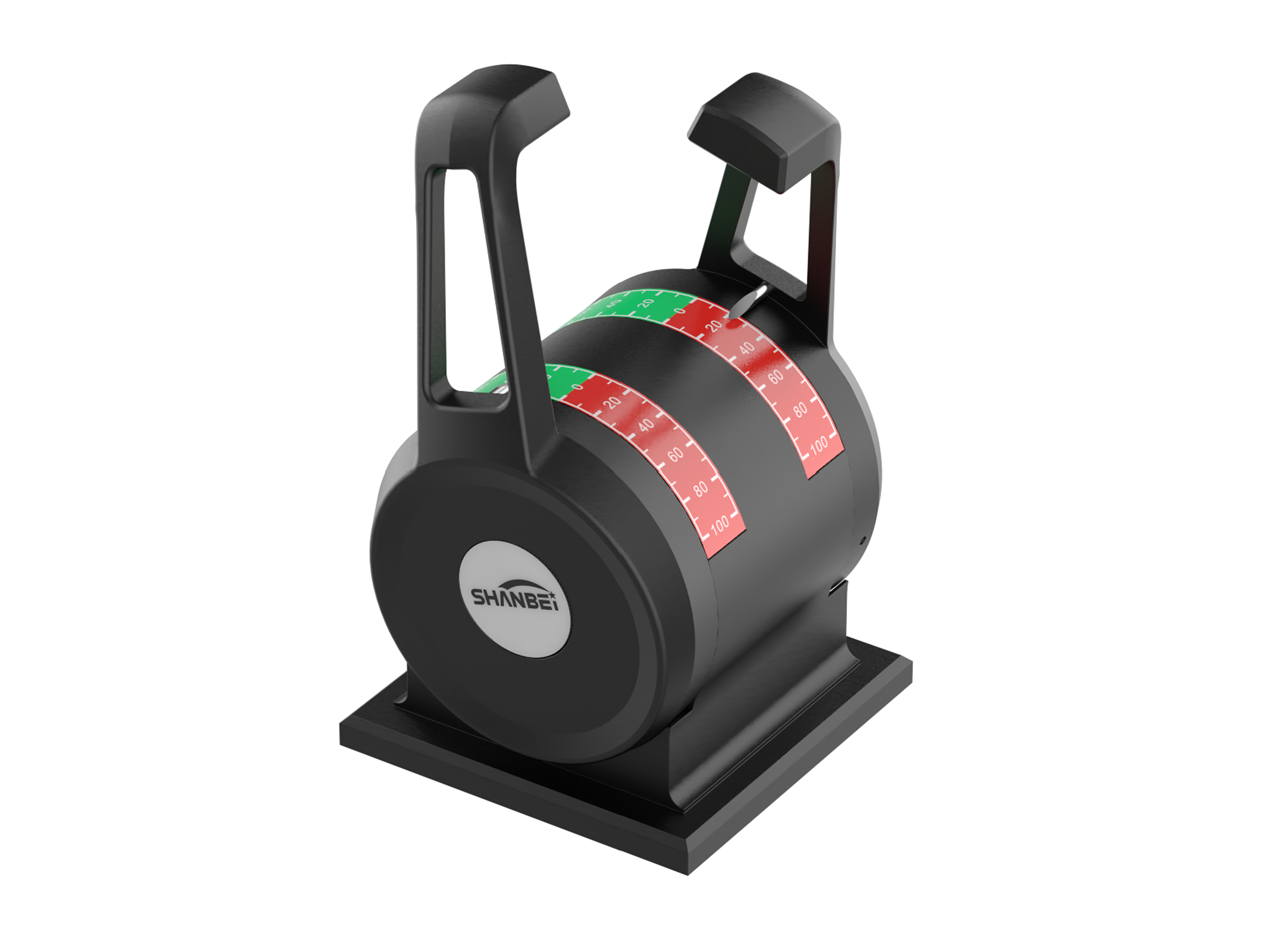

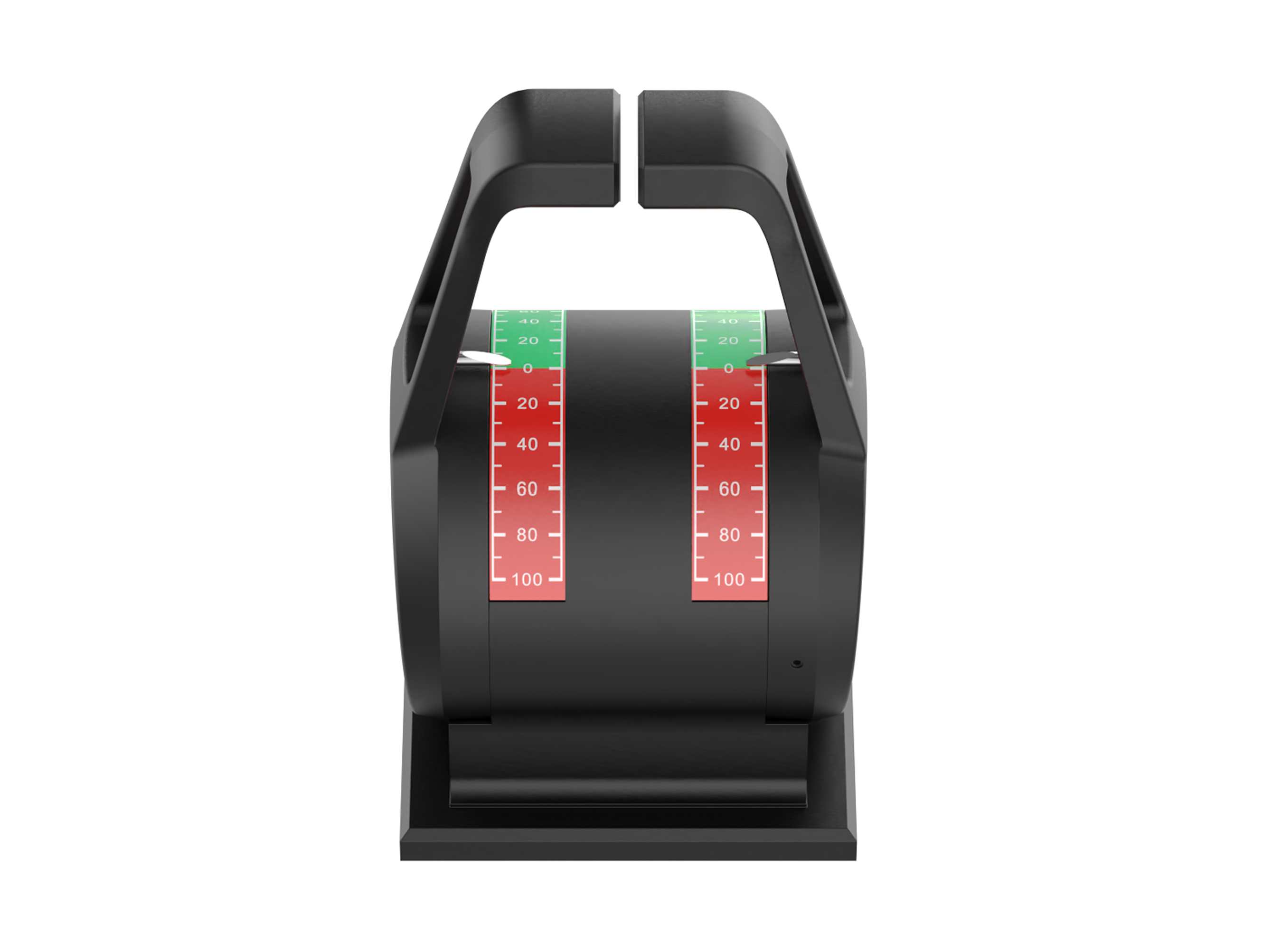

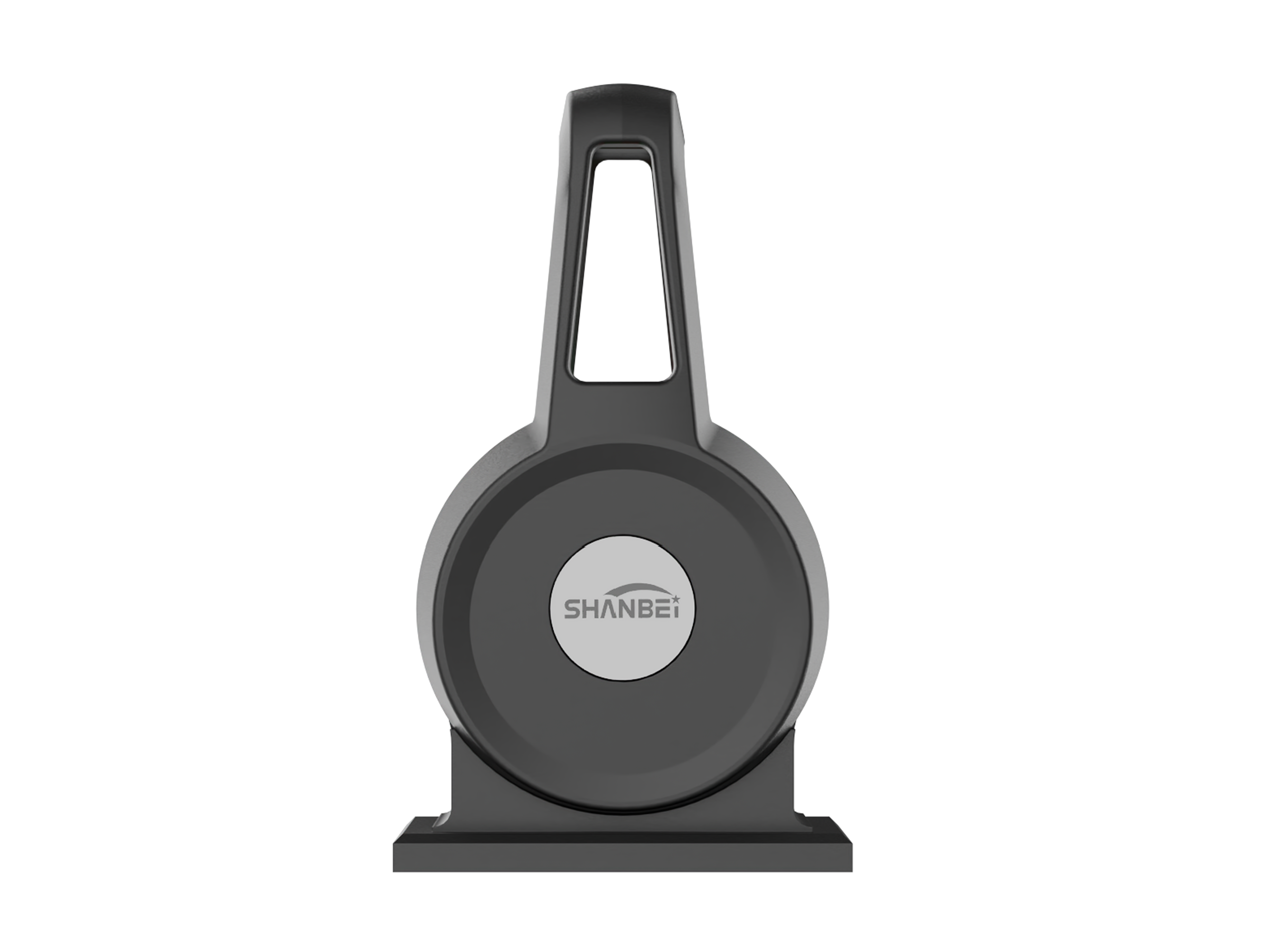

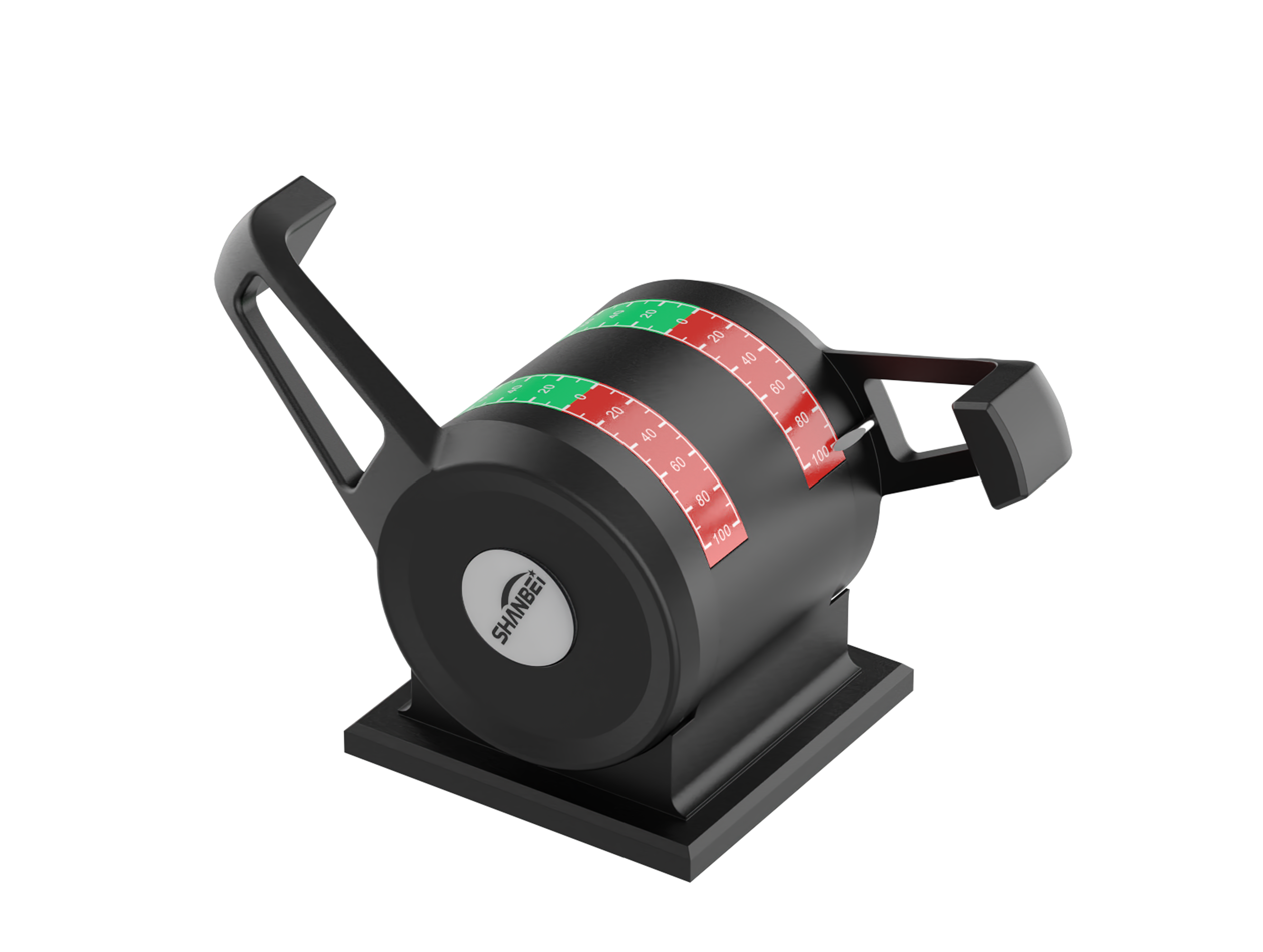

WLF-90
Propulsion control lever

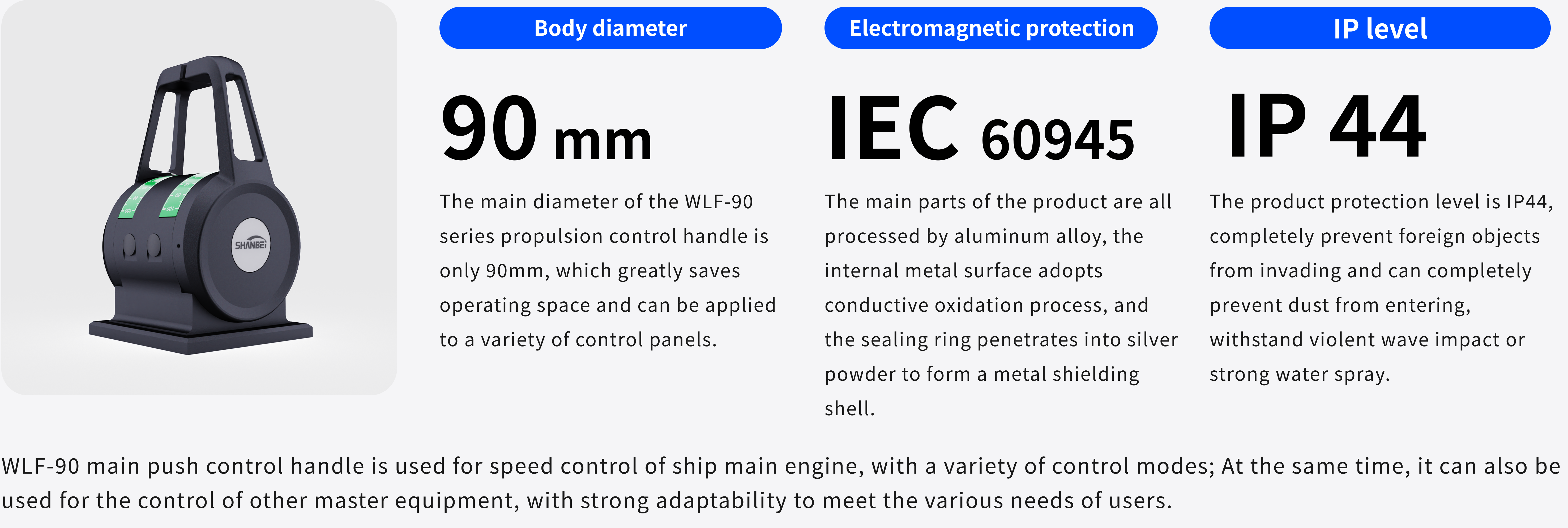

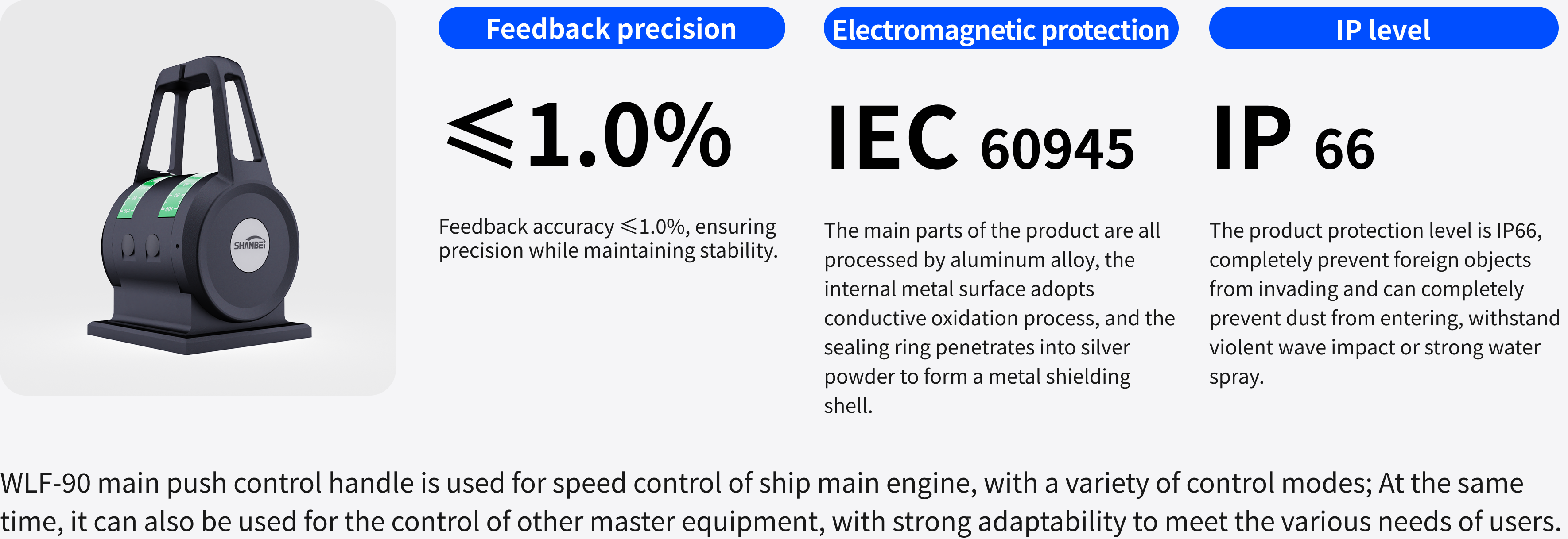

The WLF-90 propusion control lever is used for the speed control of the ship main engine, and can also be used for the control of other main equipment.
Contact Us +86 13186888051
FEATURES
PARAMETER
-
Supply voltage18~26VDC
-
Potentiometer5KΩ
-
Operating range±60°
-
IP leverIP56
-
Weight1.5~4.0kg(varies with configuration)
-
Test standardIEC60945
-
Operating temperature5℃~55℃
-
Install4×M4 stud, panel thickness < 10mm
-
Wiring16 1/0 terminal block
CUSTOMIZATION
-
TypeLeft propulsionRight propulsionDouble propulsion
-
ScalePercentChineseEnglish
-
Rotation range±60°0~60°-15~60°
-
Gear feedbackNeutral onlyEach file has feedback
-
Output signal5K potentiometer4~20mAForward and reverse passive switch
-
Backlight adjustment0~5V0~24VPWM
-
Motor shaft synchronizationYesNo
-
Driving modeFWDAFT
ACCESSORIES
Mounting panel
Driver circuit board
Graduated film
Dimmer button
